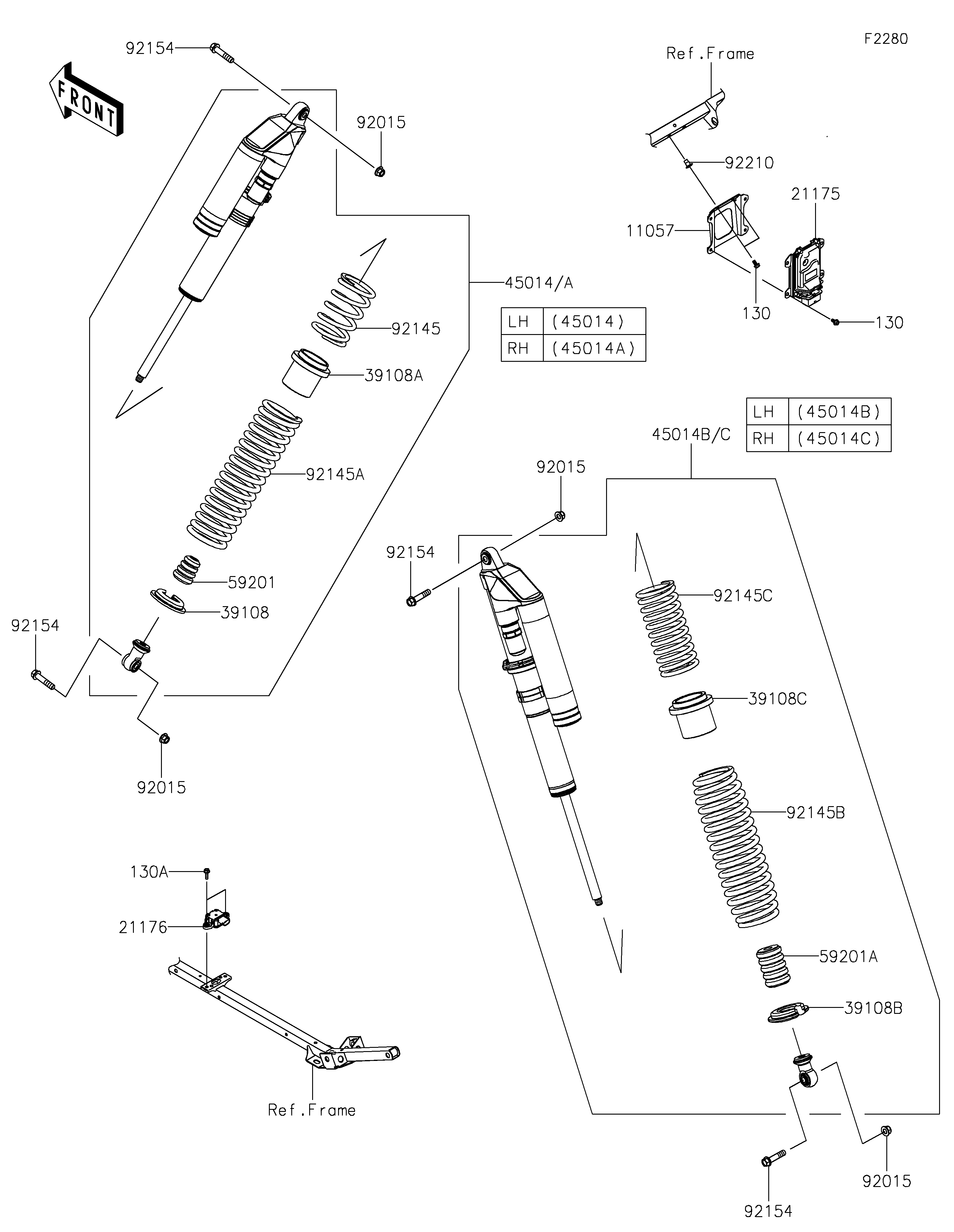

2025 Teryx KRX4 1000 eS - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
21176
39108
39108A
39108B
39108C
45014
45014A
45014B
45014C
59201
59201A
92015
92015
92015
92015
92145
92145A
92145B
92145C
92154
92154
92154
92154
92210
130
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SDC-ECU 11057 11057-7671 1
CONTROL UNIT-ELECTRONIC,SDC 21175 21175-1760 1
SENSOR,IMU 21176 21176-0998 1
RETAINER-SPRING 39108 39108-0015 2
RETAINER-SPRING 39108A 39108-0016 2
RETAINER-SPRING 39108B 39108-0017 2
RETAINER-SPRING 39108C 39108-0018 2
SHOCKABSORBER,FR,LH,SILVER 45014 45014-0746-42P 1
SHOCKABSORBER,FR,RH,SILVER 45014A 45014-0747-42P 1
SHOCKABSORBER,RR,LH,SILVER 45014B 45014-0748-42P 1
SHOCKABSORBER,RR,RH,SILVER 45014C 45014-0749-42P 1
BUMPER 59201 59201-0004 2
BUMPER 59201A 59201-0005 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
SPRING,TENDER,SILVER 92145 92145-2290-42P 2
SPRING,MAIN,SILVER 92145A 92145-2291-42P 2
SPRING,TENDER,SILVER 92145B 92145-2292-42P 2
SPRING,MAIN,SILVER 92145C 92145-2293-42P 2
BOLT,FLANGED,12X55 92154 92154-0289 8
NUT,LARGE FLANGE,6MM,L=16.5 92210 92210-1623 2
BOLT-FLANGED,6X12 130 130BA0612 6
BOLT-FLANGED,6X18 130A 130BA0618 2
