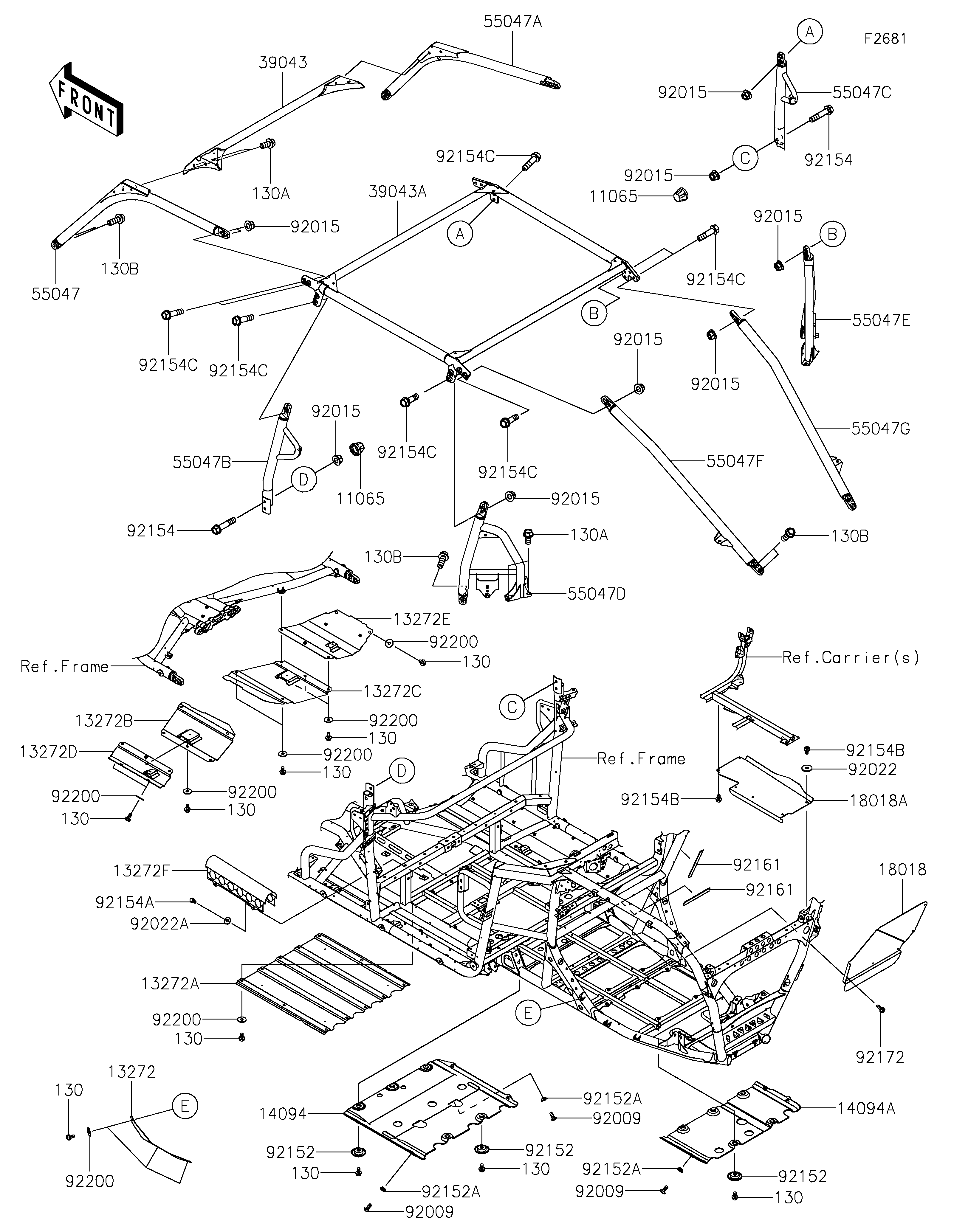

2025 Teryx KRX4 1000 eS - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13272
13272A
13272B
13272C
13272D
13272E
13272F
14094
14094A
18018
18018A
39043
39043A
55047
55047A
55047B
55047C
55047D
55047E
55047F
55047G
92009
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92022
92022A
92152
92152
92152
92152A
92152A
92152A
92154
92154
92154A
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92161
92161
92172
92200
92200
92200
92200
92200
92200
92200
130
130
130
130
130
130
130
130
130
130
130A
130A
130B
130B
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0751 4
PLATE,CVT COVER 13272 13272-3797 1
PLATE,SKID,CNT 13272A 13272-3963 1
PLATE,SKID,FR,CNT,LH 13272B 13272-4328 1
PLATE,SKID,FR,CNT,RH 13272C 13272-4329 1
PLATE,SKID,FR,LH 13272D 13272-4330 1
PLATE,SKID,FR,RH 13272E 13272-4331 1
PLATE,DRIVE SHAFT 13272F 13272-7108 1
COVER,SKID,CNT 14094 14094-0040 1
COVER,SKID,RR 14094A 14094-0041 1
PLATE-HEAT GUARD 18018 18018-0616 1
PLATE-HEAT GUARD 18018A 18018-0646 1
CROSSMEMBER-COMP,FR,BEIGE 39043 39043-0033-75L 1
CROSSMEMBER-COMP,RR,BEIGE 39043A 39043-0034-75L 1
BAR-COMP,A-PILLAR,LH,BEIGE 55047 55047-0399-75L 1
BAR-COMP,A-PILLAR,RH,BEIGE 55047A 55047-0400-75L 1
BAR-COMP,B-PILLAR,LH,BEIGE 55047B 55047-0401-75L 1
BAR-COMP,B-PILLAR,RH,BEIGE 55047C 55047-0402-75L 1
BAR-COMP,C-PILLAR,LH,BEIGE 55047D 55047-0403-75L 1
BAR-COMP,C-PILLAR,RH,BEIGE 55047E 55047-0404-75L 1
BAR-COMP,D-PILLAR,LH,BEIGE 55047F 55047-0405-75L 1
BAR-COMP,D-PILLAR,RH,BEIGE 55047G 55047-0406-75L 1
SCREW,TAPPING,6X16 92009 92009-1166 10
NUT,LOCK,FLANGED,12MM 92015 92015-1433 20
WASHER,6.5X24X2 92022 92022-1690 1
WASHER 92022A 92022-2247 4
COLLAR 92152 92152-0784 10
COLLAR,6.3X9.5X4.1 92152A 92152-1571 10
BOLT,FLANGED,12X55 92154 92154-0836 4
BOLT,FLANGED,6X12 92154A 92154-2922 4
BOLT,FLANGED,6X10 92154B 92154-4159 5
BOLT,FLANGED,12X45 92154C 92154-7076 16
DAMPER,10X85X1 92161 92161-1964 3
SCREW,TAPPING,6X16 92172 92172-0869 5
WASHER,6.5X20X1.6 92200 92200-0283 29
BOLT-FLANGED,6X12 130 130CA0612 39
BOLT-FLANGED,12X25 130A 130CA1225 8
BOLT-FLANGED,12X35 130B 130CA1235 12
