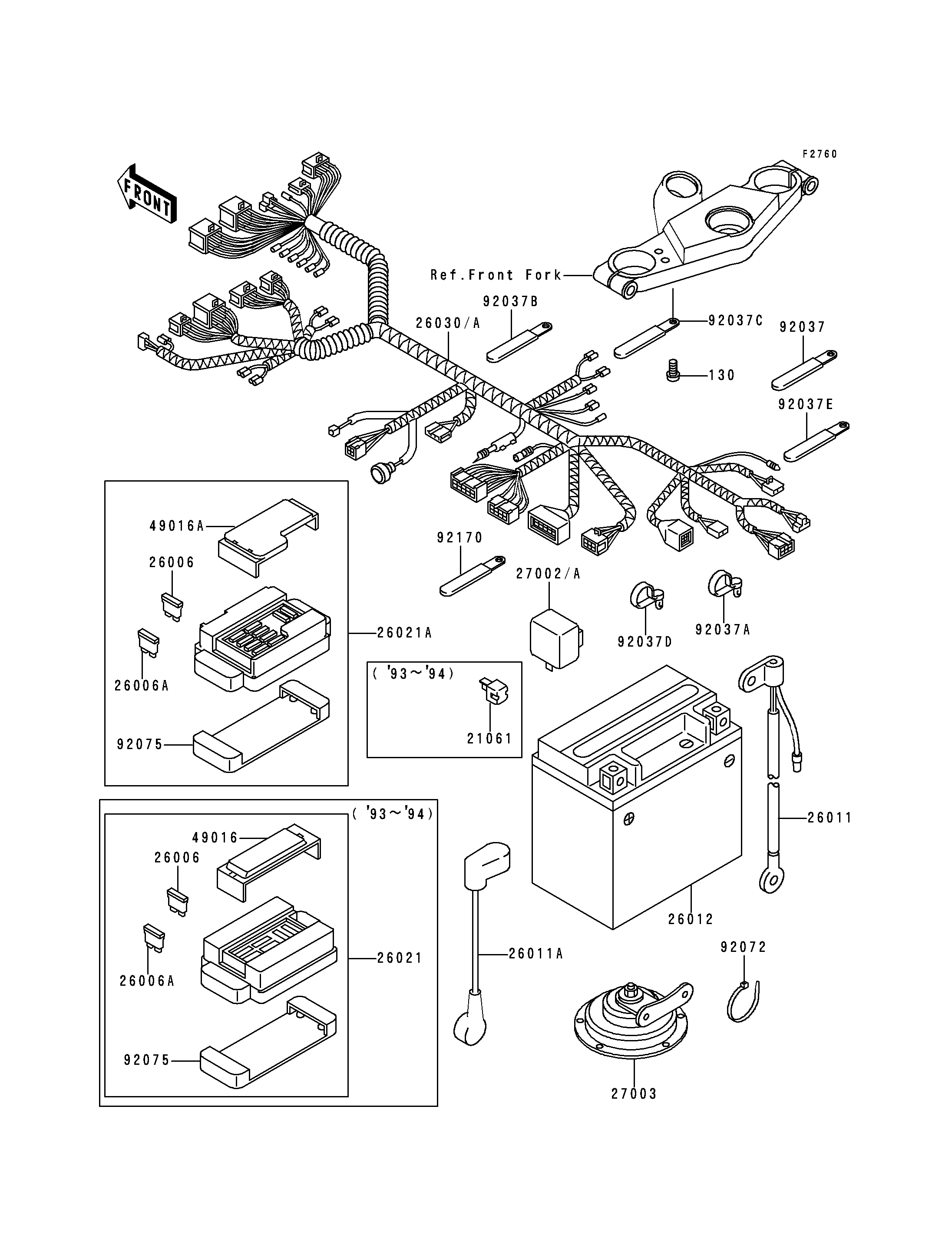

1994 Ninja® ZX™-6 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
21061
26006
26006
26006A
26006A
26011
26011A
26012
26021
26030
27002
27003
49016
92037
92037B
92037C
92037D
92037E
92072
92075
92075
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
RECTIFIER 21061 21061-1003 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 5
WIRE-LEAD,BATTERY(-) 26011 26011-1429 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1540 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-1281 1
JUNCTION BOX 26021 26021-1077 1
HARNESS,MAIN 26030 26030-1171 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1060 1
HORN 27003 27003-1316 1
COVER-SEAL,FUSE 49016 49016-1125 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 3
CLAMP,SPEED,L=43 92037B 92037-1290 1
CLAMP,L=45 92037C 92037-1539 1
CLAMP,WIRING HARNESS 92037D 92037-1877 3
CLAMP,SPEED,L=80.5 92037E 92037-1903 1
BAND,L=185 92072 92072-1195 8
DAMPER,JUNCTION BOX 92075 92075-1688 1
CLAMP,L=150 92170 92170-1114 1
