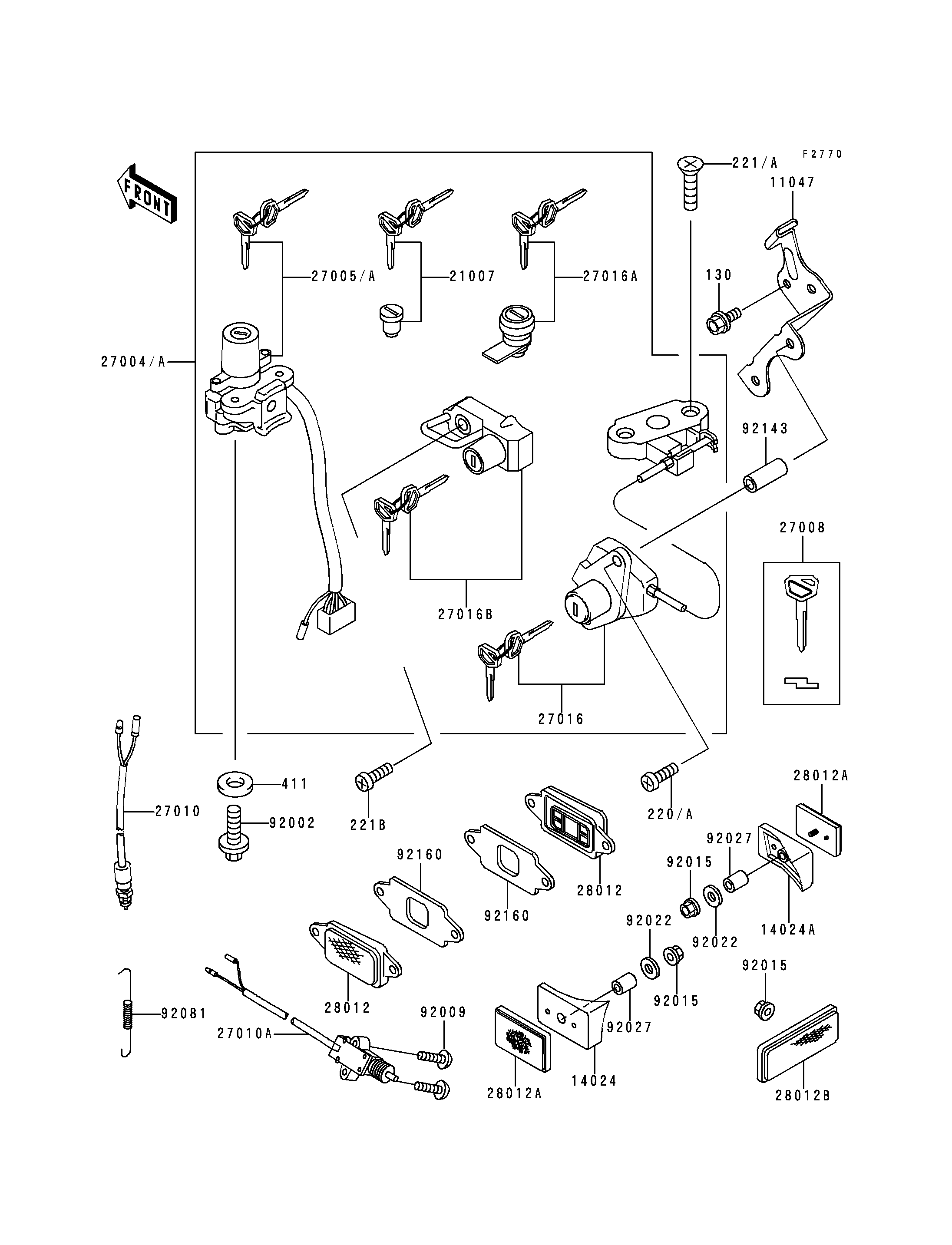

1994 Ninja® ZX™-6 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
220A
221A
221B
411
11047
14024
14024A
21007
27004A
27005A
27008
27010
27010A
27016
27016A
27016B
28012
28012
28012A
28012A
28012B
92002
92009
92015
92015
92015
92022
92022
92027
92027
92081
92143
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
SCREW-PAN-CROS,6X30,BLACK 220A 220C0630 2
SCREW-CSK-CROS 221A 221C0620 2
SCREW-CSK-CROS,6X30 221B 221C0630 1
WASHER-PLAIN,6MM 411 411E0600 2
BRACKET,SEAT LOCK 11047 11047-1885 1
COVER,REFLECTOR,LH 14024 14024-1940 1
COVER,REFLECTOR,RH 14024A 14024-1941 1
ROTOR,LOCK,TANK CAP 21007 21007-5035 1
SWITCH-ASSY 27004A 27004-5478 1
SWITCH-ASSY-IGNITION 27005A 27005-1179 1
KEY-LOCK,BLANK 27008 27008-1170 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-1093 1
SWITCH,SIDE STAND 27010A 27010-1226 1
LOCK-ASSY,SEAT 27016 27016-5196 1
LOCK-ASSY,PAD 27016A 27016-5198 1
LOCK-ASSY,HELMET 27016B 27016-5207 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-1068 2
REFLECTOR-REFLEX,RR 28012A 28012-1072 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BOLT,TORX,6X16 92002 92002-1333 2
SCREW,5X22 92009 92009-1492 2
NUT,FLANGED,5MM 92015 92015-1259 3
WASHER,5.2X16X1.2 92022 92022-263 2
COLLAR,5X8X14.5 92027 92027-1789 2
SPRING,BRAKE LAMP SWITCH 92081 92081-1704 1
COLLAR,6.5X9.5X17 92143 92143-1408 2
DAMPER,REFLECTOR 92160 92160-1192 2
