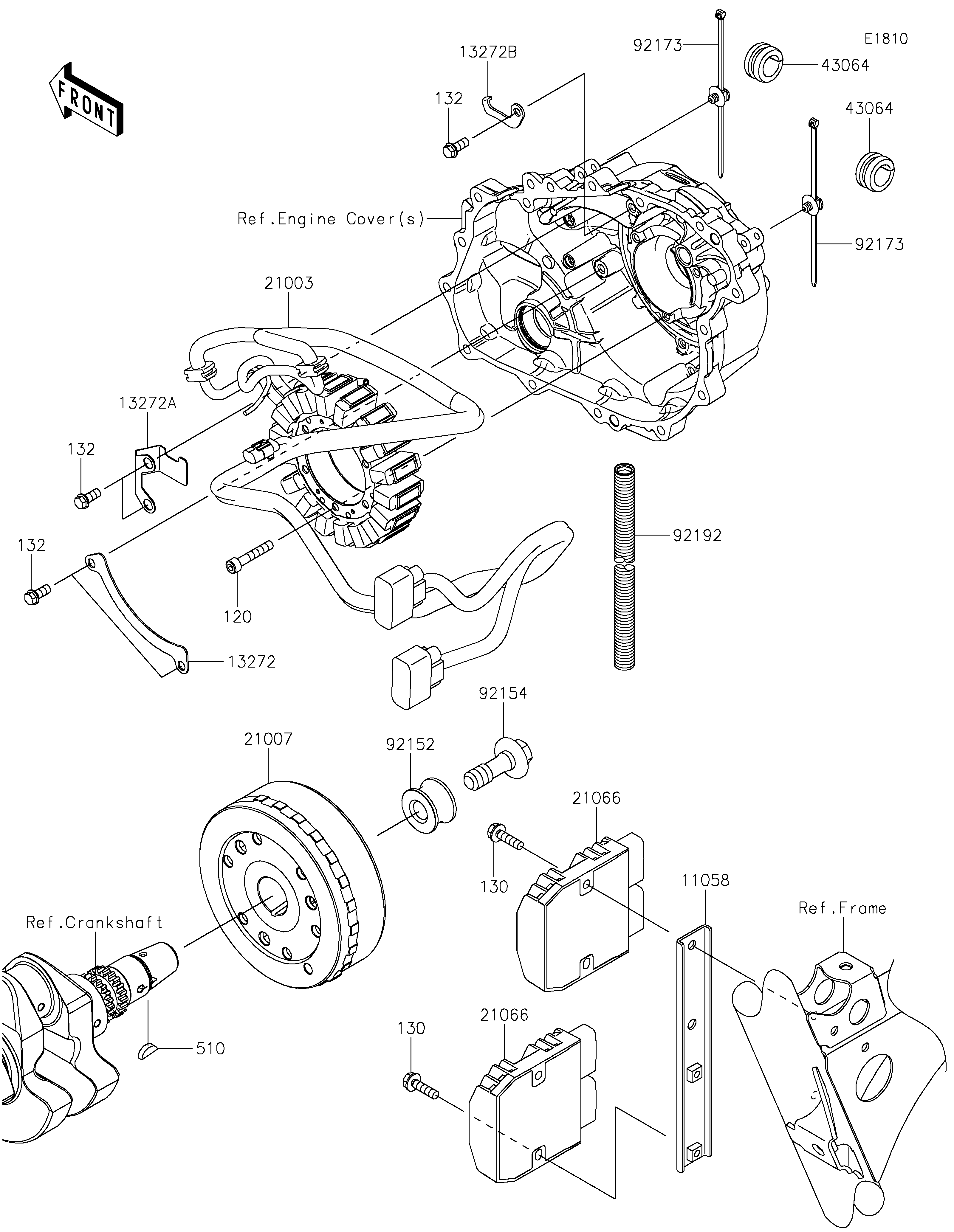

2025 Teryx KRX 1000 Lifted Edition - Generator
11058
13272
13272A
13272B
21003
21007
21066
21066
43064
43064
92152
92154
92173
92173
92192
120
130
130
132
132
132
510
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-1382 | 1 | ||
| PLATE,LEAD WIRE | 13272 | 13272-4318 | 1 | ||
| PLATE,LEAD WIRE | 13272A | 13272-7132 | 1 | ||
| PLATE,LEAD WIRE | 13272B | 13272-7133 | 1 | ||
| STATOR | 21003 | 21003-0228 | 1 | ||
| ROTOR | 21007 | 21007-0738 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0771 | 2 | ||
| GROMMET,HOSE CLAMP | 43064 | 43064-007 | 2 | ||
| COLLAR | 92152 | 92152-3816 | 1 | ||
| BOLT | 92154 | 92154-7265 | 1 | ||
| CLAMP | 92173 | 92173-2792 | 2 | ||
| TUBE,CONVOLUTED,10.7X14.1X140 | 92192 | 92192-2521 | 1 | ||
| BOLT-SOCKET,6X35 | 120 | 120CA0635 | 3 | ||
| BOLT-FLANGED,6X22 | 130 | 130BA0622 | 4 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 5 | ||
| KEY-WOODRUFF | 510 | 510A4200 | 1 |
| BRACKET | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,LEAD WIRE | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,LEAD WIRE | |
| REF # | 13272A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,LEAD WIRE | |
| REF # | 13272B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STATOR | |
| REF # | 21003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR-VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HOSE CLAMP | |
| REF # | 43064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,CONVOLUTED,10.7X14.1X140 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X35 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| KEY-WOODRUFF | |
| REF # | 510 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
