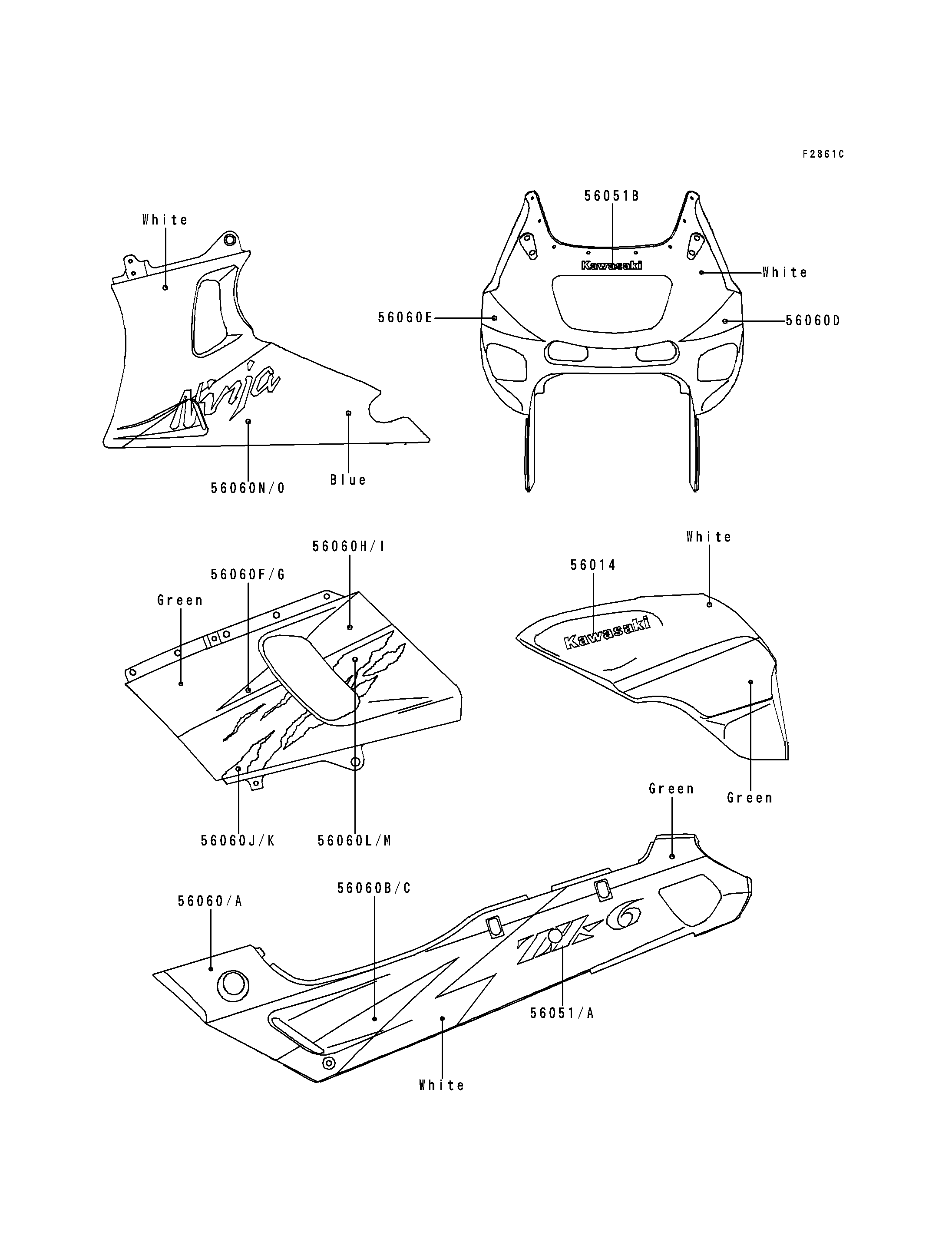

1994 Ninja® ZX™-6 - Decals(Green/White)(ZX600-E2/E3)

DOWNLOAD PDF
SELECT A NEW PART
56014
56051
56051A
56051B
56060
56060A
56060B
56060C
56060D
56060E
56060F
56060G
56060H
56060I
56060J
56060K
56060L
56060M
56060N
56060O
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1297 2
MARK,SIDE COVER,LH,ZX-6 56051 56051-1082 1
MARK,SIDE COVER,RH,ZX-6 56051A 56051-1083 1
MARK,KAWASAKI 56051B 56051-1084 1
PATTERN,SIDE COVER,UPP,LH 56060 56060-1864 1
PATTERN,SIDE COVER,UPP,RH 56060A 56060-1865 1
PATTERN,SIDE COVER,LH 56060B 56060-1866 1
PATTERN,SIDE COVER,RH 56060C 56060-1867 1
PATTERN,UPP COWLING,LH 56060D 56060-1868 1
PATTERN,UPP COWLING,RH 56060E 56060-1869 1
PATTERN,CNT COWLING,UPP,FR,LH 56060F 56060-1870 1
PATTERN,CNT COWLING,UPP,FR,RH 56060G 56060-1871 1
PATTERN,CNT COWLING,UPP,RR,LH 56060H 56060-1872 1
PATTERN,CNT COWLING,UPP,RR,RH 56060I 56060-1873 1
PATTERN,CNT COWLING,LWR,FR,LH 56060J 56060-1874 1
PATTERN,CNT COWLING,LWR,FR,RH 56060K 56060-1875 1
PATTERN,CNT COWLING,LWR,RR,LH 56060L 56060-1876 1
PATTERN,CNT COWLING,LWR,RR,RH 56060M 56060-1877 1
PATTERN,LWR COWLING,LH 56060N 56060-1878 1
PATTERN,LWR COWLING,RH 56060O 56060-1879 1
