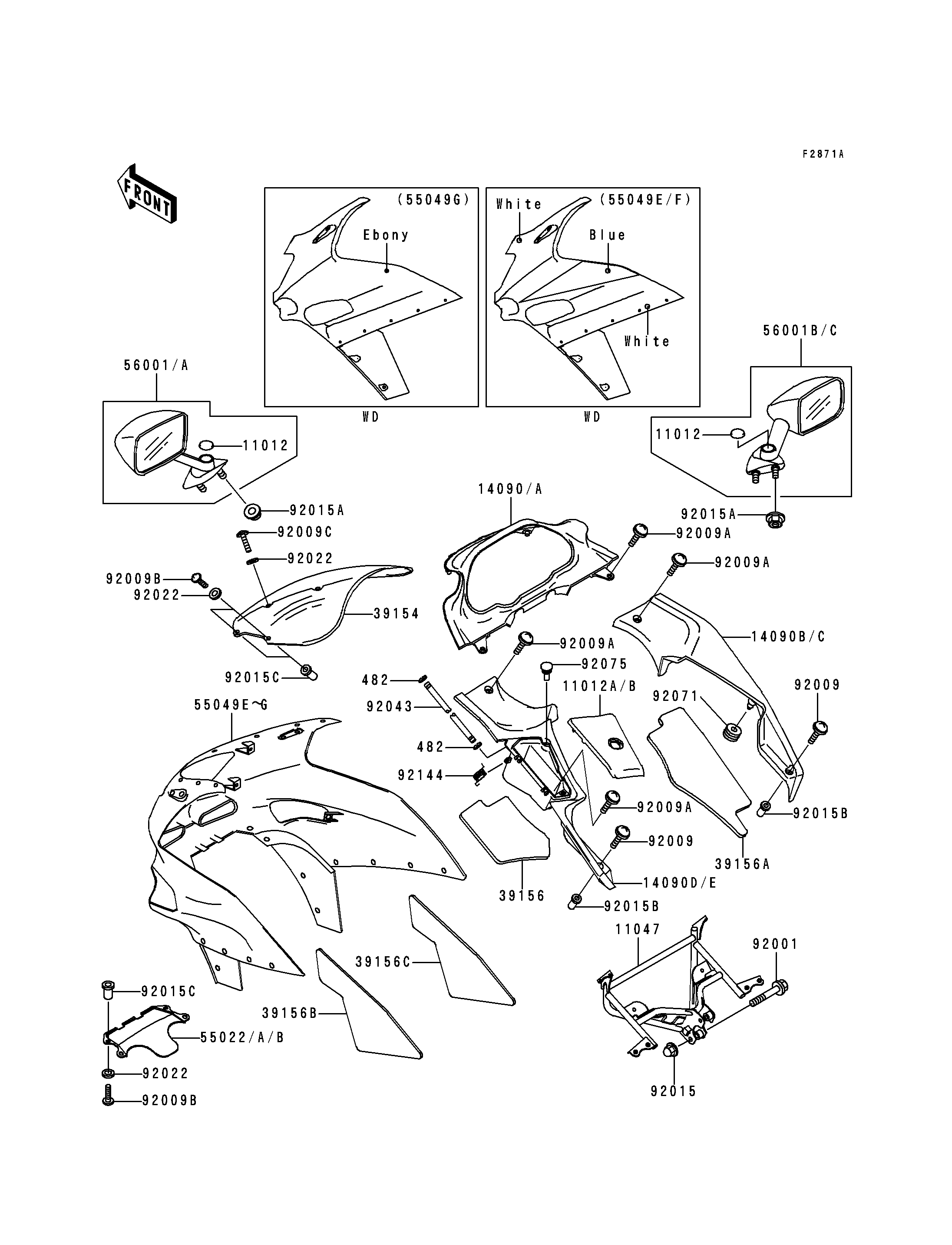

1994 Ninja® ZX™-6 - Cowling(ZX600-E2)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11047
11047
39154
39154
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
55022A
55022A
55049G
55049G
482
482
482
482
56001
56001
56001A
56001A
56001B
56001B
56001C
56001C
92001
92001
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009C
92009C
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015C
92015C
92015C
92022
92022
92022
92022
92022
92022
92043
92043
92071
92071
92075
92075
92144
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,MIRROR,BLACK 11012 11012-1751-6Z 2
BRACKET,UPP COWLING 11047 11047-1935 1
WINDSHIELD 39154 39154-1121 1
PAD,INNER COWLING,LH 39156 39156-1364 1
PAD,INNER COWLING,RH 39156A 39156-1365 1
PAD,UPP COWLING,LH 39156B 39156-1366 1
PAD,UPP COWLING,RH 39156C 39156-1367 1
COVER-HEAD LAMP,EBONY 55022A 55022-1075-H8 1
COWLING.,UPP,EBONY 55049G 55049-5282-H8 1
CIRCLIP-TYPE-E,3MM 482 482L3000 2
MIRROR-ASSY,LH,EBONY 56001 56001-1394-H8 1
MIRROR-ASSY,LH,P.A.WHITE 56001A 56001-1394-R1 1
MIRROR-ASSY,RH,EBONY 56001B 56001-1395-H8 1
MIRROR-ASSY,RH,P.A.WHITE 56001C 56001-1395-R1 1
BOLT,FLANGED,8X45 92001 92001-1613 2
SCREW,6X22,BLACK 92009 92009-1256 2
SCREW,6X16 92009A 92009-1621 5
SCREW,5X16 92009B 92009-1654 8
SCREW,5X20 92009C 92009-1656 4
NUT,CAP,8MM,BLACK 92015 92015-1174 2
NUT,FLANGED,6MM,BLACK 92015A 92015-1233 4
NUT 92015B 92015-1700 2
NUT,WELL,5MM 92015C 92015-1757 8
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 12
PIN,4X124.7 92043 92043-1477 1
GROMMET 92071 92071-056 1
DAMPER 92075 92075-1808 2
SPRING 92144 92144-1697 1
CAP,INNER COWLING COVER,LH,GRA 11012A 11012-1862-11 1 CN
CAP,INNER COWLING COVER,LH,GRA 11012B 11012-1862-12 1 CAUS
COVER,INNER COWLING,CNT,GRAY 14090 14090-1289-11 1 CN
COVER,INNER COWLING,CNT,GRAY 14090A 14090-1289-12 1 CAUS
COVER,INNER COWLING,RH,GRAY 14090B 14090-1291-11 1 CN
COVER,INNER COWLING,RH,GRAY 14090C 14090-1291-12 1 CAUS
COVER,INNER COWLING,LH,GRAY 14090D 14090-1358-11 1 CN
COVER,INNER COWLING,LH,GRAY 14090E 14090-1358-12 1 CAUS
COVER-HEAD LAMP,P.A.WHITE 55022 55022-1075-GK 1 CAUS
COVER-HEAD LAMP,P.A.WHITE 55022B 55022-1075-R1 1 CN
COWLING.,UPP,P.A.WHITE 55049E 55049-5273-GK 1 CAUS
COWLING.,UPP,P.A.WHITE 55049F 55049-5273-R1 1 CN
