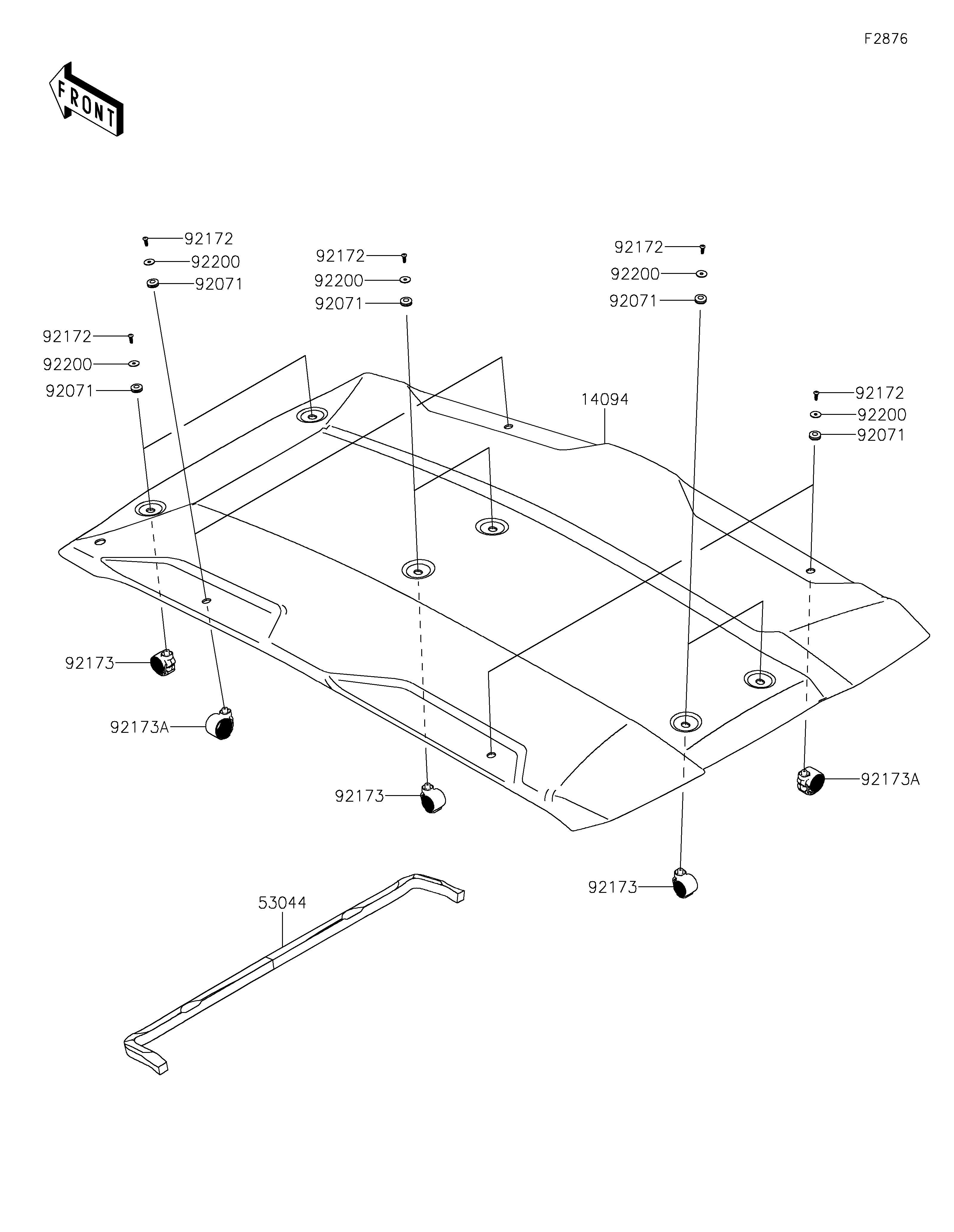

2025 Teryx KRX4 1000 Blackout Edition - Sun Top
14094
53044
92071
92071
92071
92071
92071
92172
92172
92172
92172
92172
92173
92173
92173
92173A
92173A
92200
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,ROOF | 14094 | 14094-0254 | 1 | ||
| TRIM | 53044 | 53044-0717 | 1 | ||
| GROMMET | 92071 | 92071-0814 | 10 | ||
| SCREW | 92172 | 92172-1311 | 10 | ||
| CLAMP | 92173 | 92173-2364 | 6 | ||
| CLAMP | 92173A | 92173-2366 | 4 | ||
| WASHER | 92200 | 92200-2394 | 10 |
| COVER,ROOF | |
| REF # | 14094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
