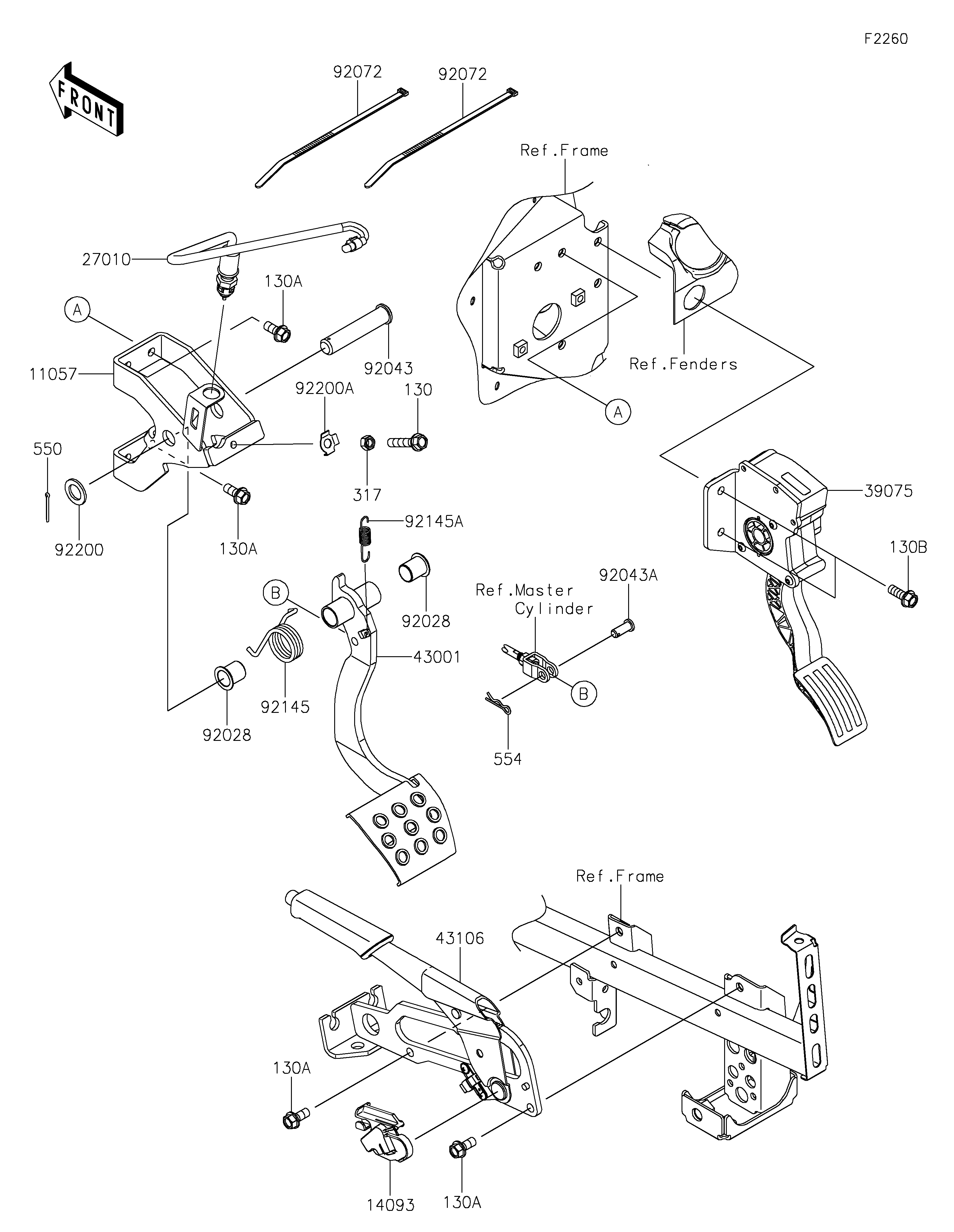

2025 TERYX® KRX4™ 1000 LIFTED EDITION - Brake Pedal/Throttle Lever
11057
14093
27010
39075
43001
43106
92028
92028
92043
92043A
92072
92072
92145
92145A
92200
92200A
130
130A
130A
130A
130A
130B
317
550
554
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BRAKE PEDAL | 11057 | 11057-2099 | 1 | ||
| COVER,SWITCH | 14093 | 14093-1021 | 1 | ||
| SWITCH,BRAKE | 27010 | 27010-0724 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-0033 | 1 | ||
| LEVER-BRAKE | 43001 | 43001-0767 | 1 | ||
| LEVER-ASSY-PARKING BRAKE | 43106 | 43106-0013 | 1 | ||
| BUSHING | 92028 | 92028-1571 | 2 | ||
| PIN,16X78 | 92043 | 92043-0917 | 1 | ||
| PIN | 92043A | 92043-1039 | 1 | ||
| BAND,L=292.1 | 92072 | 92072-3509 | 2 | ||
| SPRING | 92145 | 92145-1849 | 1 | ||
| SPRING | 92145A | 92145-1884 | 1 | ||
| WASHER,16X26X2.3 | 92200 | 92200-0043 | 1 | ||
| WASHER,8.5X17X0.8 | 92200A | 92200-0993 | 1 | ||
| BOLT-FLANGED,8X40 | 130 | 130BA0840 | 1 | ||
| BOLT-FLANGED,8X18 | 130A | 130CA0818 | 5 | ||
| BOLT-FLANGED,8X22 | 130B | 130CB0822 | 2 | ||
| NUT-HEX-SMALL,8MM | 317 | 317BA0800 | 1 | ||
| PIN-COTTER,2.5X25 | 550 | 550AA2525 | 1 | ||
| PIN-SNAP,10MM | 554 | 554DA1000 | 1 |
