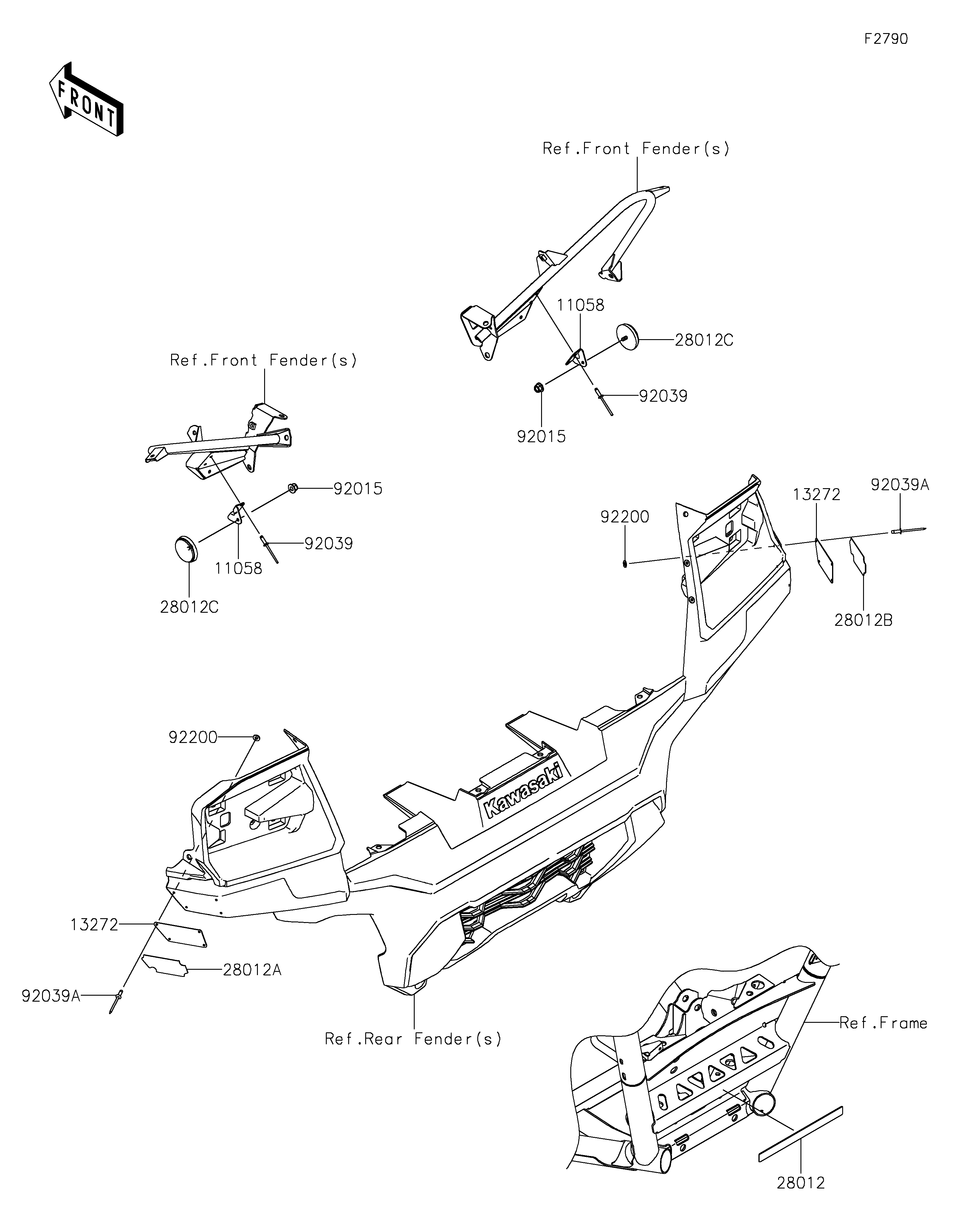

2025 TERYX® KRX4™ 1000 LIFTED EDITION - Reflectors(CN)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
13272
13272
28012
28012A
28012B
28012C
28012C
92015
92015
92039
92039
92039A
92039A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11058 11058-2324 2 CN
PLATE,RR 13272 13272-2881 2 CN
REFLECTOR-REFLEX,RR 28012 28012-0015 1 CN
REFLECTOR-REFLEX,RR,LH 28012A 28012-0049 1 CN
REFLECTOR-REFLEX,RR,RH 28012B 28012-0050 1 CN
REFLECTOR-REFLEX,FR 28012C 28012-016 2 CN
NUT,LOCK,FLANGED,5MM 92015 92015-1752 2 CN
RIVET,4.8X7.6 92039 92039-0784 4 CN
RIVET,3.2X8 92039A 92039-3763 8 CN
WASHER,3.5X8X1 92200 92200-1251 8 CN
