130
130
11009
11012
11048
12021
14024
92055
92151

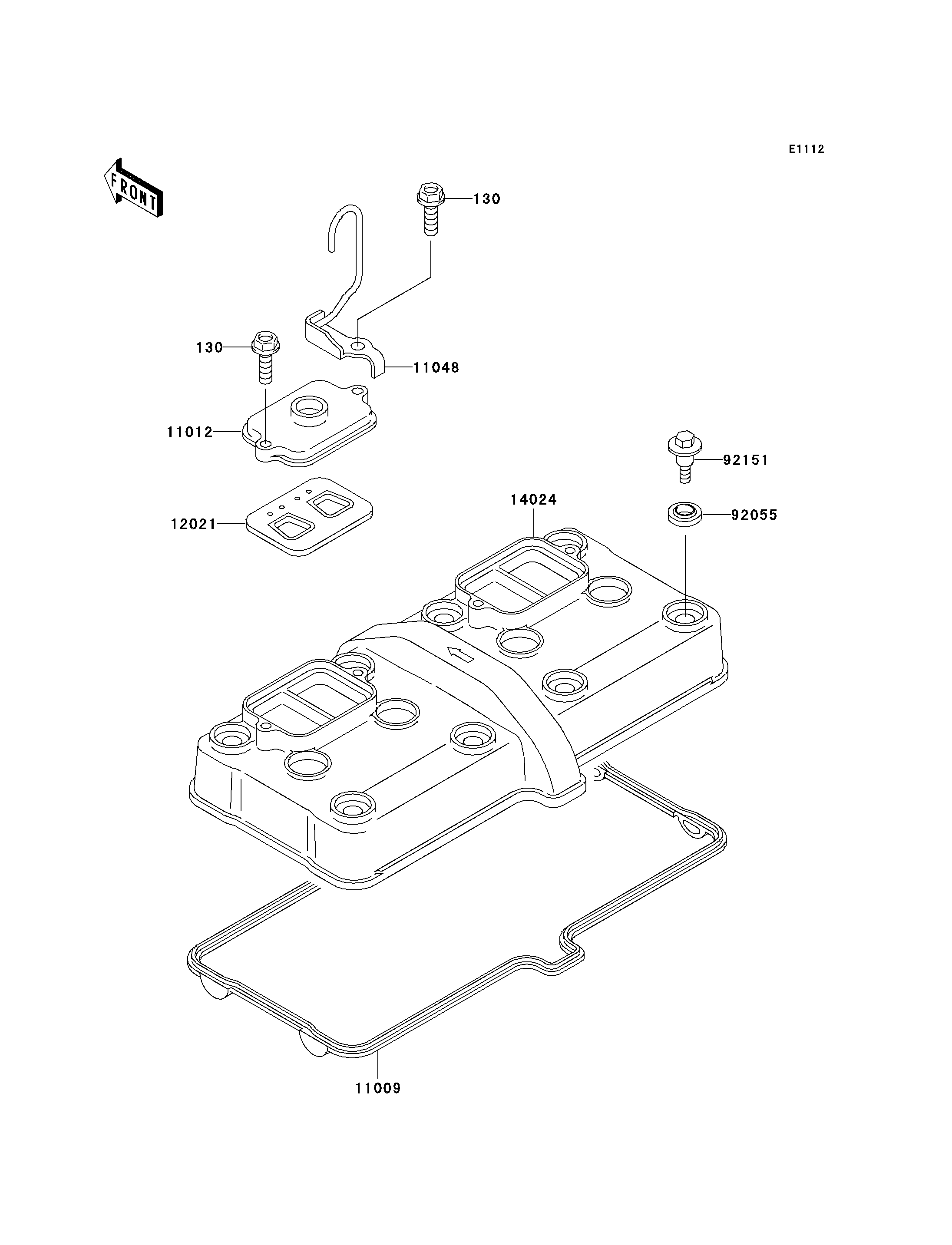

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Z0620 4
GASKET,HEAD COVER 11009 11009-1991 1
CAP,REED VALVE 11012 11012-1758 2
BRACKET,THROTTLE CABLE 11048 11048-1204 1
VALVE-ASSY-REED 12021 12021-1119 2
COVER,HEAD 14024 14024-1875 1
RING-O,HEAD COVER BOLT 92055 92055-1352 8
BOLT,L=23.5 92151 92151-1871 8
