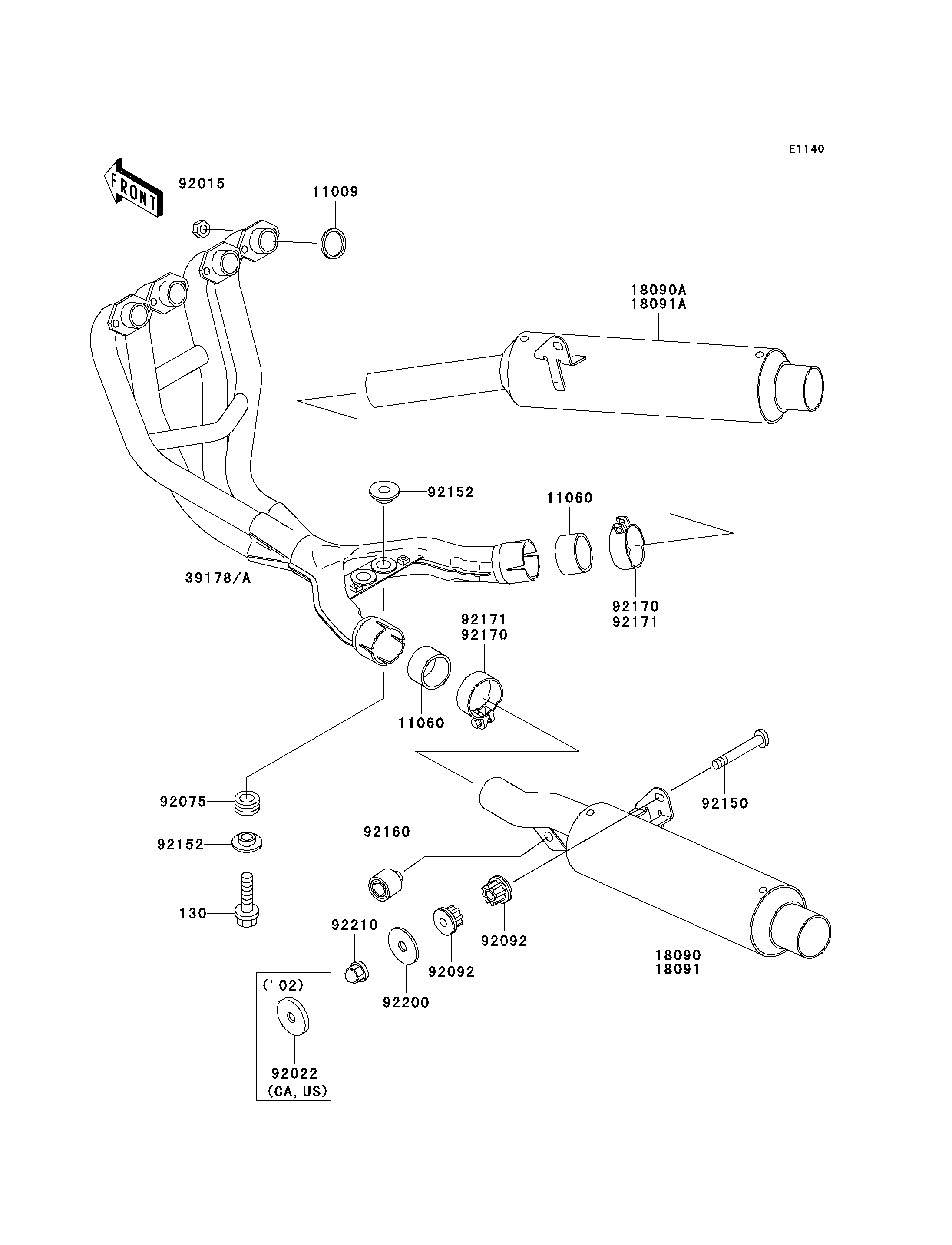

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Z1035 2
GASKET,EXHAUST PIPE HOLDER 11009 11009-1856 4
GASKET,EXHAUST PIPE HOLDER 11060 11060-1330 2
BODY-COMP-MUFFLER,LH 18091 18091-0185 1
BODY-COMP-MUFFLER,RH 18091A 18091-0187 1
MANIFOLD-COMP-EXHAUST 39178A 39178-1354 1
NUT,8MM 92015 92015-1950 8
DAMPER,MUFFLER 92075 92075-1621 2
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
BOLT,10X55 92150 92150-1792 2
COLLAR 92152 92152-1272 4
DAMPER,STAND 92160 92160-1453 1
CLAMP 92171 92171-0362 2
WASHER,10.5X33X2.0 92200 92200-1544 2
NUT,CAP,10MM 92210 92210-1121 2
