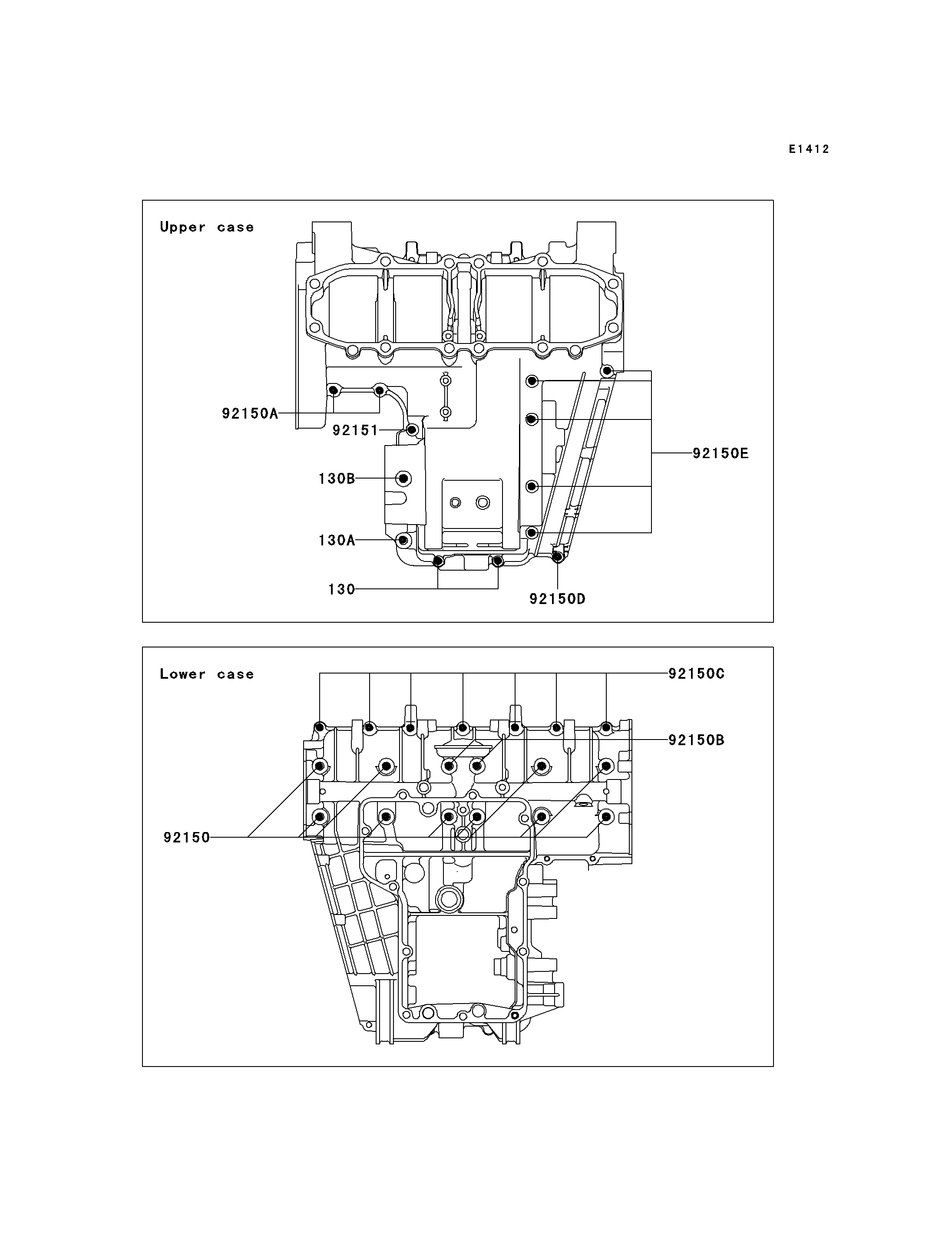

130
130A
130B
92150
92150A
92150B
92150C
92150D
92150E
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Z0675 2
BOLT-FLANGED 130A 130Z0870 1
BOLT-FLANGED 130B 130Z0895 1
BOLT,8X90 92150 92150-1163 10
BOLT,6X30 92150A 92150-1300 2
BOLT,8X120 92150B 92150-1424 2
BOLT,6X35 92150C 92150-1547 7
BOLT,6X60 92150D 92150-1548 1
BOLT,6X90 92150E 92150-1622 5
BOLT,6X45 92151 92151-1465 1
