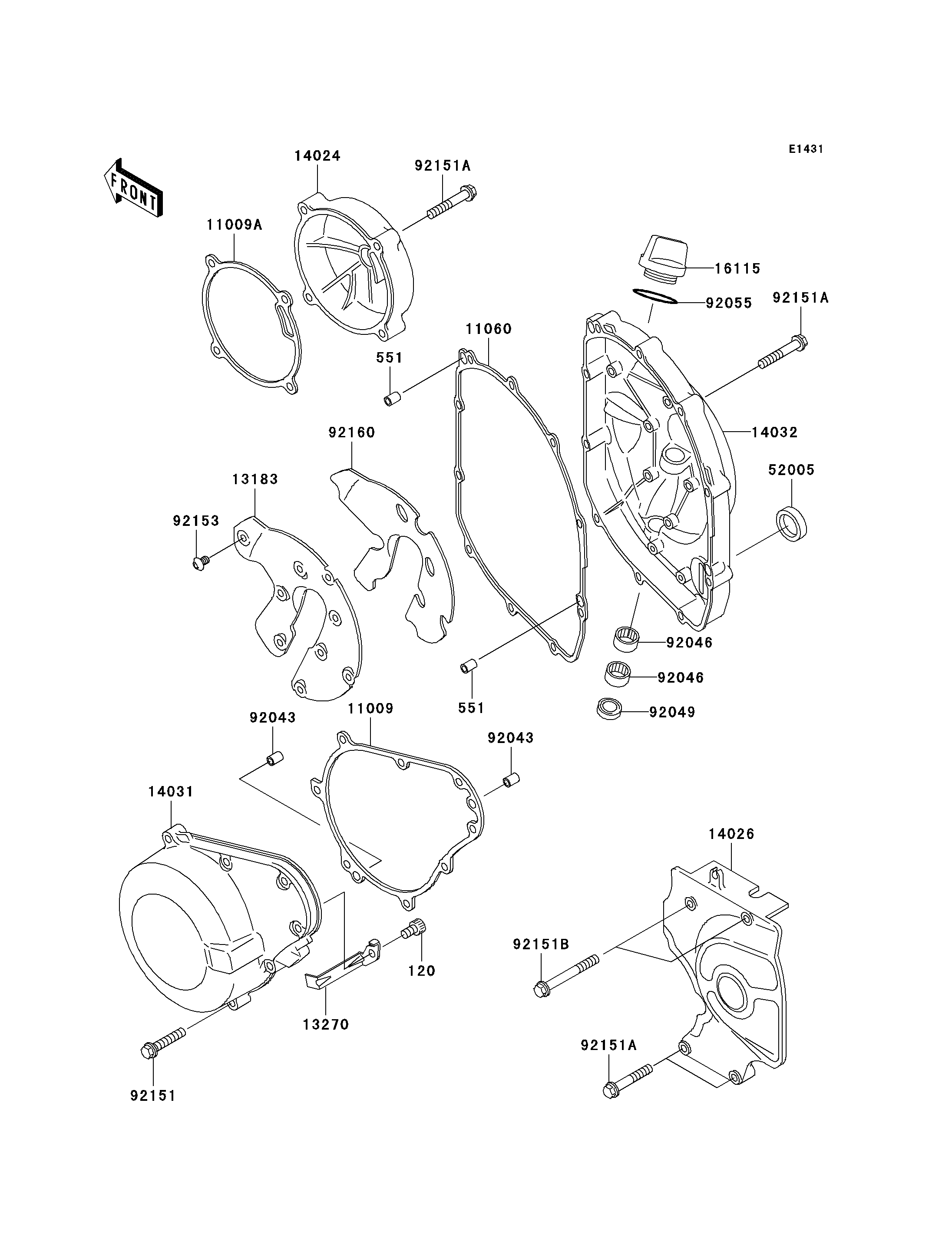

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120P0610 1
PIN-DOWEL,8X14 551 551A0814 2
GASKET,GENERATOR COVER 11009 11009-1868 1
GASKET,PULSING COVER 11009A 11009-1869 1
GASKET,CLUTCH COVER 11060 11060-1639 1
PLATE 13183 13183-1532 1
PLATE,LEAD WIRE 13270 13270-1475 1
COVER,PULSING 14024 14024-1881 1
COVER-CHAIN 14026 14026-1216 1
COVER-GENERATOR 14031 14031-1247 1
COVER-CLUTCH 14032 14032-1388 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1057 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
RING-O,31.7X2.4 92055 92055-049 1
BOLT,6X30 92151 92151-1873 8
BOLT,6X35 92151A 92151-1874 16
BOLT,6X50 92151B 92151-1875 2
BOLT,5X8 92153 92153-0636 9
DAMPER 92160 92160-1195 1
