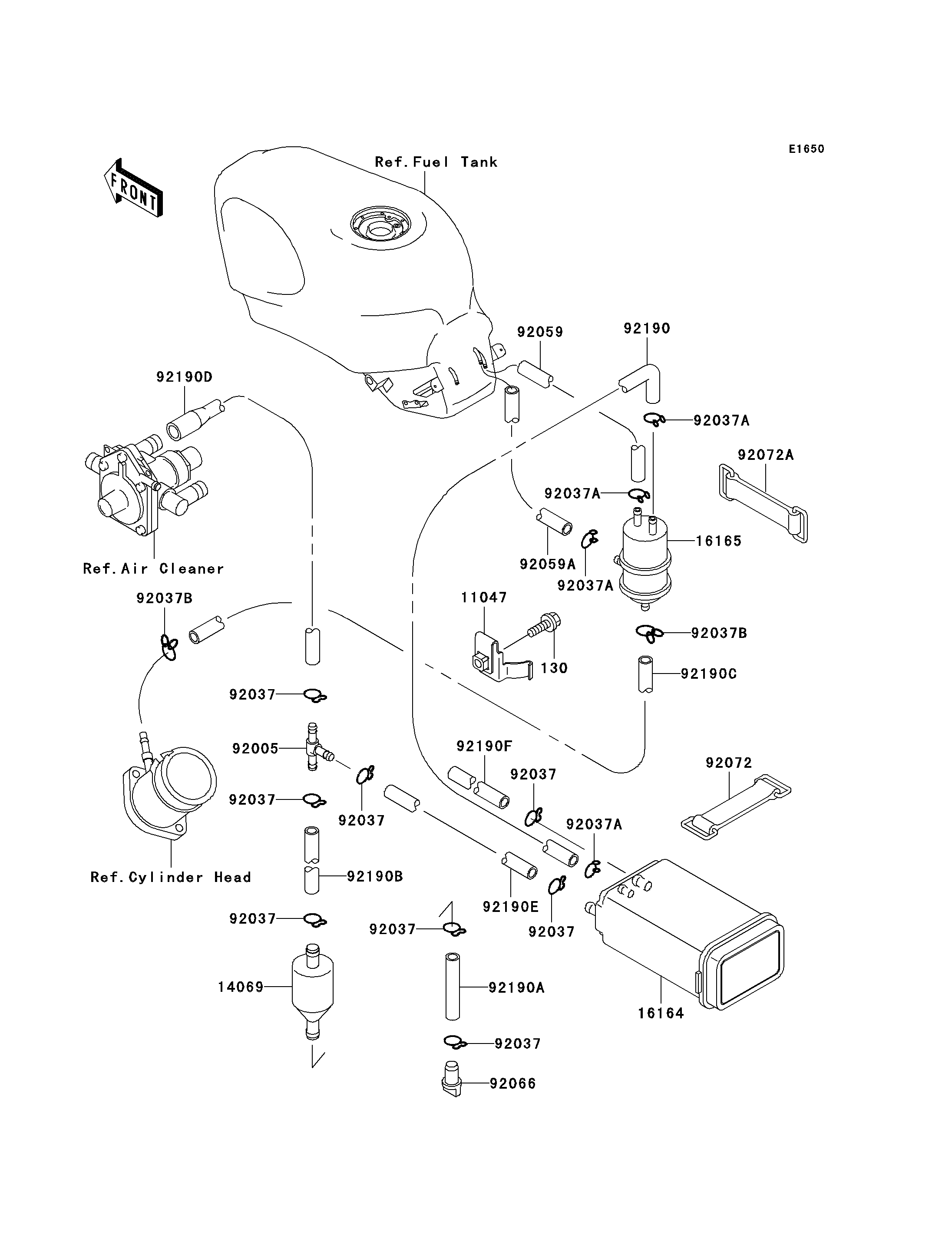

2003 ZZR600 - Fuel Evaporative System(E10-E12)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130J0612 | 1 | CA | |
| BRACKET,CANISTER | 11047 | 11047-1990 | 1 | CA | |
| BREATHER | 14069 | 14069-1051 | 1 | CA | |
| CANISTER | 16164 | 16164-1052 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FITTING,T-TYPE | 92005 | 92005-1119 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 8 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 4 | CA | |
| CLAMP | 92037B | 92037-1712 | 2 | CA | |
| TUBE,5X10X170,BLUE | 92059 | 92059-1496 | 1 | CA | |
| TUBE,5X10X230,RED | 92059A | 92059-1497 | 1 | CA | |
| PLUG,DRAIN | 92066 | 92066-1211 | 1 | CA | |
| BAND,L=142.1 | 92072 | 92072-006 | 1 | CA | |
| BAND,L=50 | 92072A | 92072-1419 | 1 | CA | |
| TUBE,5X10X690,BLUE | 92190 | 92190-1099 | 1 | CA | |
| TUBE,7X12X45 | 92190A | 92190-1200 | 1 | CA | |
| TUBE,7X12X160 | 92190B | 92190-1201 | 1 | CA | |
| TUBE,4X9X651,WHITE | 92190C | 92190-1440 | 1 | CA | |
| TUBE,L=569,YELLOW | 92190D | 92190-1441 | 1 | CA | |
| TUBE,7X12X700,YELLOW | 92190E | 92190-1442 | 1 | CA | |
| TUBE,7X12X1250,GREEN | 92190F | 92190-1443 | 1 | CA |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,CANISTER | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BREATHER | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,5X10X170,BLUE | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,5X10X230,RED | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PLUG,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=142.1 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,5X10X690,BLUE | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X45 | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X160 | |
| REF # | 92190B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,4X9X651,WHITE | |
| REF # | 92190C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,L=569,YELLOW | |
| REF # | 92190D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X700,YELLOW | |
| REF # | 92190E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,7X12X1250,GREEN | |
| REF # | 92190F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
