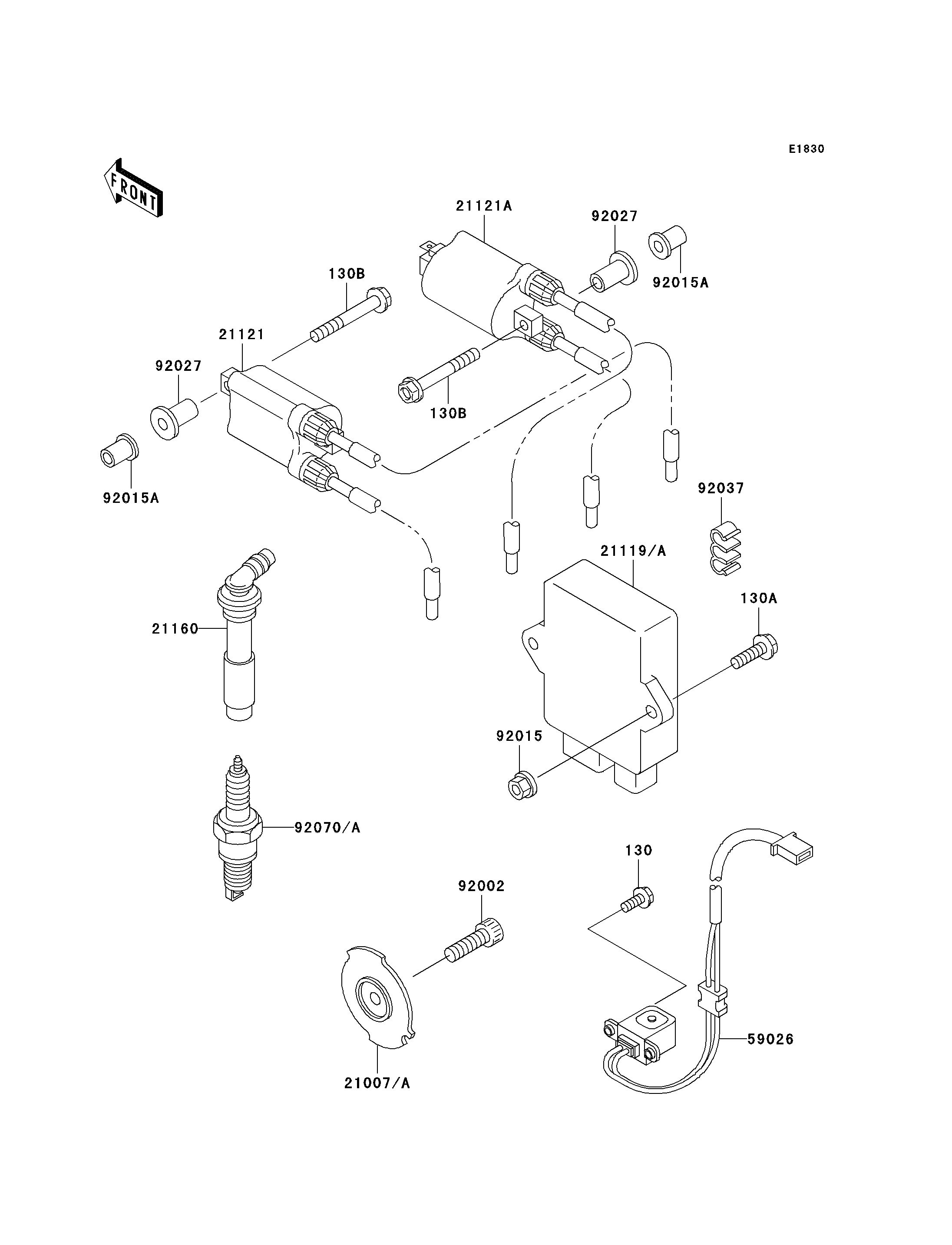

2003 ZZR600 - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130B
21121
21121A
21160
59026
92002
92015
92015A
92015A
92027
92027
92037
92070
92070A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
BOLT-FLANGED 130A 130J0620 2
BOLT-FLANGED,6X45,BLACK 130B 130J0645 4
COIL-IGNITION,#1&#4 21121 21121-1227 1
COIL-IGNITION,#2&#3 21121A 21121-1228 1
CAP-ASSY-PLUG 21160 21160-1081 4
COIL-PULSING 59026 59026-1100 1
BOLT,SOCKET,8X25 92002 92002-1442 1
NUT,6MM 92015 92015-1094 2
NUT 92015A 92015-1700 4
COLLAR,L=21 92027 92027-195 4
CLAMP,CABLE 92037 92037-1697 1
PLUG-SPARK,U27ESR-N(ND) 92070 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,CR9E(NGK) 92070A 92070-1266 4
ROTOR,PULSING 21007 21007-1205 1 CNUS
ROTOR,PULSING 21007A 21007-1258 1 CA
IGNITER 21119 21119-1364 1 CNUS
IGNITER 21119A 21119-1387 1 CA
