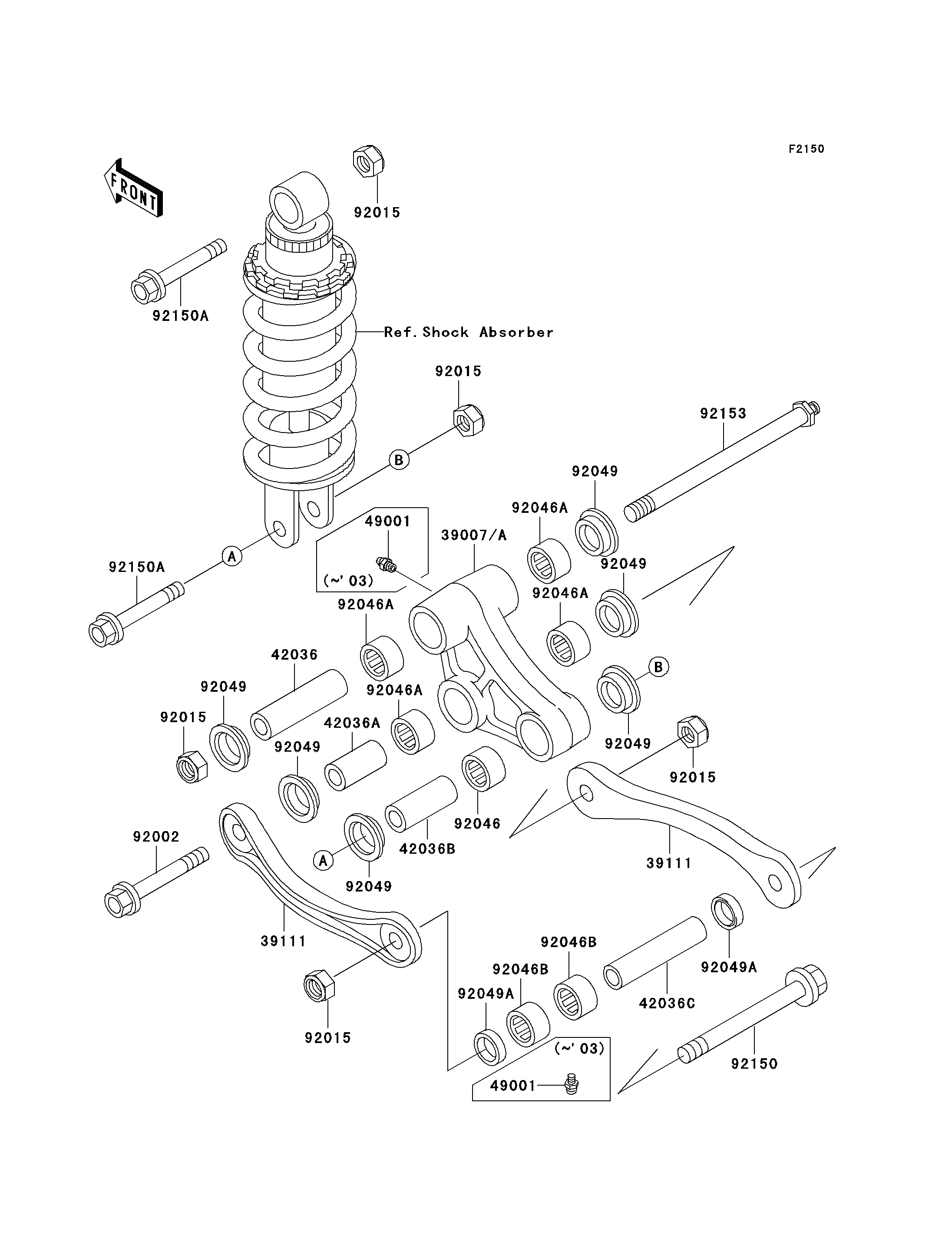

Parts Diagrams |
39007A
39111
39111
42036
42036A
42036B
42036C
49001
49001
92002
92015
92015
92015
92015
92015
92046
92046A
92046A
92046A
92046A
92046B
92046B
92049
92049
92049
92049
92049
92049
92049A
92049A
92150
92150A
92150A
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ARM-SUSP,UNI TRAK | 39007A | 39007-1191 | 1 | ||
ROD-TIE,SUSPENSION | 39111 | 39111-1142 | 2 | ||
SLEEVE,12.1X20X74 | 42036 | 42036-1102 | 1 | ||
SLEEVE,12.1X20X40 | 42036A | 42036-1108 | 1 | ||
SLEEVE,12.1X20X50 | 42036B | 42036-1111 | 1 | ||
SLEEVE,12.1X18X82 | 42036C | 42036-1231 | 1 | ||
NIPPLE-GREASE | 49001 | 49001-0001 | 4 | ||
BOLT,FLANGED,12X75 | 92002 | 92002-1661 | 1 | ||
NUT,LOCK,12MM,BLACK | 92015 | 92015-1190 | 5 | ||
BEARING-NEEDLE,7E-HVS20X27X25 | 92046 | 92046-1236 | 1 | ||
BEARING-NEEDLE,7E-HVS20X27X15 | 92046A | 92046-1237 | 4 | ||
BEARING-NEEDLE,7E-HVS18X24X16 | 92046B | 92046-1238 | 2 | ||
SEAL-OIL,ARM | 92049 | 92049-1109 | 6 | ||
SEAL-OIL,MHA18244 | 92049A | 92049-1225 | 2 | ||
BOLT,FLANGED,12X110 | 92150 | 92150-1088 | 1 | ||
BOLT,FLANGED,12X63 | 92150A | 92150-1258 | 2 | ||
BOLT,SUSPENSION ARM | 92153 | 92153-0555 | 1 |
