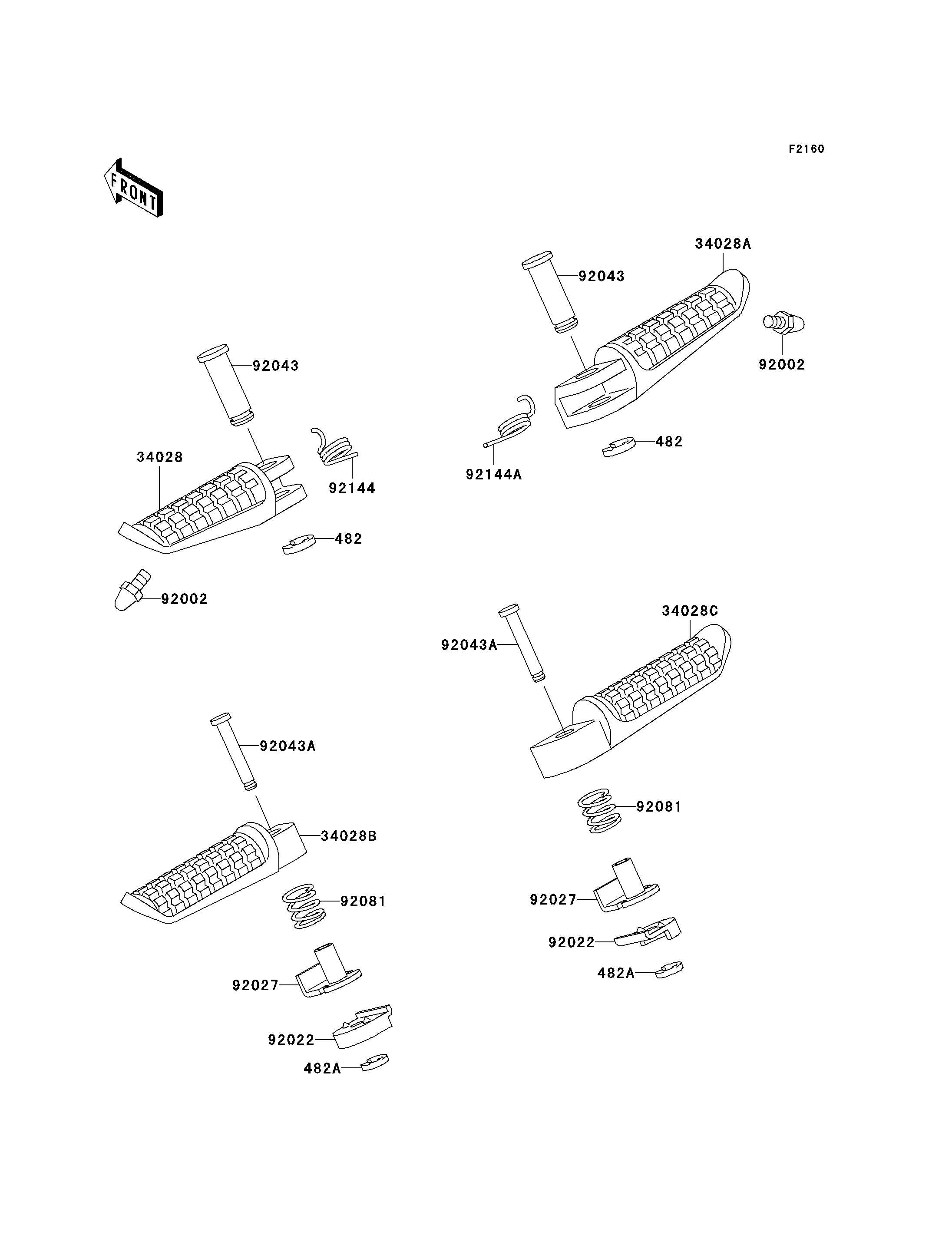

2003 ZZR600 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
482
482
482A
482A
34028
34028A
34028B
34028C
92002
92002
92022
92022
92027
92027
92043
92043
92043A
92043A
92081
92081
92144
92144A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
STEP,FR,LH 34028 34028-1334 1
STEP,FR,RH 34028A 34028-1335 1
STEP,RR,LH 34028B 34028-1488 1
STEP,RR,RH 34028C 34028-1489 1
BOLT,BANK SENSOR 92002 92002-1742 2
WASHER,STEP,RR 92022 92022-1507 2
COLLAR,STEP 92027 92027-1732 2
PIN,12X42.5 92043 92043-1145 2
PIN,6X40 92043A 92043-1595 2
SPRING,STEP,RR 92081 92081-1612 2
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
