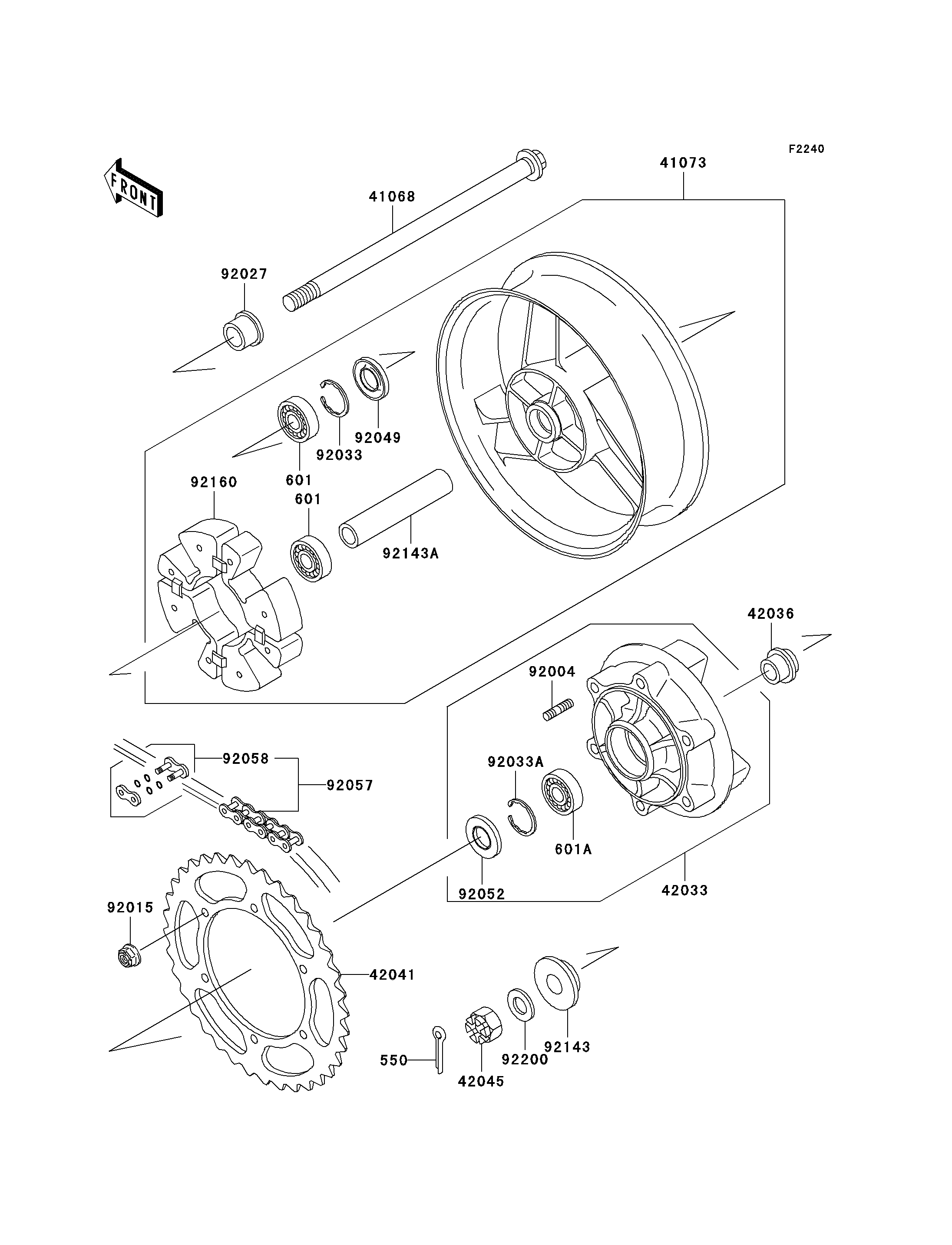

Parts Diagrams |
550
601
601
601A
41068
41073
42033
42036
42041
42045
92004
92015
92027
92033
92033A
92049
92052
92057
92058
92143
92143A
92160
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL,6204UUC3 | 601 | 601B6204UU | 2 | ||
BEARING-BALL,#6205G | 601A | 601B6205G | 1 | ||
AXLE,RR | 41068 | 41068-1350 | 1 | ||
WHEEL-ASSY,RR,G.GRAY | 41073 | 41073-1521-GE | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-1214 | 1 | ||
SLEEVE,RR HUB,L=23 | 42036 | 42036-1251 | 1 | ||
SPROCKET-HUB,48T | 42041 | 42041-1362 | 1 | ||
NUT,CASTLE,18MM | 42045 | 42045-018 | 1 | ||
STUD,10X19 | 92004 | 92004-1275 | 6 | ||
NUT,FLANGED,10MM | 92015 | 92015-1335 | 6 | ||
COLLAR,RR AXLE,L=21.5 | 92027 | 92027-1902 | 1 | ||
RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
RING-SNAP,52MM | 92033A | 92033-1043 | 1 | ||
SEAL-OIL,BJN28475 | 92049 | 92049-1056 | 1 | ||
SEAL-OIL,TWC35527 | 92052 | 92052-006 | 1 | ||
CHAIN,DRIVE,EK50MV-XX112L | 92057 | 92057-0002 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-1098 | 1 | ||
COLLAR,RR AXLE,L=16 | 92143 | 92143-1302 | 1 | ||
COLLAR,RR HUB,L=133 | 92143A | 92143-1303 | 1 | ||
DAMPER,SHOCK,RR HUB | 92160 | 92160-1399 | 1 | ||
WASHER,19X32X2.6 | 92200 | 92200-1489 | 1 |
