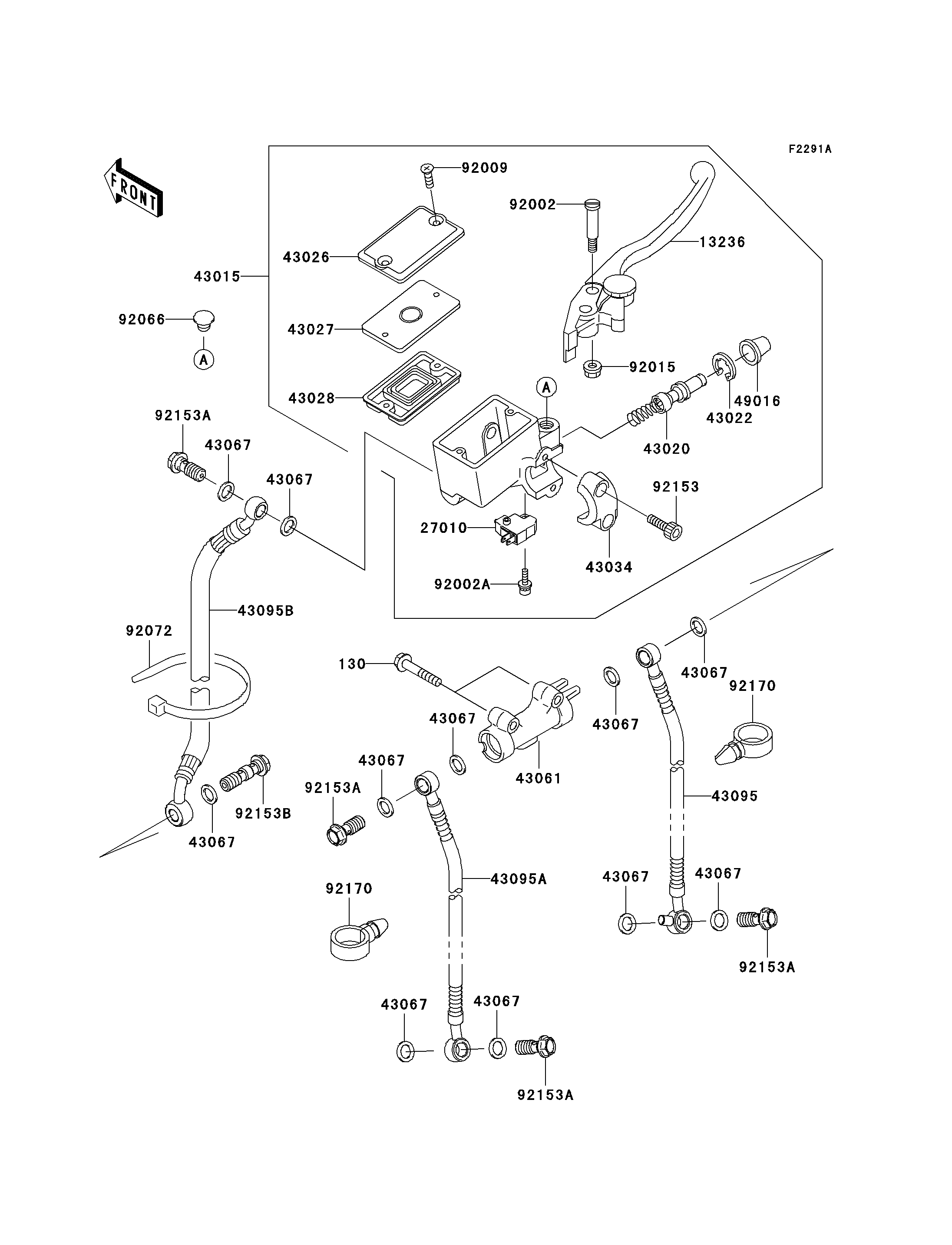

2004 ZZR600 - Front Master Cylinder(E12/E13)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP,FRONT BRAKE | 13236 | 13236-1337 | 1 | CN | |
| SWITCH,BRAKE | 27010 | 27010-0025 | 1 | CN | |
| CYLINDER-ASSY-MASTER,FR | 43015 | 43015-0011 | 1 | CN | |
| PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | CN | |
| STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | CN | |
| CAP-BRAKE | 43026 | 43026-1076 | 1 | CN | |
| PLATE-DIAPHRAGM | 43027 | 43027-1055 | 1 | CN | |
| DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | CN | |
| HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | CN | |
| JOINT-BRAKE | 43061 | 43061-1002 | 1 | CN | |
| WASHER,10.5X15X1.5 | 43067 | 43067-001 | 11 | CN | |
| HOSE-BRAKE,FR | 43095 | 43095-0056 | 1 | CN | |
| HOSE-BRAKE,FR | 43095A | 43095-1379 | 1 | CN | |
| HOSE-BRAKE,FR | 43095B | 43095-1381 | 1 | CN | |
| COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | CN | |
| BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | CN | |
| BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | CN | |
| SCREW,4MM | 92009 | 92009-1458 | 2 | CN | |
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | CN | |
| PLUG,9.5X8,POLYETHYLENE | 92066 | 92066-1077 | 1 | CN | |
| BAND,L=250 | 92072 | 92072-1237 | 2 | CN | |
| BOLT,SOCKET,6X20 | 92153 | 92153-0417 | 2 | CN | |
| BOLT-FLANGED | 130 | 130L0635 | 2 | CN | |
| BOLT,OIL,L=23 | 92153A | 92153-0627 | 4 | CN | |
| BOLT,OIL,L=37 | 92153B | 92153-0628 | 1 | CN | |
| CLAMP | 92170 | 92170-1067 | 2 | CN |
| LEVER-COMP,FRONT BRAKE | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SWITCH,BRAKE | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CYLINDER-ASSY-MASTER,FR | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PISTON-COMP-BRAKE,FR | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| STOPPER-BRAKE,PISTON | |
| REF # | 43022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CAP-BRAKE | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PLATE-DIAPHRAGM | |
| REF # | 43027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| DIAPHRAGM,MASTER CYLINDER | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| HOLDER-BRAKE,MASTER CYLINDER | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| JOINT-BRAKE | |
| REF # | 43061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| WASHER,10.5X15X1.5 | |
| REF # | 43067 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | CN |
| REMARKS | |
| HOSE-BRAKE,FR | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| HOSE-BRAKE,FR | |
| REF # | 43095A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| HOSE-BRAKE,FR | |
| REF # | 43095B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER-SEAL,MASTER CYLINDER | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,LEVER SET,BLACK | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,SCREW,4X12 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SCREW,4MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| NUT,FLANGED,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PLUG,9.5X8,POLYETHYLENE | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BAND,L=250 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,SOCKET,6X20 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| BOLT,OIL,L=37 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
