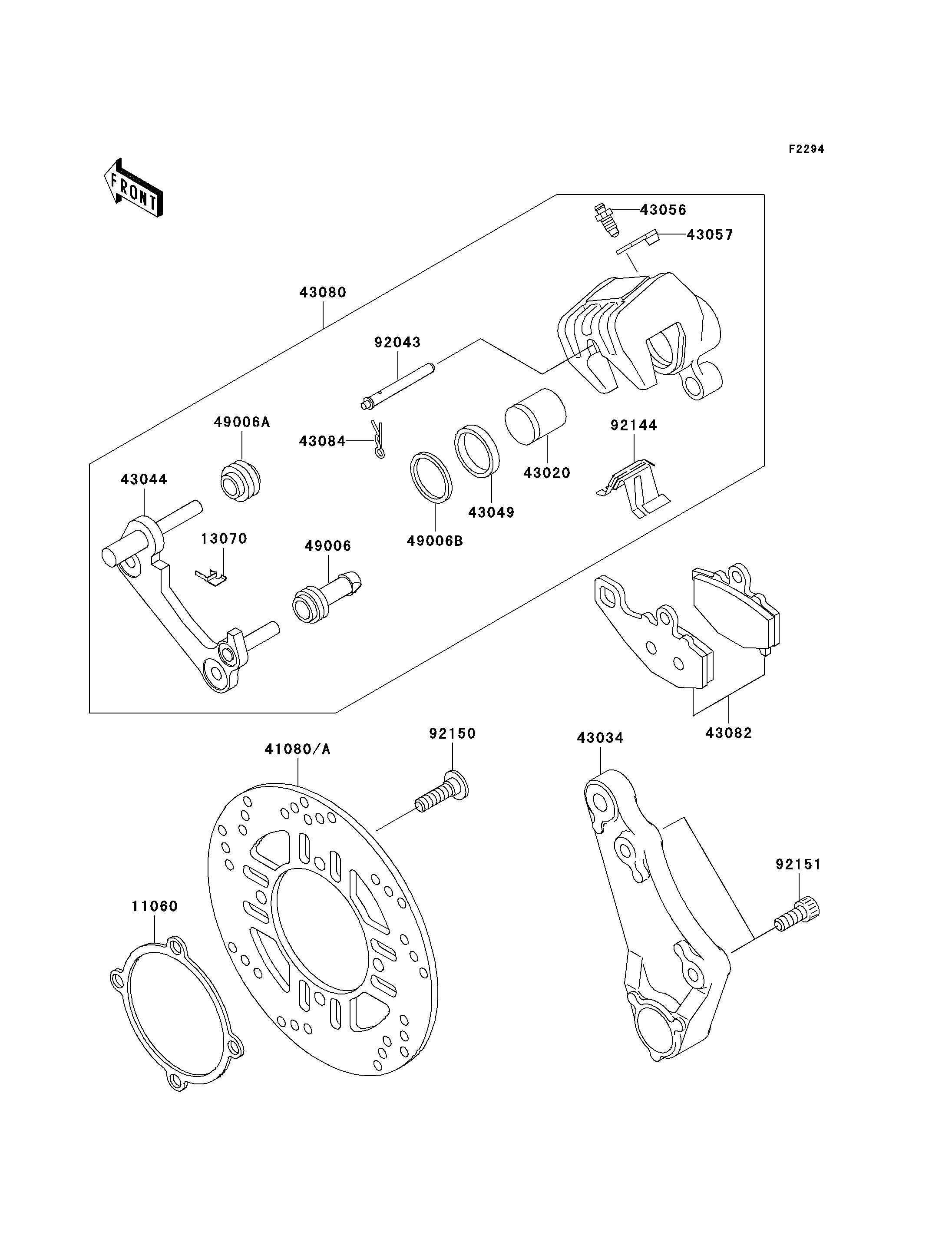

2003 ZZR600 - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11060
13070
41080A
43020
43034
43044
43049
43056
43057
43080
43082
43084
49006
49006A
49006B
92043
92144
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11060 11060-1357 1
GUIDE,BRAKE PAD 13070 13070-0045 1
DISC,RR,C.GRAY 41080A 41080-1255-FB 1
PISTON-COMP-BRAKE 43020 43020-1108 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-1125 1
HOLDER-COMP-CALIPER,RR 43044 43044-1110 1
PACKING,PISTON SEAL 43049 43049-1097 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-5001-DJ 1
PAD-ASSY-BRAKE 43082 43082-1157 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
BOOT,PISTON SEAL 49006B 49006-1212 1
PIN,PAD 92043 92043-1489 1
SPRING,PAD 92144 92144-1719 1
BOLT,SOCKET,8X30 92150 92150-1771 4
BOLT,SOCKET,8X20 92151 92151-1289 2
