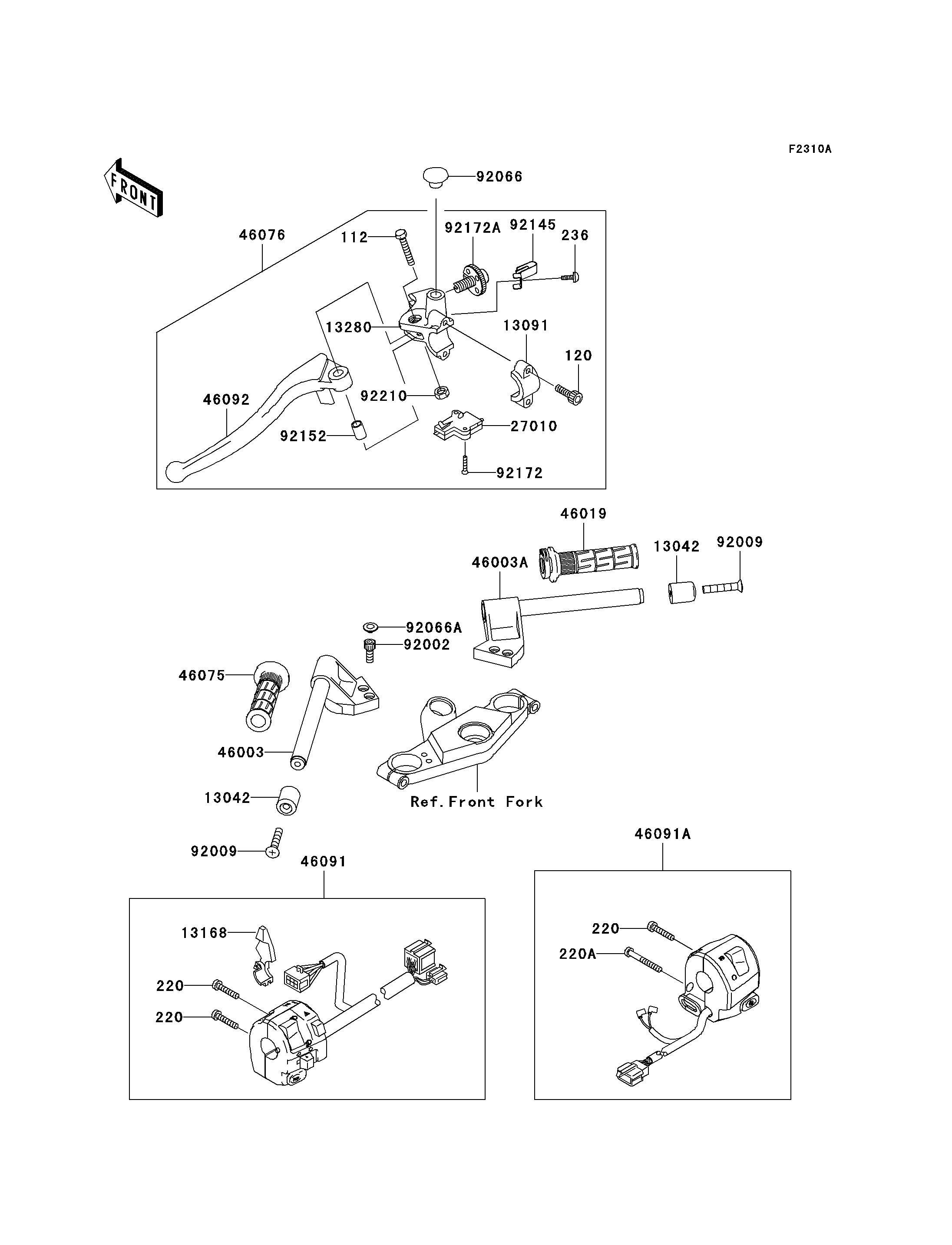

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WEIGHT,HANDLE | 13042 | 13042-1069 | 2 | CN | |
| HOLDER,CLUTCH LEVER | 13091 | 13091-1624 | 1 | CN | |
| LEVER,CHOKE | 13168 | 13168-1516 | 1 | CN | |
| HOLDER,CLUTCH LEVER | 13280 | 13280-0017 | 1 | CN | |
| SWITCH,CLUTCH,BLACK | 27010 | 27010-1094 | 1 | CN | |
| HANDLE,LH,C.GRAY | 46003 | 46003-0042-EZ | 1 | CN | |
| HANDLE,RH,C.GRAY | 46003A | 46003-1416-EZ | 1 | CN | |
| GRIP-ASSY,THROTTLE | 46019 | 46019-1124 | 1 | CN | |
| GRIP,LH | 46075 | 46075-1144 | 1 | CN | |
| LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-0005 | 1 | CN | |
| HOUSING-ASSY-CONTROL,LH | 46091 | 46091-0008 | 1 | CN | |
| HOUSING-ASSY-CONTROL,RH | 46091A | 46091-1672 | 1 | CN | |
| LEVER-GRIP,CLUTCH | 46092 | 46092-0003 | 1 | CN | |
| BOLT,SOCKET,8X20 | 92002 | 92002-1178 | 4 | CN | |
| SCREW,8X45 | 92009 | 92009-1257 | 2 | CN | |
| PLUG,9.5X8,POLYETHYLENE | 92066 | 92066-1077 | 1 | CN | |
| PLUG | 92066A | 92066-1277 | 4 | CN | |
| SPRING | 92145 | 92145-1286 | 1 | CN | |
| COLLAR | 92152 | 92152-0103 | 1 | CN | |
| SCREW,3X16 | 92172 | 92172-0183 | 2 | CN | |
| SCREW,ADJUST NUT | 92172A | 92172-1060 | 1 | CN | |
| NUT,LOCK,6MM | 92210 | 92210-0006 | 1 | CN | |
| BOLT-UPSET | 112 | 112J0630 | 1 | CN | |
| BOLT-SOCKET | 120 | 120S0620 | 2 | CN | |
| SCREW-PAN-CROS | 220 | 220C0525 | 3 | CN | |
| SCREW-PAN-CROS | 220A | 220C0540 | 1 | CN | |
| SCREW-PAN-WSP-CROS,4X10 | 236 | 236C0410 | 1 | CN |
