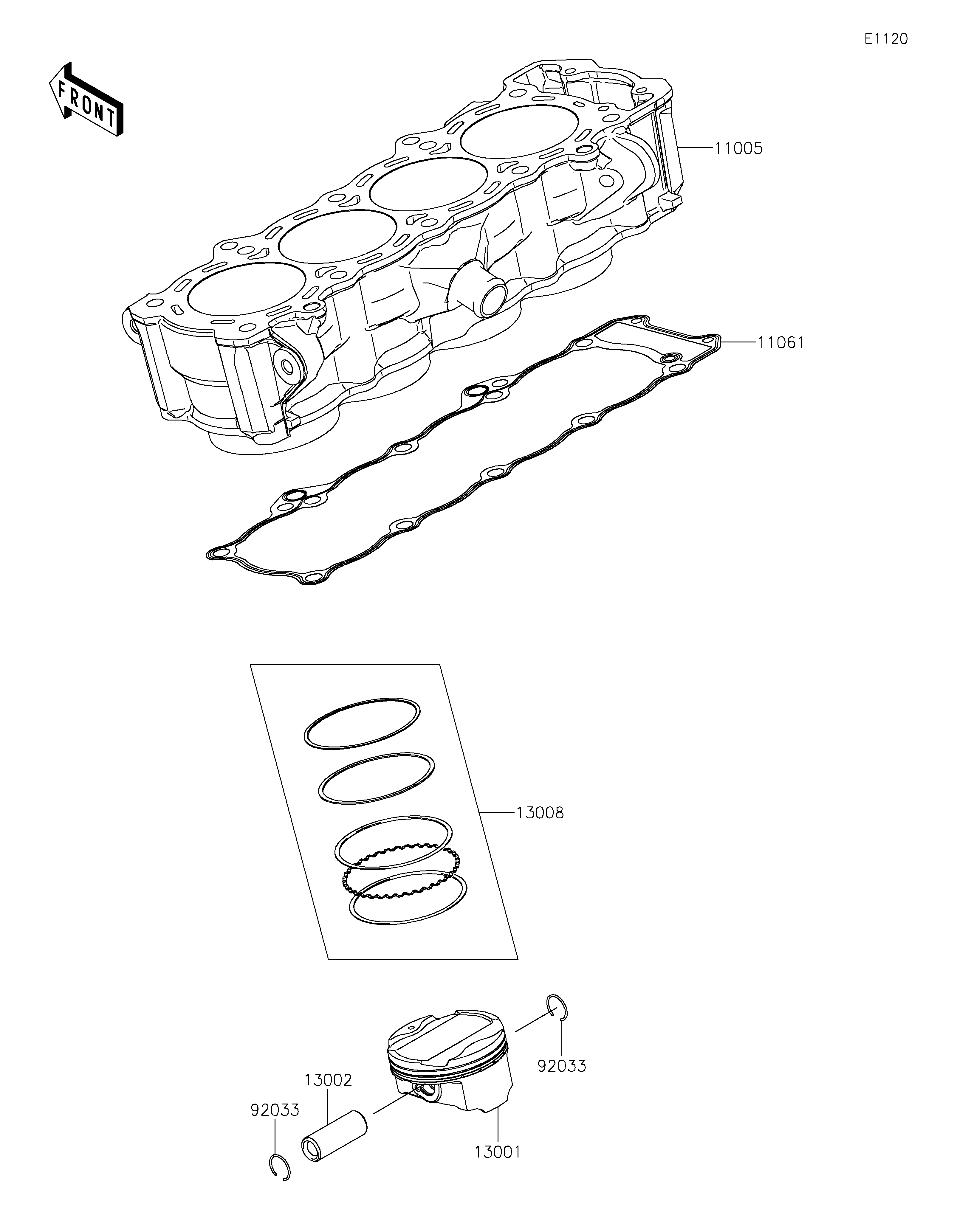

2025 Versys 1100 SE LT ABS - Cylinder/Piston(s)

11005
11061
13001
13002
13008
92033
92033
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-0752 1
GASKET,CYLINDER BASE 11061 11061-0402 1
PISTON-ENGINE 13001 13001-0848 4
PIN-PISTON 13002 13002-0004 4
RING-SET-PISTON 13008 13008-0608 4
RING-SNAP 92033 92033-1054 8
