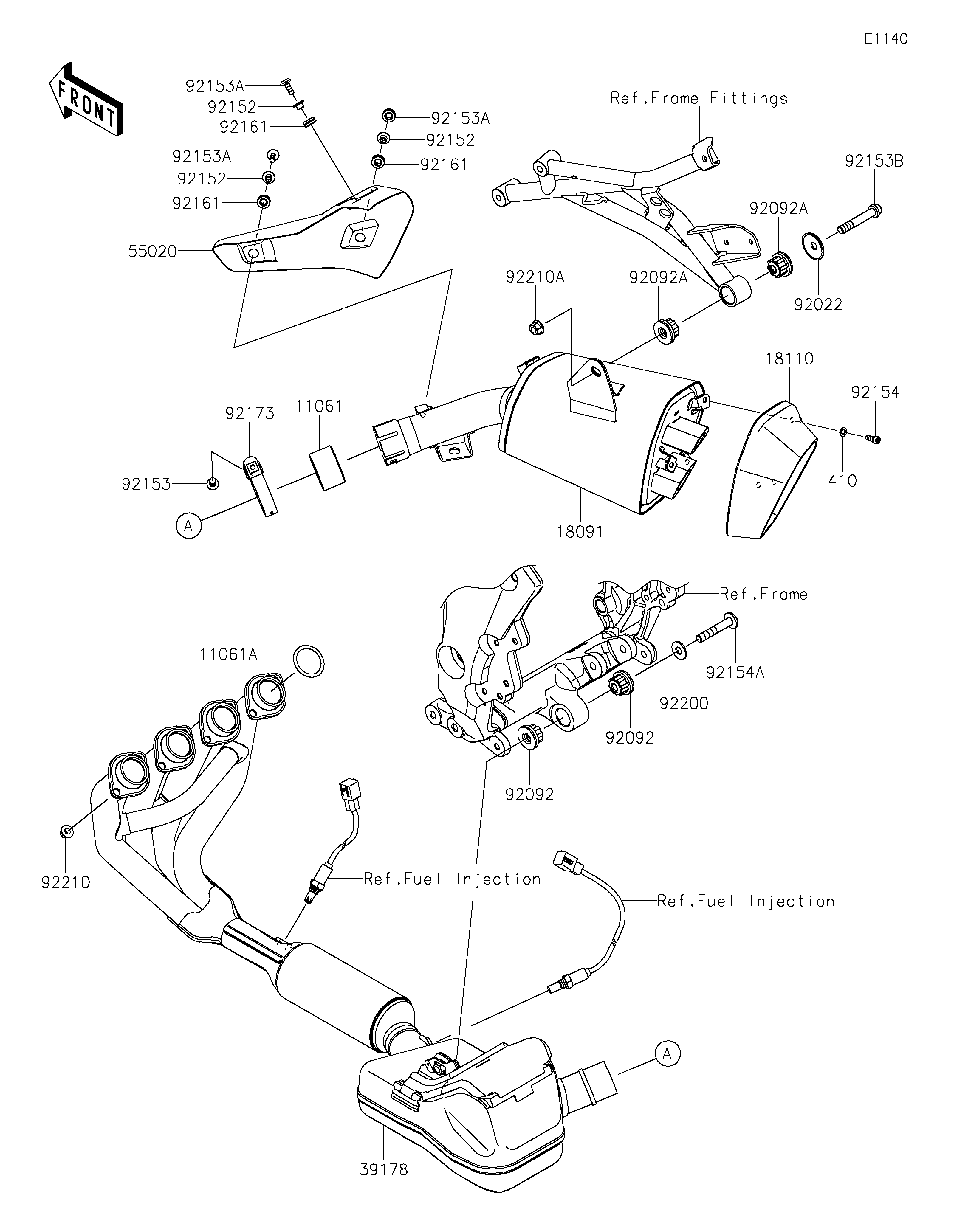

2025 Versys 1100 SE LT ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
18091
18110
39178
55020
92022
92092
92092
92092A
92092A
92152
92152
92152
92153
92153A
92153A
92153A
92153B
92154
92154A
92161
92161
92161
92173
92200
92210
92210A
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNECTING 11061 11061-0726 1
GASKET,EXHAUST PIPE HOLDER 11061A 11061-1373 4
BODY-COMP-MUFFLER 18091 18091-1315 1
BODY END-MUFFLER 18110 18110-0208 1
MANIFOLD-COMP-EXHAUST 39178 39178-0484 1
GUARD,HEAT 55020 55020-2239 1
WASHER 92022 92022-289 1
BUSHING-RUBBER 92092 92092-1081 2
BUSHING-RUBBER,MUFFLER 92092A 92092-1087 2
COLLAR,6.3X8.3X16 92152 92152-0286 3
BOLT,8X45 92153 92153-0702 1
BOLT,SOCKET,6X16 92153A 92153-1526 3
BOLT,SOCKET,10X60 92153B 92153-1837 1
BOLT,SOCKET,6X16 92154 92154-1454 3
BOLT,SOCKET,10X65 92154A 92154-2642 1
DAMPER 92161 92161-0306 3
CLAMP 92173 92173-1320 1
WASHER,10.5X25X2.0 92200 92200-1377 1
NUT,8MM 92210 92210-0076 8
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 1
WASHER-PLAIN-SMALL,6MM 410 410S0600 3
