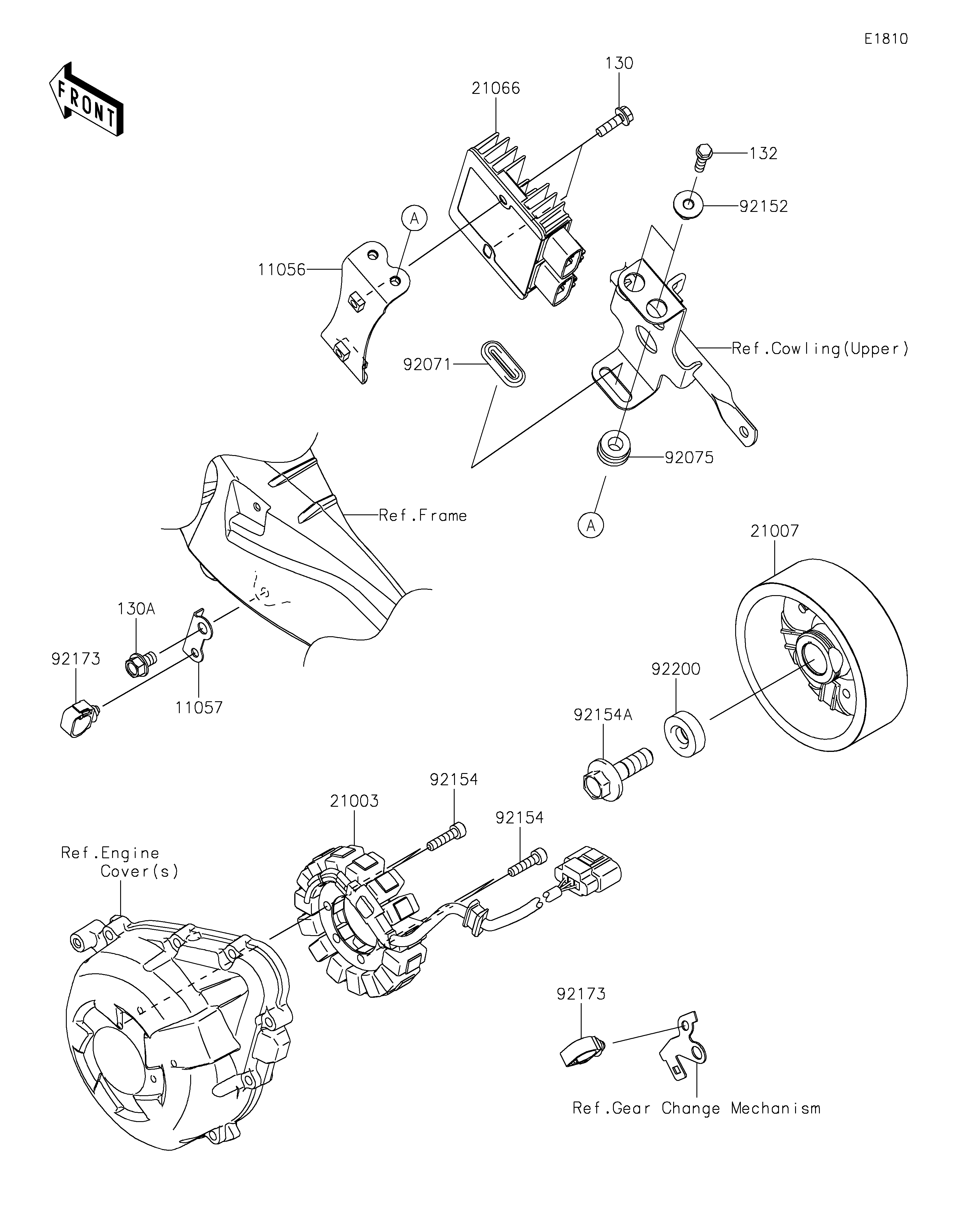

11056
11057
21003
21007
21066
92071
92075
92152
92154
92154
92154A
92173
92173
92200
130
130A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR 11056 11056-4211 1
BRACKET,CLAMP 11057 11057-2010 1
STATOR 21003 21003-0155 1
ROTOR 21007 21007-0609 1
REGULATOR-VOLTAGE 21066 21066-0748 1
GROMMET 92071 92071-1187 1
DAMPER,RUBBER 92075 92075-1123 2
COLLAR 92152 92152-0666 2
BOLT,SOCKET,6X25 92154 92154-0477 4
BOLT,FLANGED,12X40 92154A 92154-2650 1
CLAMP,HOLDER CLIP 92173 92173-0868 2
WASHER,12X34X9 92200 92200-0369 1
BOLT-FLANGED,6X20 130 130BA0620 2
BOLT-FLANGED,8X12 130A 130BA0812 1
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
