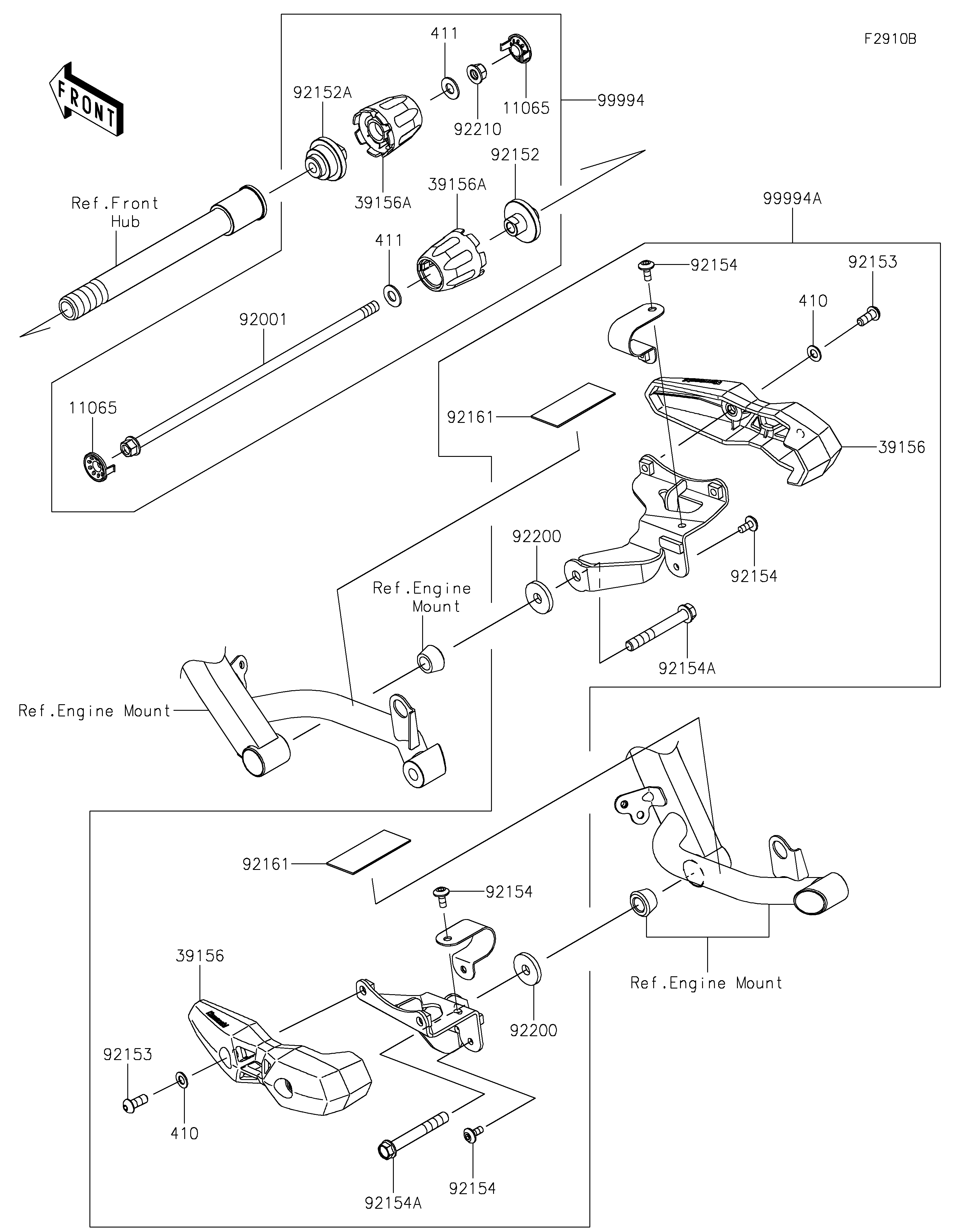

2025 Versys 1100 SE LT ABS - Accessory(Slider)
11065
11065
39156
39156
39156A
39156A
92001
92152
92152A
92153
92153
92154
92154
92154
92154
92154A
92154A
92161
92161
92200
92200
92210
99994
99994A
410
410
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,B.SILVER | 11065 | 11065-1313-54N | 2 | ||
| PAD,SLIDER | 39156 | 39156-1818 | 2 | ||
| PAD,AXLE SLIDER | 39156A | 39156-2212 | 2 | ||
| BOLT,FLANGED,10X325 | 92001 | 92001-1654 | 1 | ||
| COLLAR,LH | 92152 | 92152-2502 | 1 | ||
| COLLAR,RH | 92152A | 92152-2511 | 1 | ||
| BOLT,SOCKET,8X20 | 92153 | 92153-0912 | 4 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-0907 | 4 | ||
| BOLT,FLANGED,10X75 | 92154A | 92154-1923 | 2 | ||
| DAMPER,36X77X1.5 | 92161 | 92161-1721 | 2 | ||
| WASHER,10.2X32X4.5 | 92200 | 92200-1785 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 1 | ||
| FRONT AXLE SLIDER | 99994 | 99994-1134 | 1 | ||
| FRAME SLIDER | 99994A | 99994-1139 | 1 | ||
| WASHER-PLAIN-SMALL,8MM,BLACK | 410 | 410AB0800 | 4 | ||
| WASHER-PLAIN,10MM | 411 | 411AA1000 | 2 |
