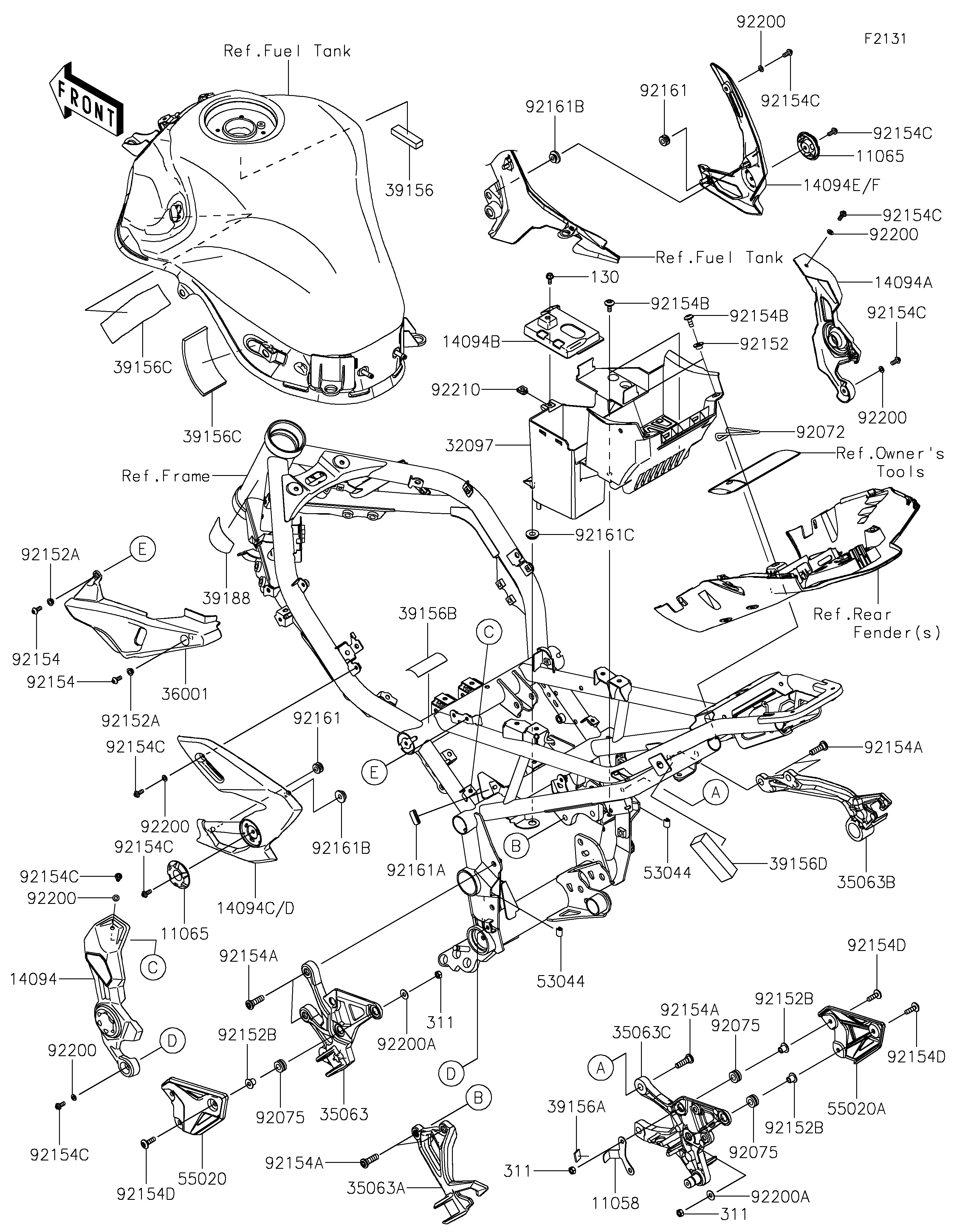

2025 Z900 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
11065
11065
11065
11065
14094
14094
14094A
14094A
14094B
14094B
14094C
14094C
14094D
14094D
14094E
14094E
14094F
14094F
32097
32097
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
36001
36001
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156C
39156C
39156D
39156D
39188
39188
53044
53044
53044
53044
55020
55020
55020A
55020A
92072
92072
92075
92075
92075
92075
92075
92075
92152
92152
92152A
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92152B
92152B
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92154D
92154D
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92210
92210
130
130
311
311
311
311
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STEP STAY 11058 11058-2831 1
CAP,FRAME COVER 11065 11065-1461 2
COVER,PIVOT,LH,EBONY 14094 14094-0130-H8 1
COVER,PIVOT,RH,EBONY 14094A 14094-0131-H8 1
COVER,CANISTER 14094B 14094-0136 1
COVER,FRAME,LH,P.BLUE 14094C 14094-0425-65E 1
COVER,FRAME,LH,EBONY 14094D 14094-0425-H8 1
COVER,FRAME,RH,P.BLUE 14094E 14094-0426-65E 1
COVER,FRAME,RH,EBONY 14094F 14094-0426-H8 1
CASE-BATTERY 32097 32097-0574 1
STAY,STEP,FR,LH,F.S.BLACK 35063 35063-1399-18R 1
STAY,STEP,RR,LH,F.S.BLACK 35063A 35063-1452-18R 1
STAY,STEP,RR,RH,F.S.BLACK 35063B 35063-1453-18R 1
STAY,STEP,FR,RH,F.S.BLACK 35063C 35063-1610-18R 1
COVER-SIDE 36001 36001-0778 1
PAD,15X55X15 39156 39156-2129 1
PAD,15X15X2 39156A 39156-2511 1
PAD,70X30X1 39156B 39156-2535 1
PAD,100X50X5 39156C 39156-2543 2
PAD,55X25X25 39156D 39156-2916 1
TAPE 39188 39188-0616 1
TRIM 53044 53044-0577 2
GUARD,HEEL,LH 55020 55020-2487 1
GUARD,HEEL,RH 55020A 55020-2488 1
BAND,TOOL CASE 92072 92072-0865 1
DAMPER 92075 92075-1409 6
COLLAR,6.5X10X6.4 92152 92152-2287 2
COLLAR,5.7X8.5X4.5 92152A 92152-2354 2
COLLAR 92152B 92152-2682 6
BOLT,SOCKET,5X12 92154 92154-0917 2
BOLT,SOCKET,8X28 92154A 92154-2334 8
BOLT,SOCKET,6X14 92154B 92154-4286 4
BOLT,SOCKET,5X12 92154C 92154-4289 8
BOLT,SOCKET,6X20 92154D 92154-7441 6
DAMPER 92161 92161-0864 2
DAMPER,12X23 92161A 92161-1367 1
DAMPER 92161B 92161-1810 2
DAMPER 92161C 92161-2717 1
WASHER,5.2X10X1 92200 92200-2286 6
WASHER,6.5X16X1.0 92200A 92200-2390 4
NUT 92210 92210-0571 1
BOLT-FLANGED,5X12 130 130BC0512 1
NUT-HEX,6MM 311 311AA0600 6
