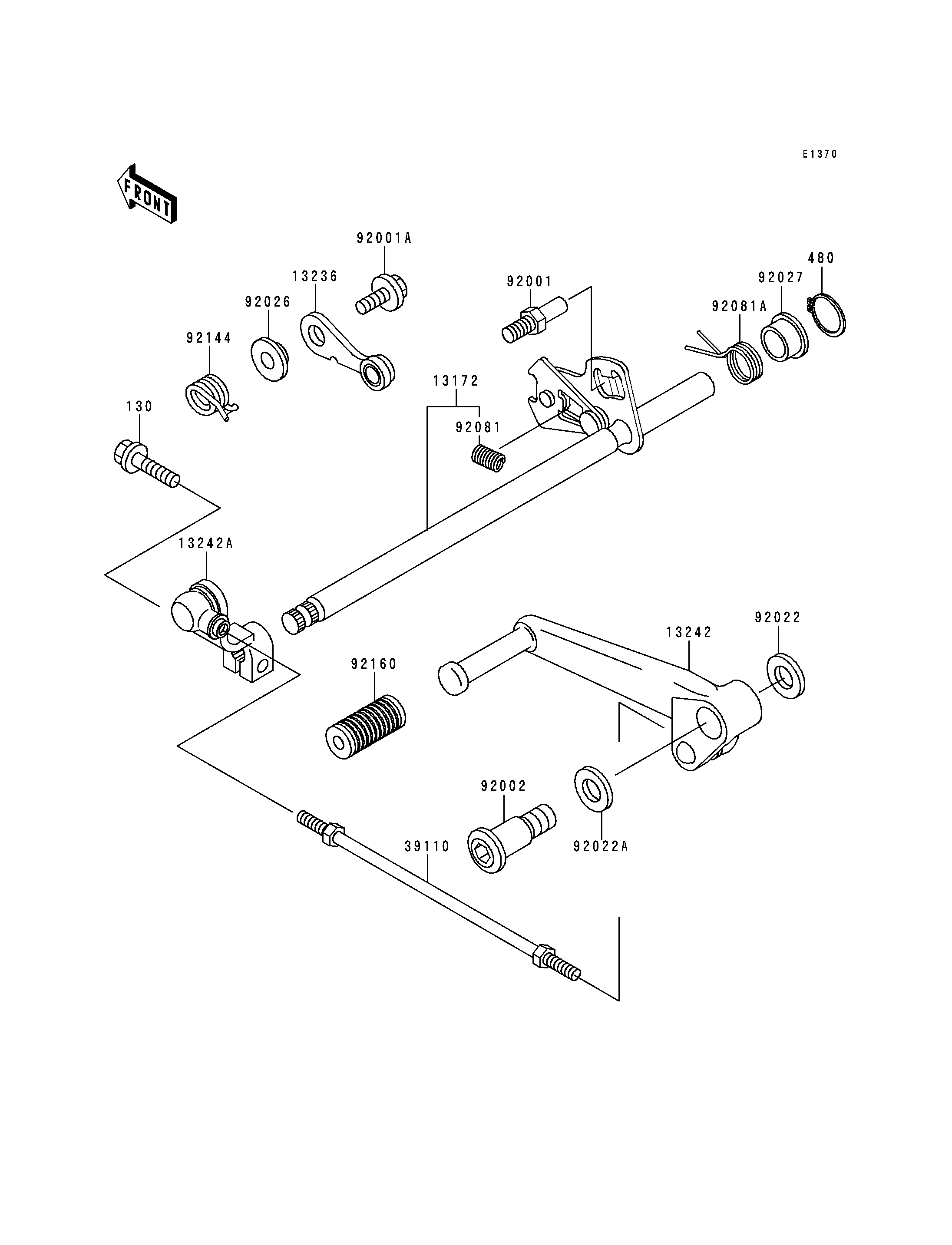

1996 Ninja® ZX™-6 - Gear Change Mechanism
130
480
13172
13236
13242
13242A
39110
92001
92001A
92002
92022
92022A
92026
92027
92081
92081A
92144
92160
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X20,BLACK | 130 | 130S0620 | 1 | ||
CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
SHAFT-ASSY-CHANGE | 13172 | 13172-1072 | 1 | ||
LEVER-COMP,NEUTRAL POSITION | 13236 | 13236-1209 | 1 | ||
LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1305 | 1 | ||
LEVER-ASSY-CHANGE,LINK | 13242A | 13242-1306 | 1 | ||
ROD-ASSY-TIE,CHANGE LEVER | 39110 | 39110-1010 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
BOLT,W/WASHER,6X12 | 92001A | 92001-1516 | 1 | ||
BOLT,CHANGE PEDAL | 92002 | 92002-1926 | 1 | ||
WASHER,8.5X20X1.6 | 92022 | 92022-1561 | 1 | ||
WASHER,12.5X22X1.2 | 92022A | 92022-1593 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
COLLAR,L=10.6 | 92027 | 92027-1801 | 1 | ||
SPRING,CHANGE LEVER | 92081 | 92081-1275 | 1 | ||
SPRING,CHANGE LEVER RETURN | 92081A | 92081-1279 | 1 | ||
SPRING,RETURN | 92144 | 92144-1693 | 1 | ||
DAMPER,CHANGE PEDAL | 92160 | 92160-1036 | 1 |
