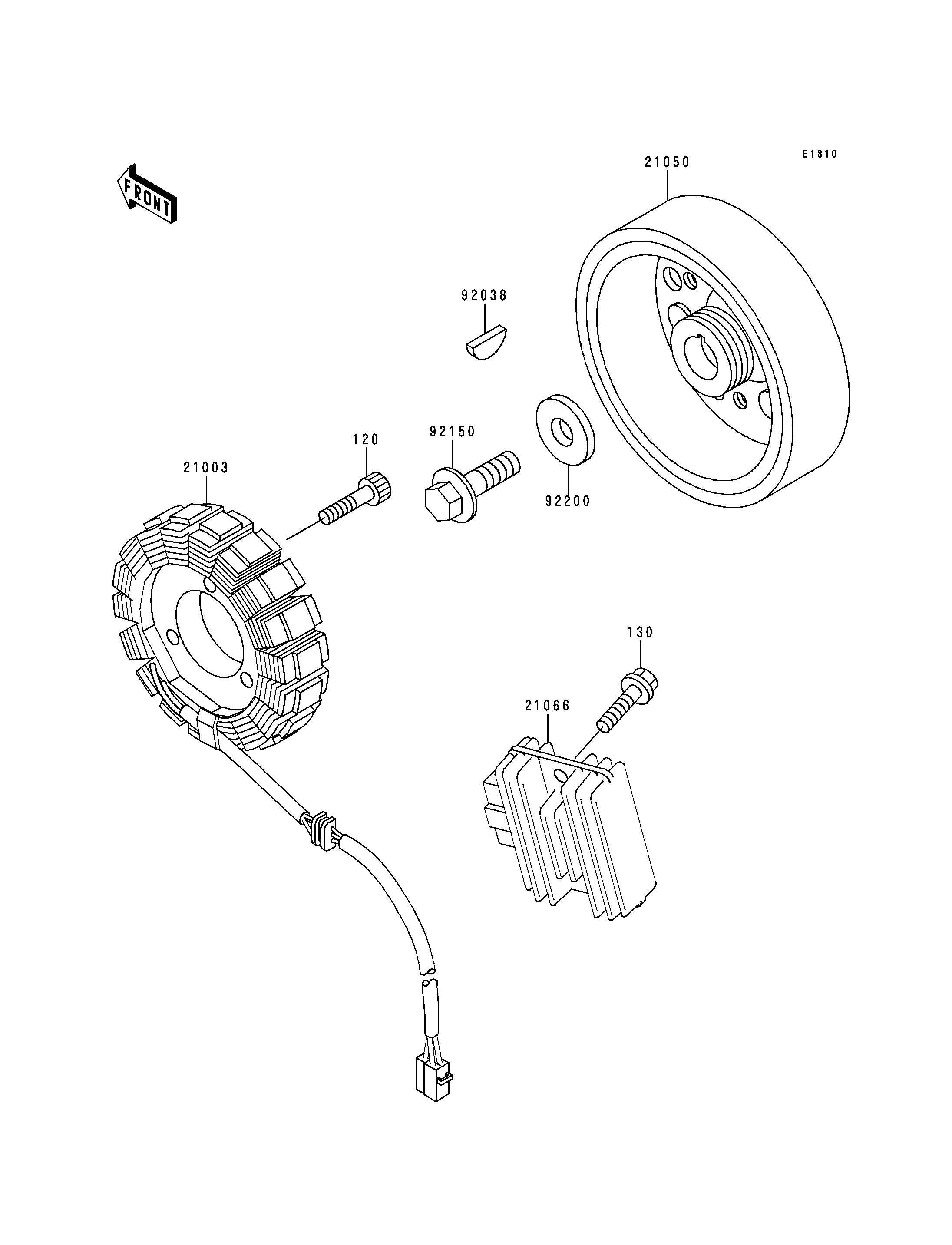

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120P0625 3
BOLT-FLANGED 130 130H0620 2
STATOR 21003 21003-1214 1
FLYWHEEL 21050 21050-1146 1
REGULATOR-VOLTAGE 21066 21066-1089 1
KEY,WOODRUFF 92038 92038-001 1
BOLT,10X32 92150 92150-1134 1
WASHER,10X30X4 92200 92200-1185 1
