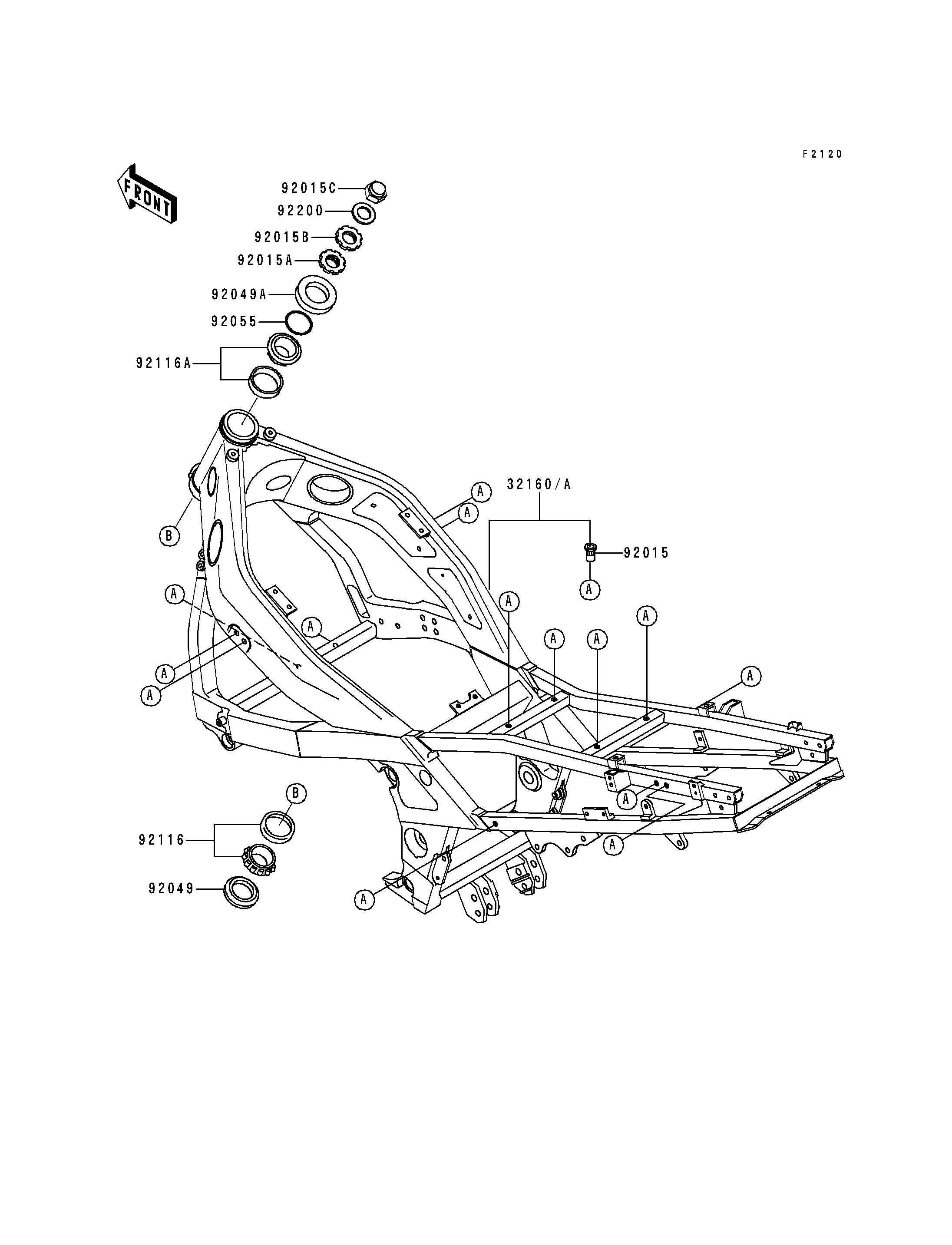

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,POP,6MM,L=15 92015 92015-1791 14
NUT,25MM 92015A 92015-1803 1
NUT,25MM 92015B 92015-1810 1
NUT,CAP,22MM 92015C 92015-1873 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,XMH33 70 6.4J-A 92049A 92049-1313 1
RING-O,ID=24.5 92055 92055-1459 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HI-CAP32005JR-1 92116A 92116-1056 1
WASHER,22.5X36X3.2 92200 92200-1126 1
FRAME-COMP,AL,SILVER NO.35 32160 32160-1387-TX 1 CN
FRAME-COMP,AL,SILVER NO.35 32160A 32160-1387-VZ 1 CAUS
