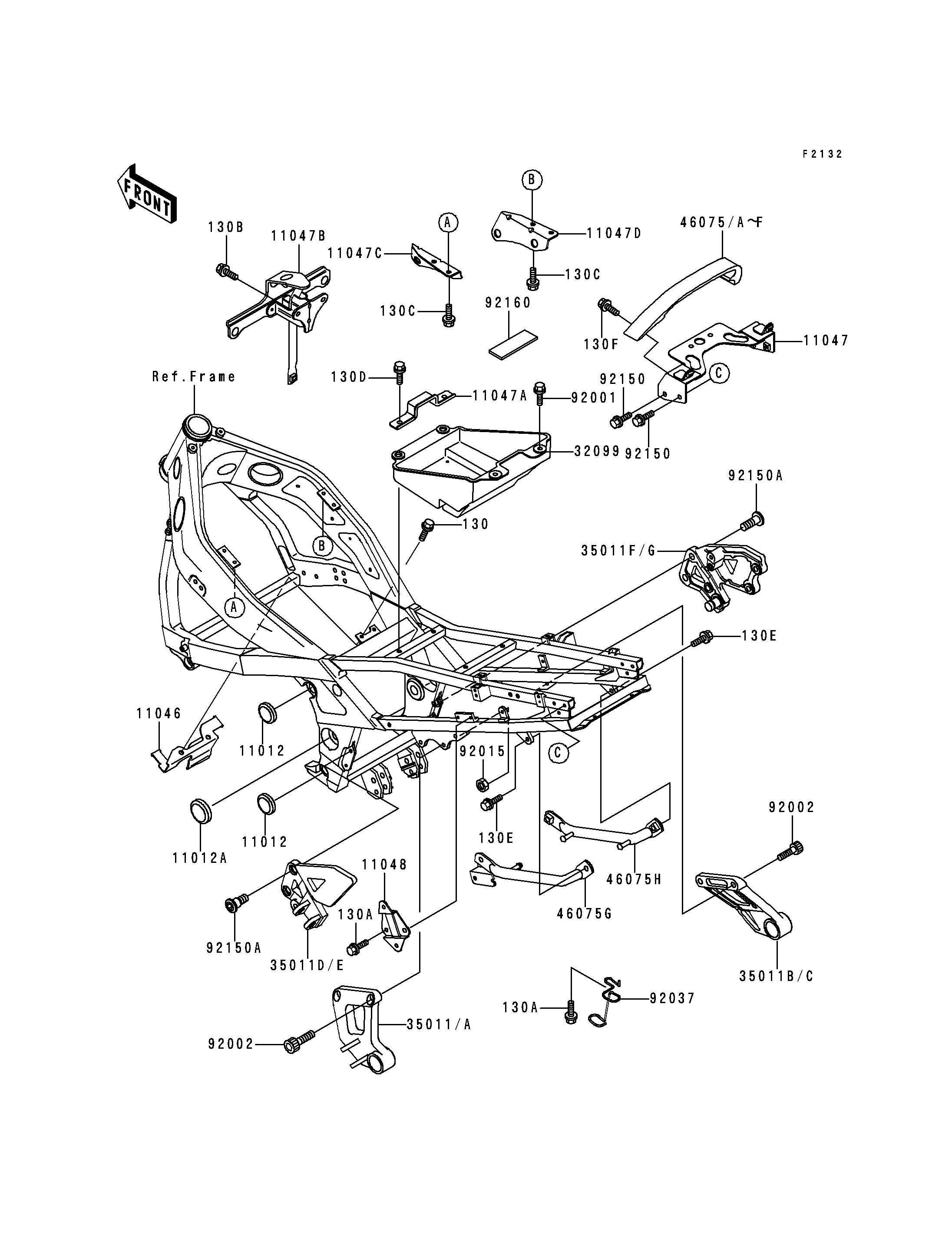

1996 Ninja® ZX™-6 - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012A
11012A
11046
11046
11047
11047
11047A
11047A
11047B
11047B
11047C
11047C
11047D
11047D
11048
11048
32099
32099
46075B
46075B
46075G
46075G
46075H
46075H
92001
92001
130
130
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
130D
130D
130E
130E
130E
130E
130F
130F
92002
92002
92002
92002
92015
92015
92037
92037
92150
92150
92150
92150
92150A
92150A
92150A
92150A
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1460 4
CAP 11012A 11012-1657 2
BRACKET,FUEL PUMP 11046 11046-1987 1
BRACKET,TAIL GRIP 11047 11047-1923 1
BRACKET,STORAGE CASE 11047A 11047-1924 1
BRACKET,OIL COOLER 11047B 11047-1927 1
BRACKET,IGNITION COIL,LH 11047C 11047-1928 1
BRACKET,IGNITION COIL,RH 11047D 11047-1929 1
BRACKET,REGULATOR 11048 11048-1206 1
CASE,STORAGE 32099 32099-1142 1
GRIP,TAIL,EBONY 46075B 46075-1103-H8 1
GRIP,FRAME,LH 46075G 46075-1105 1
GRIP,FRAME,RH 46075H 46075-1106 1
BOLT,6X20 92001 92001-1826 2
BOLT-FLANGED 130 130D0612 2
BOLT-FLANGED 130A 130J0610 3
BOLT-FLANGED,6X14,BLACK 130B 130J0614 2
BOLT-FLANGED,6X16,BLACK 130C 130J0616 4
BOLT-FLANGED 130D 130J0620 2
BOLT-FLANGED,8X20 130E 130J0820 4
BOLT-FLANGED,8X25,BLACK 130F 130J0825 2
BOLT,SOCKET,8X25 92002 92002-1442 4
NUT,FLANGED,8MM,BLACK 92015 92015-1183 4
CLAMP,HOSE 92037 92037-1875 1
BOLT,6X30 92150 92150-1694 4
BOLT,SOCKET,8X20 92150A 92150-1839 4
DAMPER,BATTERY 92160 92160-1094 1
STAY,RR,LH,SILVER NO.35 35011 35011-1629-TX 1 CN
STAY,RR,LH,SILVER NO.35 35011A 35011-1629-VZ 1 CAUS
STAY,RR,RH,SILVER NO.35 35011B 35011-1630-TX 1 CN
STAY,RR,RH,SILVER NO.35 35011C 35011-1630-VZ 1 CAUS
STAY,FR,LH,SILVER NO.35 35011D 35011-1638-TX 1 CN
STAY,FR,LH,SILVER NO.35 35011E 35011-1638-VZ 1 CAUS
STAY,FR,RH,SILVER NO.35 35011F 35011-1639-TX 1 CN
STAY,FR,RH,SILVER NO.35 35011G 35011-1639-VZ 1 CAUS
