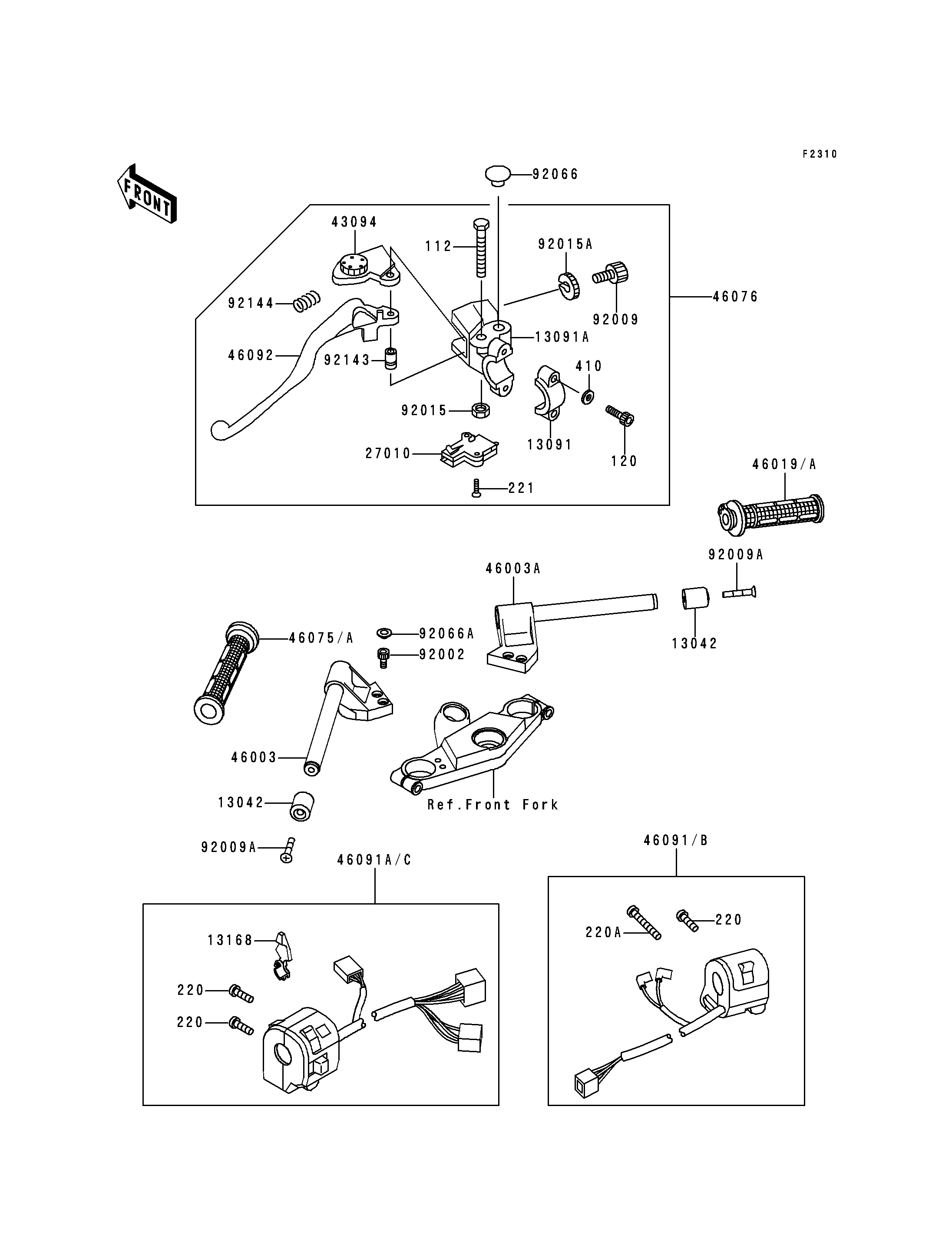

1996 Ninja® ZX™-6 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
220
220
220
220A
221
410
13042
13042
13091
13091A
13168
27010
43094
46003
46003A
46019
46075
46076
46091
46091A
46092
92002
92009
92009A
92009A
92015
92015A
92066
92066A
92143
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112C0640 1
BOLT-SOCKET,6X20 120 120S0620 2
SCREW-PAN-CROS 220 220C0525 3
SCREW-PAN-CROS 220A 220C0540 1
SCREW-CSK-CROS 221 221C0316 2
WASHER-PLAIN-SMALL,6MM,BLACK 410 410F0600 2
WEIGHT,HANDLE 13042 13042-1069 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13091A 13091-1652 1
LEVER,CHOKE 13168 13168-1516 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE,LH,C.GRAY 46003 46003-1415-EZ 1
HANDLE,RH,C.GRAY 46003A 46003-1416-EZ 1
GRIP-ASSY,THROTTLE 46019 46019-1077 1
GRIP,LH 46075 46075-1088 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1165 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1663 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1665 1
LEVER-GRIP,CLUTCH 46092 46092-1161 1
BOLT,SOCKET,8X20 92002 92002-1178 4
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
SCREW,8X45 92009A 92009-1257 2
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
PLUG 92066A 92066-1277 4
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
