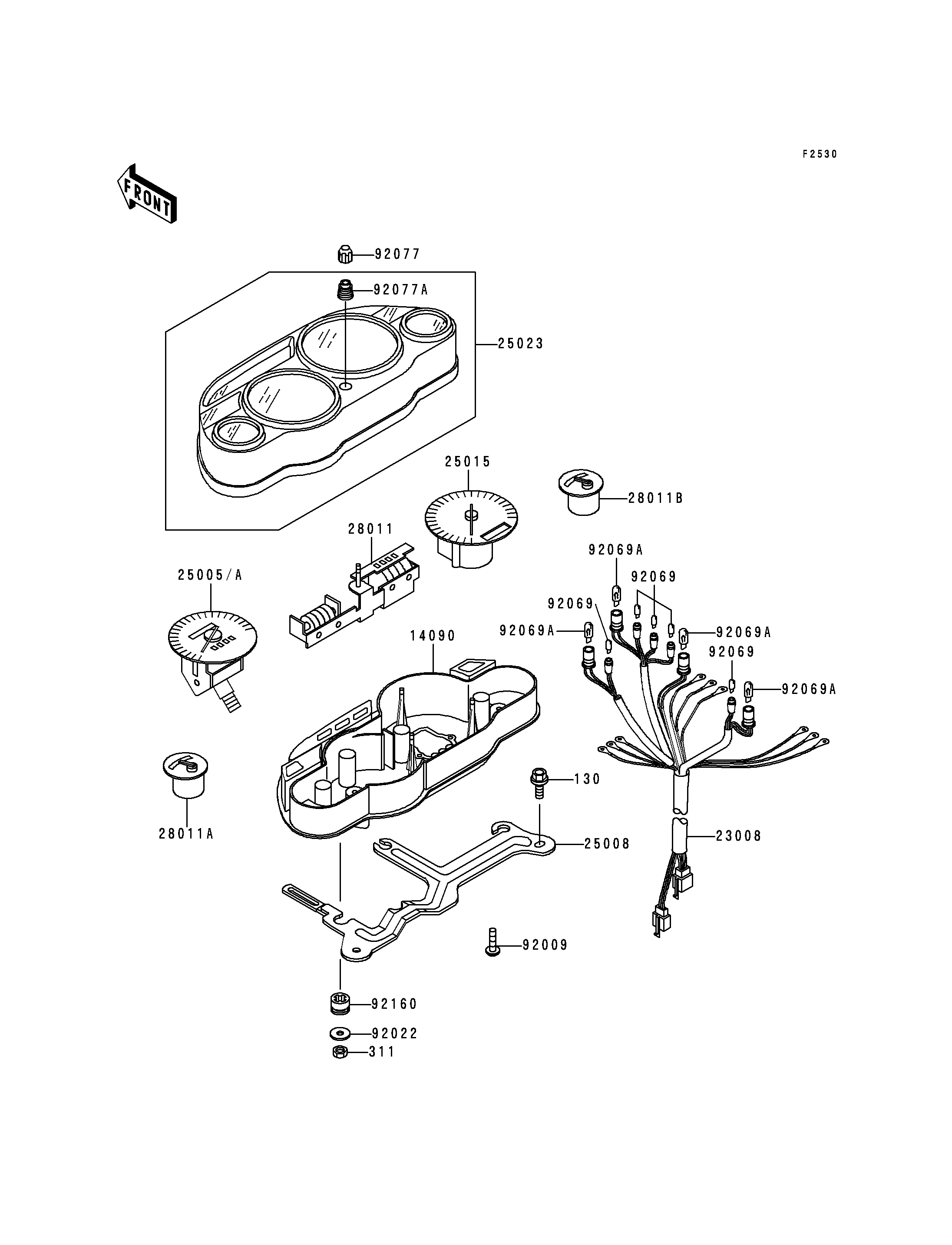

1996 Ninja® ZX™-6 - Meter(s)(ZX600-E4)

DOWNLOAD PDF
SELECT A NEW PART
130
311
14090
23008
25008
25015
25023
28011
28011A
28011B
92009
92022
92069
92069
92069
92069A
92069A
92069A
92069A
92077
92077A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 2
NUT-HEX,6MM 311 311B0600 3
COVER,METER HOUSING 14090 14090-1286 1
SOCKET-ASSY,METER 23008 23008-1504 1
BRACKET-METER 25008 25008-1195 1
TACHOMETER,X1000R/MIN 25015 25015-1318 1
COVER-METER CASE,UPP 25023 25023-1201 1
METER,TRIP 28011 28011-1130 1
METER,FUEL 28011A 28011-1131 1
METER,TEMP 28011B 28011-1132 1
SCREW,TAPPING,4X14 92009 92009-1503 4
WASHER,6.2X18X1.2 92022 92022-1369 3
BULB,12V 3.4W 92069 92069-1007 5
BULB,12V 1.7W 92069A 92069-1059 4
KNOB,TRIP RESET 92077 92077-1094 1
KNOB,TRIP RESET 92077A 92077-1112 1
DAMPER 92160 92160-1436 3
SPEEDOMETER,KPH 25005 25005-1529 1 CN
SPEEDOMETER,MPH 25005A 25005-1530 1 CAUS
