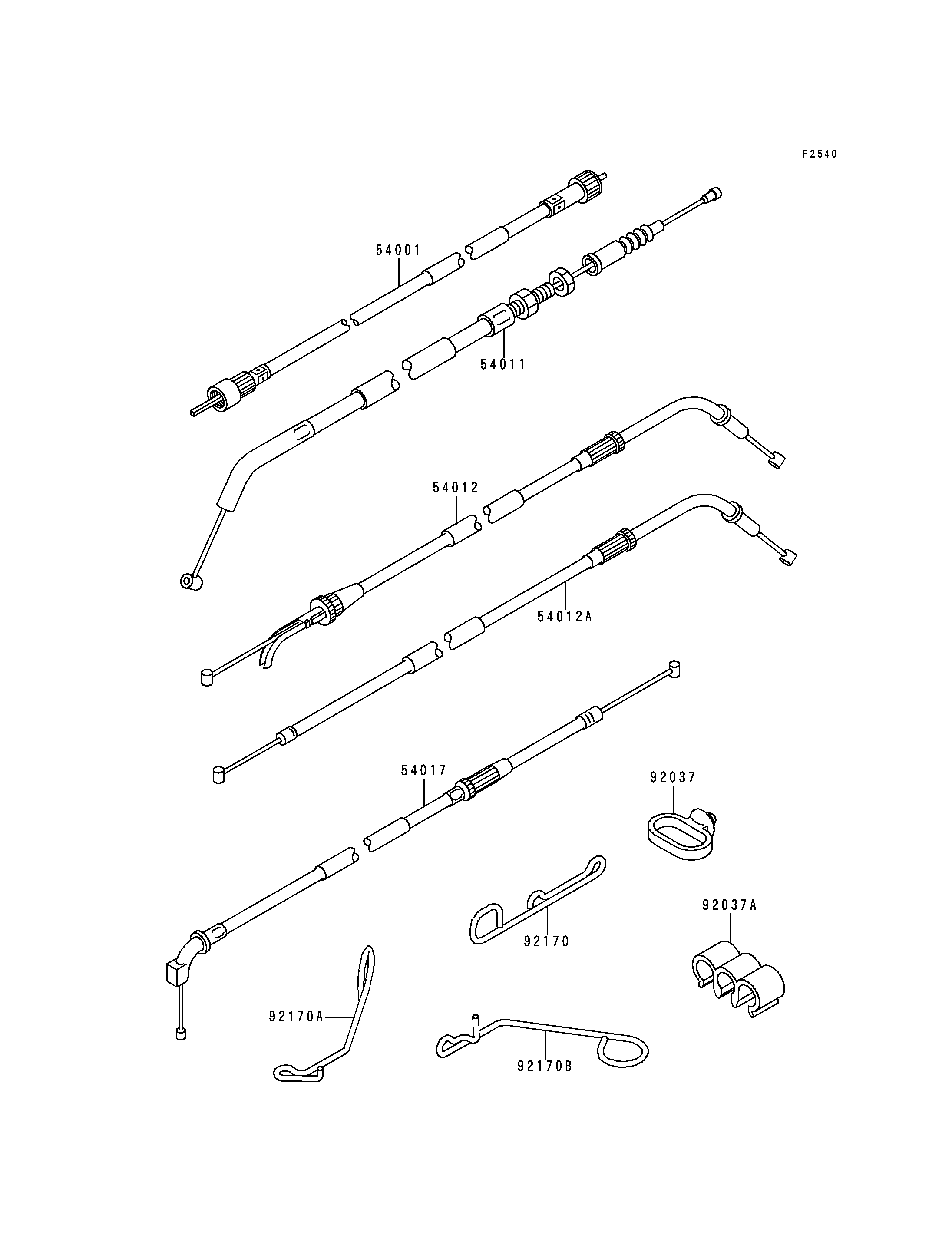

54001
54011
54012
54012A
54017
92037
92037A
92170
92170A
92170B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDOMETER 54001 54001-1195 1
CABLE-CLUTCH 54011 54011-1326 1
CABLE-THROTTLE,OPENING 54012 54012-1470 1
CABLE-THROTTLE,CLOSING 54012A 54012-1471 1
CABLE-STARTER 54017 54017-1154 1
CLAMP,CABLE 92037 92037-1459 1
CLAMP,CABLE 92037A 92037-1697 1
CLAMP,CABLE 92170 92170-1398 1
CLAMP,CABLE 92170A 92170-1399 1
CLAMP,CABLE 92170B 92170-1430 1
