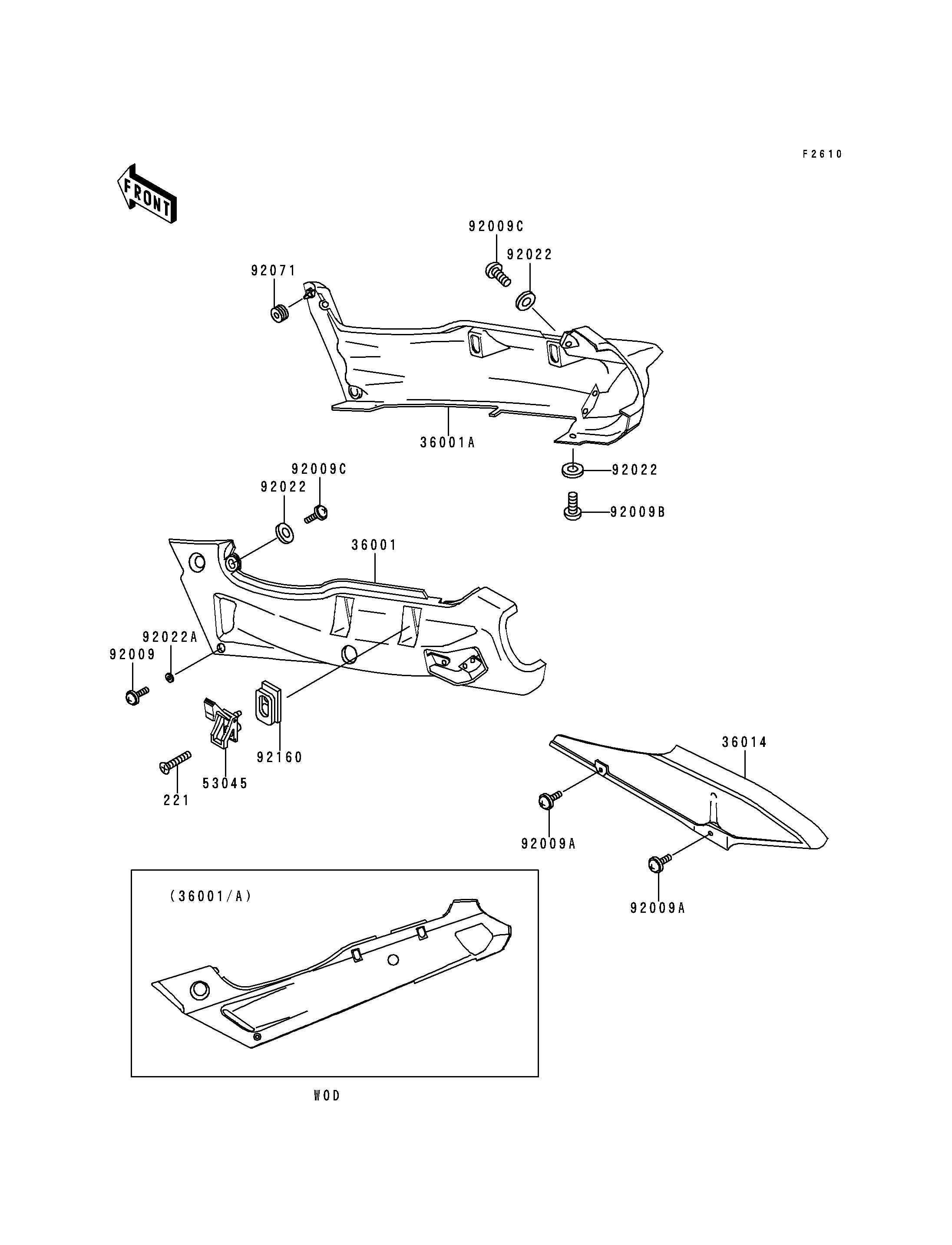

1996 Ninja® ZX™-6 - Side Covers/Chain Cover(ZX600-E4)
36001
36001
36001A
36001A
36014
36014
221
221
53045
53045
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92022
92022
92022
92022
92022
92022
92022A
92022A
92071
92071
92160
92160
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,EBONY | 36001 | 36001-1493-H8 | 1 | ||
| COVER-SIDE,RH,EBONY | 36001A | 36001-1494-H8 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1187 | 1 | ||
| SCREW-CSK-CROS,6X20 | 221 | 221E0620 | 4 | ||
| HOOK-ASSY,TOOL BOX | 53045 | 53045-1053 | 4 | ||
| SCREW,6X20 | 92009 | 92009-1298 | 2 | ||
| SCREW,6X10 | 92009A | 92009-1402 | 2 | ||
| SCREW,5X14 | 92009B | 92009-1653 | 2 | ||
| SCREW,5X20 | 92009C | 92009-1656 | 4 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
| WASHER,6.5X16X1.0 | 92022A | 92022-1654 | 2 | ||
| GROMMET | 92071 | 92071-056 | 2 | ||
| DAMPER,ROPE HOOK | 92160 | 92160-1042 | 4 |
| COVER-SIDE,LH,EBONY | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,EBONY | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,6X20 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOOK-ASSY,TOOL BOX | |
| REF # | 53045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X14 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20 | |
| REF # | 92009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ROPE HOOK | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
