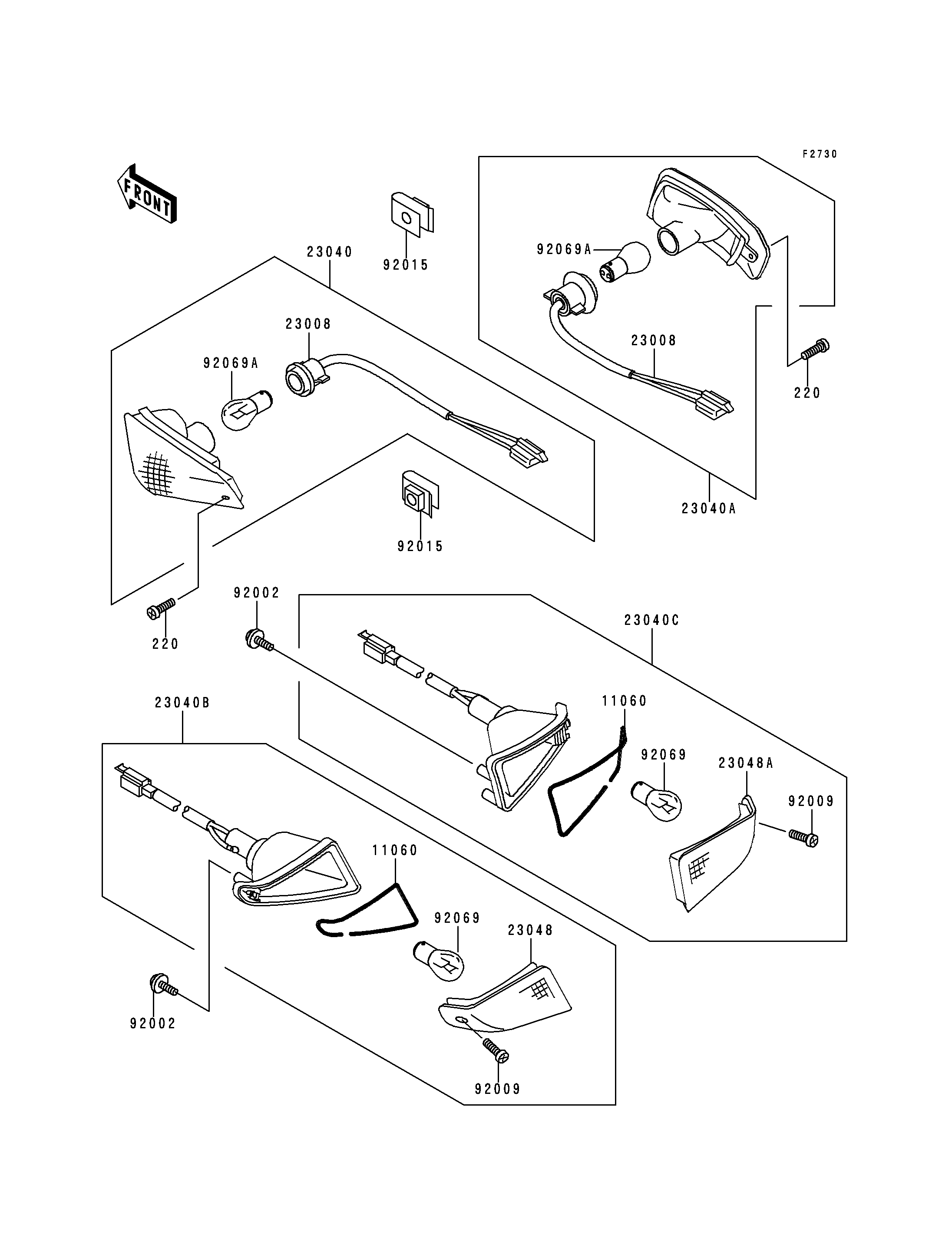

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
220
220
11060
11060
23008
23008
23040
23040A
23040B
23040C
23048
23048A
92002
92002
92009
92009
92015
92015
92069
92069
92069A
92069A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,4X25 | 220 | 220D0425 | 2 | ||
| GASKET,SIGNAL LAMP LENS | 11060 | 11060-1322 | 2 | ||
| SOCKET-ASSY,SIGNAL LAMP,FR | 23008 | 23008-1514 | 2 | ||
| LAMP-SIGNAL,FR,LH | 23040 | 23040-1237 | 1 | ||
| LAMP-SIGNAL,FR,RH | 23040A | 23040-1238 | 1 | ||
| LAMP-SIGNAL,RR,LH | 23040B | 23040-1243 | 1 | ||
| LAMP-SIGNAL,RR,RH | 23040C | 23040-1244 | 1 | ||
| LENS-SIGNAL LAMP,RR,LH | 23048 | 23048-1144 | 1 | ||
| LENS-SIGNAL LAMP,RR,RH | 23048A | 23048-1145 | 1 | ||
| BOLT,TAPPING,5X16 | 92002 | 92002-1472 | 6 | ||
| SCREW,TAPPING,4X14,YELLOW | 92009 | 92009-1140 | 2 | ||
| NUT,4MM | 92015 | 92015-1834 | 2 | ||
| BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
| BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 |
| SCREW-PAN-CROS,4X25 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,SIGNAL LAMP LENS | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,SIGNAL LAMP,FR | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LAMP-SIGNAL,FR,LH | |
| REF # | 23040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-SIGNAL,FR,RH | |
| REF # | 23040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-SIGNAL,RR,LH | |
| REF # | 23040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-SIGNAL,RR,RH | |
| REF # | 23040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP,RR,LH | |
| REF # | 23048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP,RR,RH | |
| REF # | 23048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,TAPPING,5X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X14,YELLOW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,4MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32CP(23W) | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP(23/8W) | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
