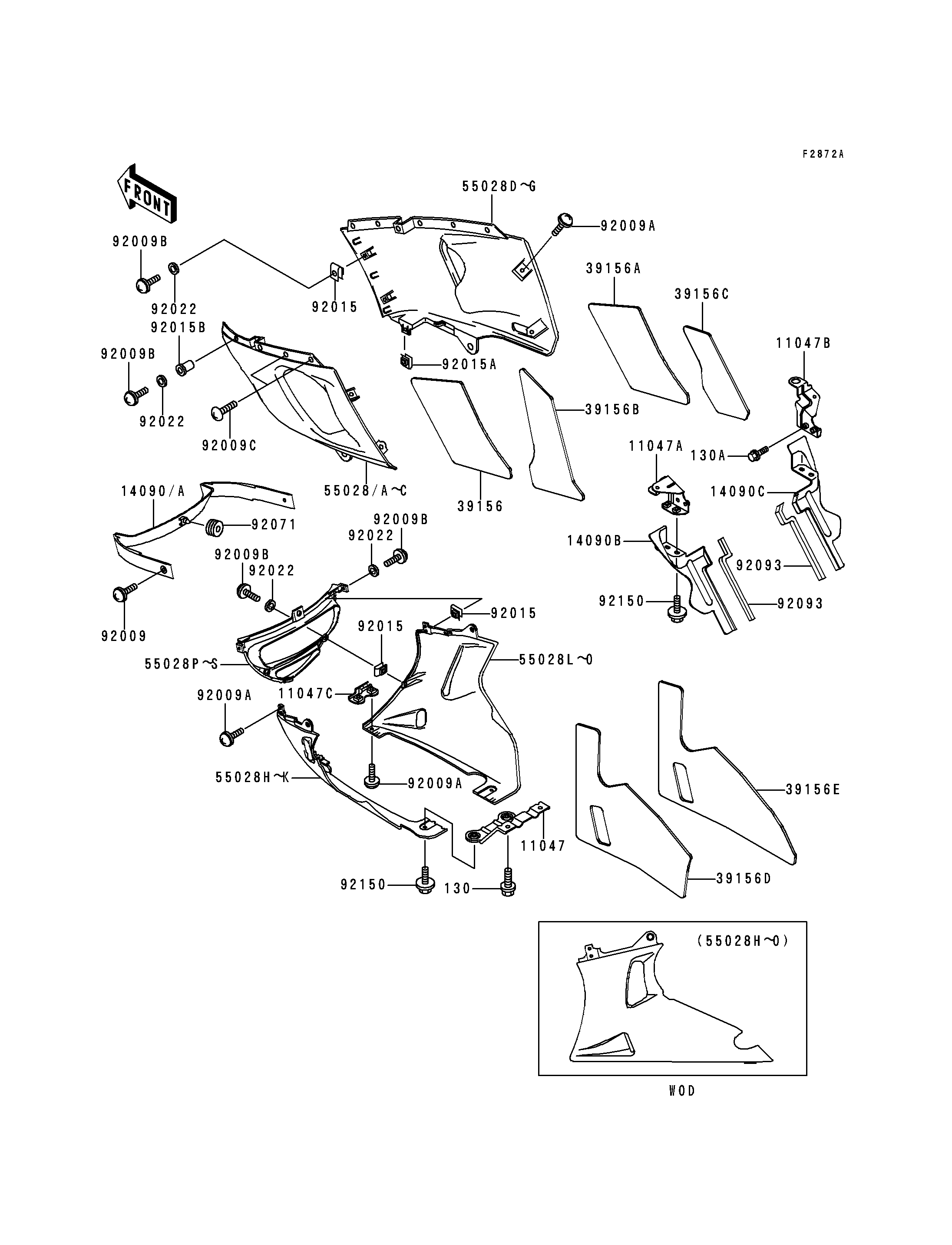

1997 Ninja® ZX™-6 - Cowling Lowers(ZX600-E5)

DOWNLOAD PDF
SELECT A NEW PART
11047
11047
11047
11047A
11047A
11047A
11047B
11047B
11047B
11047C
11047C
11047C
14090B
14090B
14090B
14090C
14090C
14090C
39156
39156
39156
39156A
39156A
39156A
39156B
39156B
39156B
39156C
39156C
39156C
39156D
39156D
39156D
39156E
39156E
39156E
130
130
130
130A
130A
130A
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009B
92009C
92009C
92009C
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015B
92015B
92015B
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92071
92071
92071
92093
92093
92093
92093
92093
92093
92150
92150
92150
92150
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWLING 11047 11047-1091 1
BRACKET,CNT COWLING,LH 11047A 11047-1936 1
BRACKET,CNT COWLING,RH 11047B 11047-1937 1
BRACKET,LWR COWLING,FR 11047C 11047-1938 1
COVER,HEAT GUARD,LH 14090B 14090-1292 1
COVER,HEAT GUARD,RH 14090C 14090-1293 1
PAD,CNT COWLING,LH,FR 39156 39156-1368 1
PAD,CNT COWLING,RH,FR 39156A 39156-1369 1
PAD,CNT COWLING,LH,RR 39156B 39156-1370 1
PAD,CNT COWLING,RH,RR 39156C 39156-1371 1
PAD,LWR COWLING,LH 39156D 39156-1372 1
PAD,LWR COWLING,RH 39156E 39156-1373 1
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED 130A 130J0620 4
SCREW,6X14,WHITE 92009 92009-1287 2
SCREW,6X16 92009A 92009-1621 6
SCREW,5X16 92009B 92009-1654 15
SCREW,5X20 92009C 92009-1656 4
NUT,5MM 92015 92015-1573 8
NUT,6MM 92015A 92015-1602 2
NUT,WELL,5MM 92015B 92015-1757 10
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 15
GROMMET 92071 92071-056 1
SEAL 92093 92093-1351 2
BOLT,6X14 92150 92150-1133 6
COVER,CNT,SILVER NO.35 14090 14090-1263-TX 1 CN
COVER,CNT,SILVER NO.35 14090A 14090-1263-VZ 1 CAUS
COWLING,CNT,LH,L.W.GREEN 55028 55028-1293-DS 1 CN
COWLING,CNT,LH,C.W.RED 55028A 55028-1293-H3 1 CN
COWLING,CNT,LH,C.W.RED 55028B 55028-1293-TF 1 CAUS
COWLING,CNT,LH,L.W.GREEN 55028C 55028-1293-24 1 CAUS
COWLING,CNT,RH,L.W.GREEN 55028D 55028-1294-DS 1 CN
COWLING,CNT,RH,C.W.RED 55028E 55028-1294-H3 1 CN
COWLING,CNT,RH,C.W.RED 55028F 55028-1294-TF 1 CAUS
COWLING,CNT,RH,L.W.GREEN 55028G 55028-1294-24 1 CAUS
COWLING,LWR,LH,L.W.GREEN 55028H 55028-1295-DS 1 CN
COWLING,LWR,LH,C.W.RED 55028I 55028-1295-H3 1 CN
COWLING,LWR,LH,C.W.RED 55028J 55028-1295-TF 1 CAUS
COWLING,LWR,LH,L.W.GREEN 55028K 55028-1295-24 1 CAUS
COWLING,LWR,RH,L.W.GREEN 55028L 55028-1296-DS 1 CN
COWLING,LWR,RH,C.W.RED 55028M 55028-1296-H3 1 CN
COWLING,LWR,RH,C.W.RED 55028N 55028-1296-TF 1 CAUS
COWLING,LWR,RH,L.W.GREEN 55028O 55028-1296-24 1 CAUS
COWLING,LWR,FR,L.W.GREEN 55028P 55028-1297-DS 1 CN
COWLING,LWR,FR,C.W.RED 55028Q 55028-1297-H3 1 CN
COWLING,LWR,FR,C.W.RED 55028R 55028-1297-TF 1 CAUS
COWLING,LWR,FR,L.W.GREEN 55028S 55028-1297-24 1 CAUS
