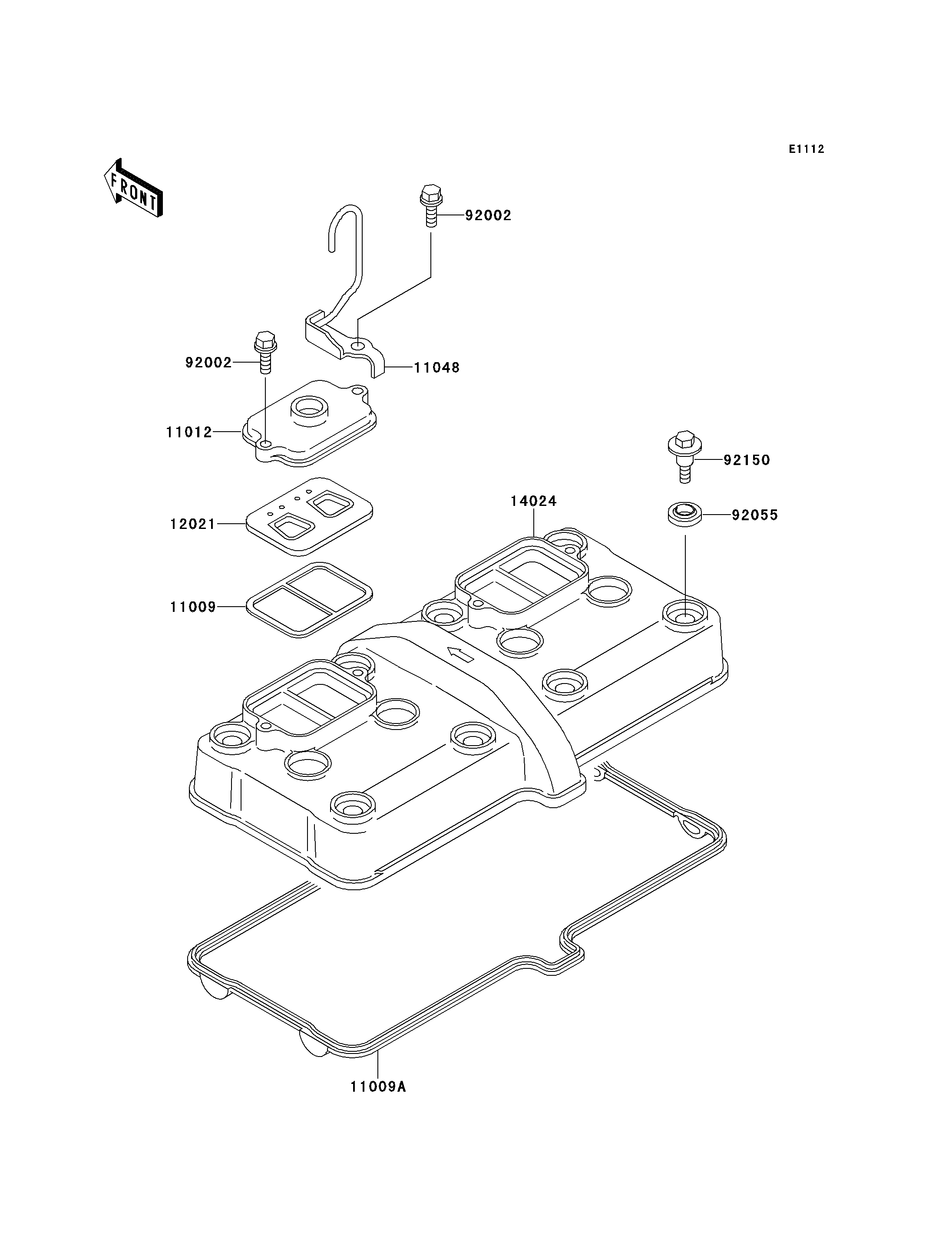

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1857 2
GASKET,HEAD COVER 11009A 11009-1991 1
CAP,REED VALVE 11012 11012-1758 2
BRACKET,THROTTLE CABLE 11048 11048-1204 1
VALVE-ASSY-REED 12021 12021-1053 2
COVER,HEAD 14024 14024-1875 1
BOLT,6X20 92002 92002-1237 4
RING-O,HEAD COVER BOLT 92055 92055-1352 8
BOLT,HEAD COVER 92150 92150-1447 8
