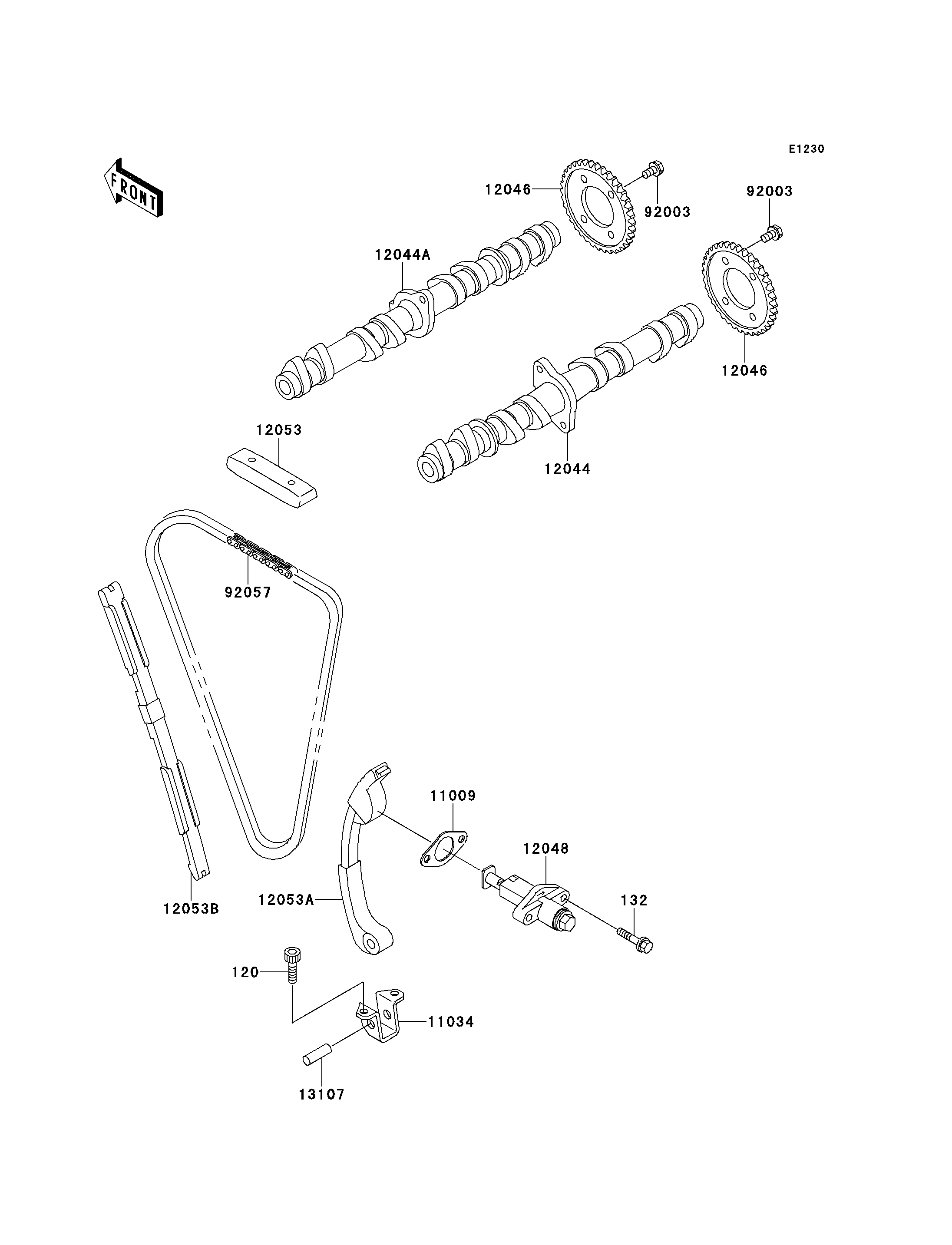

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X18 120 120P0618 2
BOLT-FLANGED-SMALL 132 132J0625 2
GASKET,TENSIONER 11009 11009-1858 1
BRACKET,CHAIN GUIDE 11034 11034-1240 1
CAMSHAFT-VALVE,INTAKE 12044 12044-1391 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-1392 1
SPROCKET,CAMCHAIN,42T 12046 12046-1121 2
TENSIONER-ASSY 12048 12048-1126 1
GUIDE-CHAIN 12053 12053-1274 1
GUIDE-CHAIN 12053A 12053-1275 1
GUIDE-CHAIN 12053B 12053-1279 1
SHAFT,8X25 13107 13107-1142 1
BOLT,FLANGED,6X11 92003 92003-208 4
CHAIN,CAM,82RH2015,132L 92057 92057-1297 1
