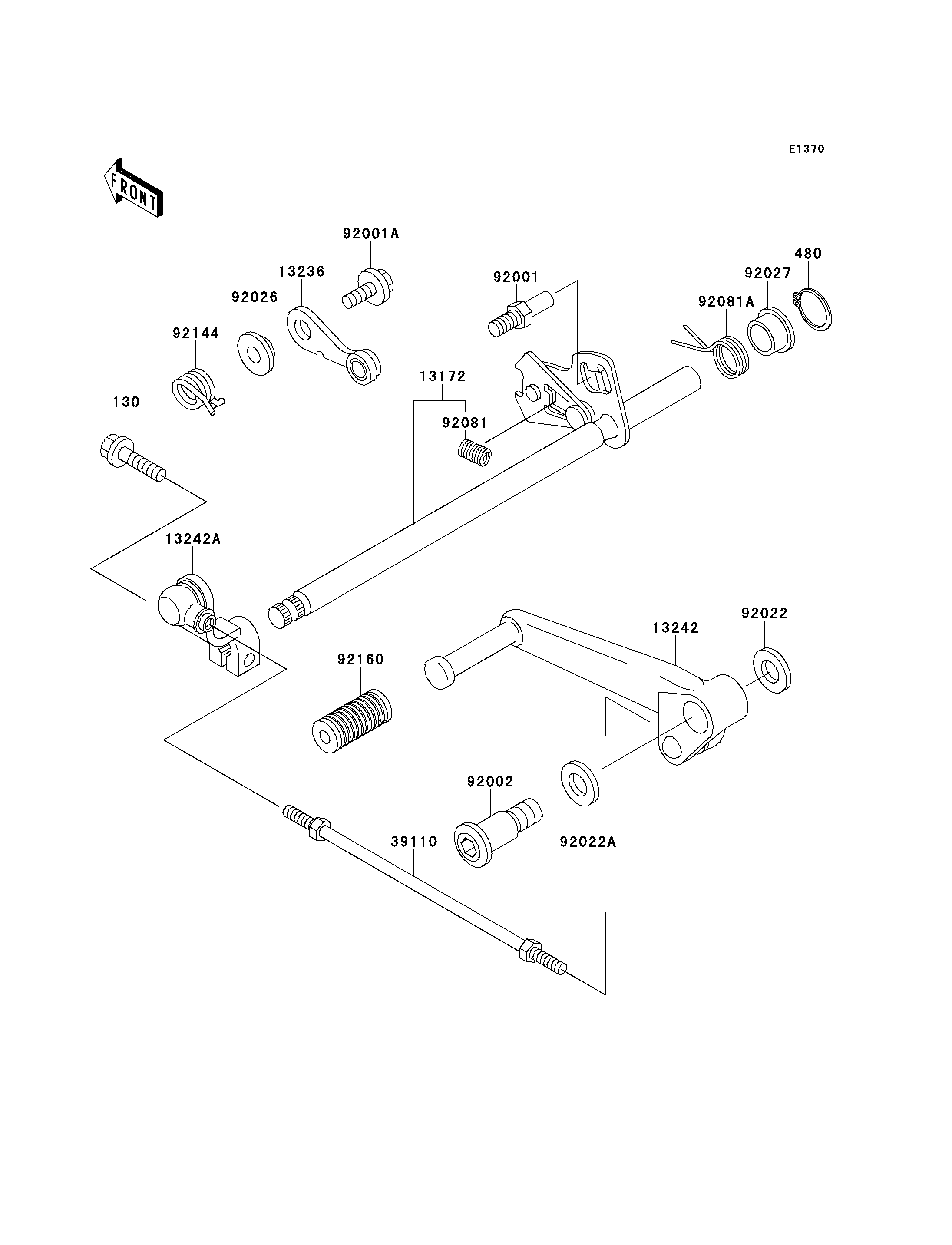

1999 Ninja® ZX™-6 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
480
13172
13236
13242
13242A
39110
92001
92001A
92002
92022
92022A
92026
92027
92081
92081A
92144
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20,BLACK 130 130S0620 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
SHAFT-ASSY-CHANGE 13172 13172-1072 1
LEVER-COMP,NEUTRAL POSITION 13236 13236-1209 1
LEVER-ASSY-CHANGE,PEDAL 13242 13242-1305 1
LEVER-ASSY-CHANGE,LINK 13242A 13242-1306 1
ROD-ASSY-TIE,CHANGE LEVER 39110 39110-1010 1
BOLT,RETURN SPRING 92001 92001-1455 1
BOLT,W/WASHER,6X12 92001A 92001-1516 1
BOLT,CHANGE PEDAL 92002 92002-1926 1
WASHER,8.5X20X1.6 92022 92022-1561 1
WASHER,12.5X22X1.2 92022A 92022-1593 1
SPACER 92026 92026-1217 1
COLLAR,L=10.6 92027 92027-1801 1
SPRING,CHANGE LEVER 92081 92081-1275 1
SPRING,CHANGE LEVER RETURN 92081A 92081-1279 1
SPRING,RETURN 92144 92144-1693 1
DAMPER,CHANGE PEDAL 92160 92160-1036 1
