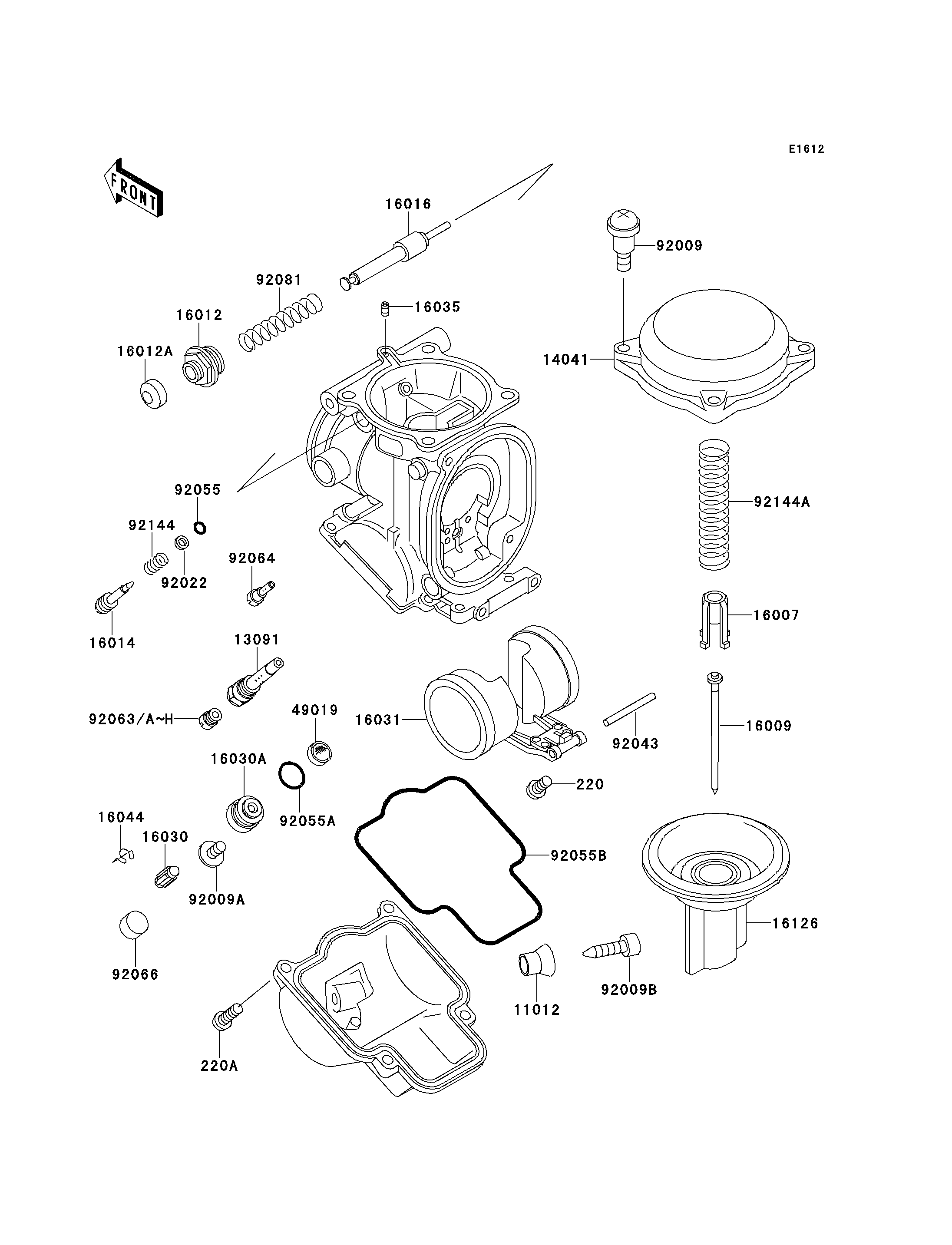

1999 Ninja® ZX™-6 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
13091
13091
14041
14041
16007
16007
16009
16009
16012
16012
16012A
16012A
16014
16014
16016
16016
16030
16030
16030A
16030A
16031
16031
16035
16035
16044
16044
16126
16126
49019
49019
92009
92009
92009A
92009A
92009B
92009B
92022
92022
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92063A
92063A
92063C
92063C
92063D
92063D
220
220
220A
220A
92064
92064
92066
92066
92081
92081
92144
92144
92144A
92144A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,DRAIN SCREW 11012 11012-1675 4
HOLDER,NEEDLE JET 13091 13091-1847 4
CAP-CHAMBER,MIXING 14041 14041-1091 4
SEAT-SPRING,VALVE 16007 16007-1117 4
NEEDLE-JET,N23K 16009 16009-1795 4
CAP-STARTER PLUNGER 16012 16012-1051 4
CAP-STARTER PLUNGER 16012A 16012-1052 4
SCREW-PILOT AIR 16014 16014-1064 4
PLUNGER,STARTER 16016 16016-1061 4
VALVE-FLOAT 16030 16030-1007 4
SEAT-VALVE,FLOAT 16030A 16030-1072 4
FLOAT 16031 16031-1070 4
JET-AIR,LEAK 16035 16035-1055 4
CLAMP,FLOAT VALVE 16044 16044-007 4
VALVE,VACUUM 16126 16126-1253 4
FILTER-FUEL,STRAINER 49019 49019-3707 4
SCREW,4X4.4 92009 92009-1549 15
SCREW,4X8 92009A 92009-1550 4
SCREW,DRAIN,M6X0.75 92009B 92009-1551 4
WASHER,PLAIN 92022 92022-1003 4
PIN,FLOAT 92043 92043-1207 4
RING-O,PILOT ADJUST 92055 92055-1002 4
RING-O,VALVE SEAT 92055A 92055-1425 4
RING-O,FLOAT CHAMBER 92055B 92055-1426 4
JET-MAIN,#140 92063A 92063-1013 4 CNUS
JET-MAIN,#135 92063C 92063-1014 4 CA
JET-MAIN,#138 92063D 92063-1015 4 (RACING USE ONLY)
SCREW-PAN-CROS 220 220D0408 4
SCREW-PAN-CROS 220A 220D0414 16
JET-PILOT,#35 92064 92064-1101 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,STARTER PLUNGER 92081 92081-1761 4
SPRING,PILOT AIR SCREW 92144 92144-1349 4
SPRING,VACUUM VALVE 92144A 92144-1538 4
JET-MAIN,#140 92063 92063-1013 4 CA
JET-MAIN,#135 92063B 92063-1014 4 CNUS
JET-MAIN,#142 92063E 92063-1016 4 CA
JET-MAIN,#145 92063F 92063-1017 4 CA
JET-MAIN,#130 92063G 92063-1075 4 CNUS
JET-MAIN,#132 92063H 92063-1076 4 CNUS
