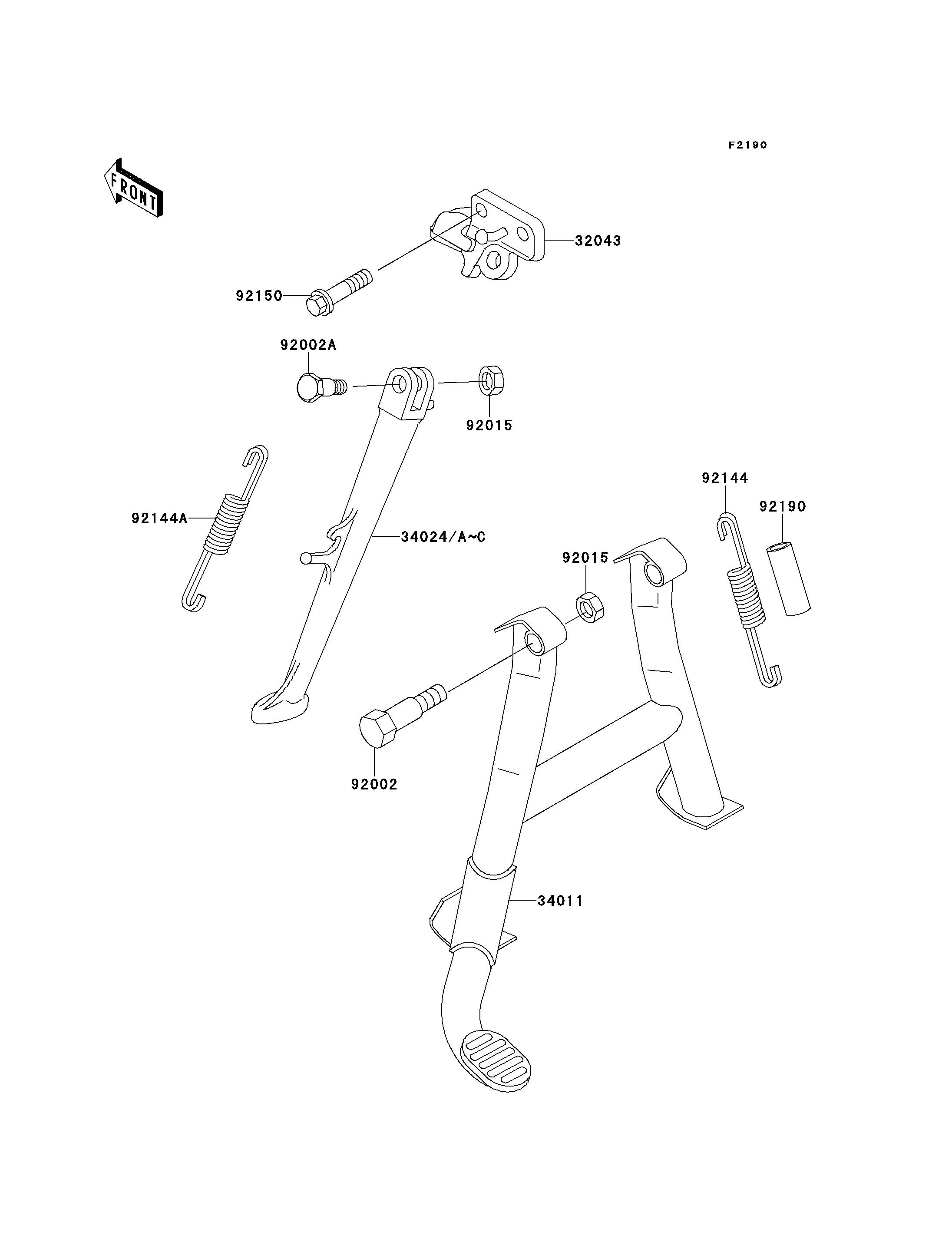

32043
34011
92002
92002A
92015
92015
92144
92144A
92150
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1384 1
STAND-CENTER 34011 34011-1147 1
BOLT,CENTER STAND 92002 92002-1518 2
BOLT,SIDE STAND 92002A 92002-1813 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 3
SPRING,CENTER STAND 92144 92144-1098 1
SPRING,SIDE STAND 92144A 92144-1335 1
BOLT,FLANGED,10X35 92150 92150-1646 2
TUBE,16.5X20.5X55 92190 92190-1462 1
STAND-SIDE,SILVER NO.35 34024B 34024-1269-TX 1 CN
STAND-SIDE,SILVER NO.35 34024C 34024-1269-VZ 1 CAUS
