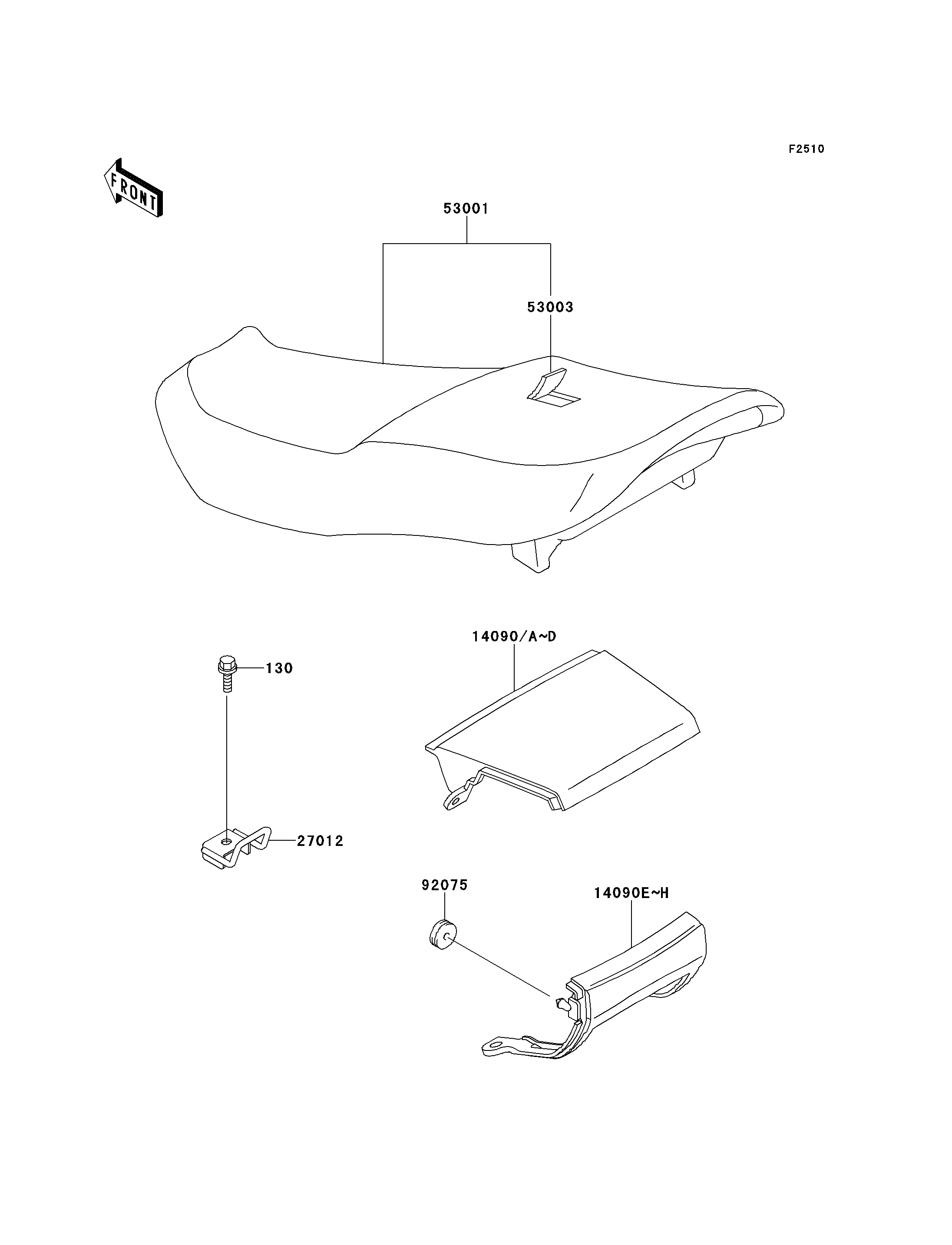

130
14090
14090E
27012
53001
53003
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
COVER,TAIL,UPP,C.P.RED 14090 14090-1254-A5 1
COVER,TAIL,LWR,C.P.RED 14090E 14090-1255-A5 1
HOOK,SEAT 27012 27012-1468 2
SEAT-ASSY,DUAL,BLACK 53001 53001-1689-MA 1
LEATHER,SEAT,BLACK 53003 53003-1270-MA 1
DAMPER 92075 92075-1629 2
COVER,TAIL,UPP,M.GRAYSTONE 14090A 14090-1254-C4 1 CN
COVER,TAIL,LWR,EBONY 14090F 14090-1255-H8 1 CN
