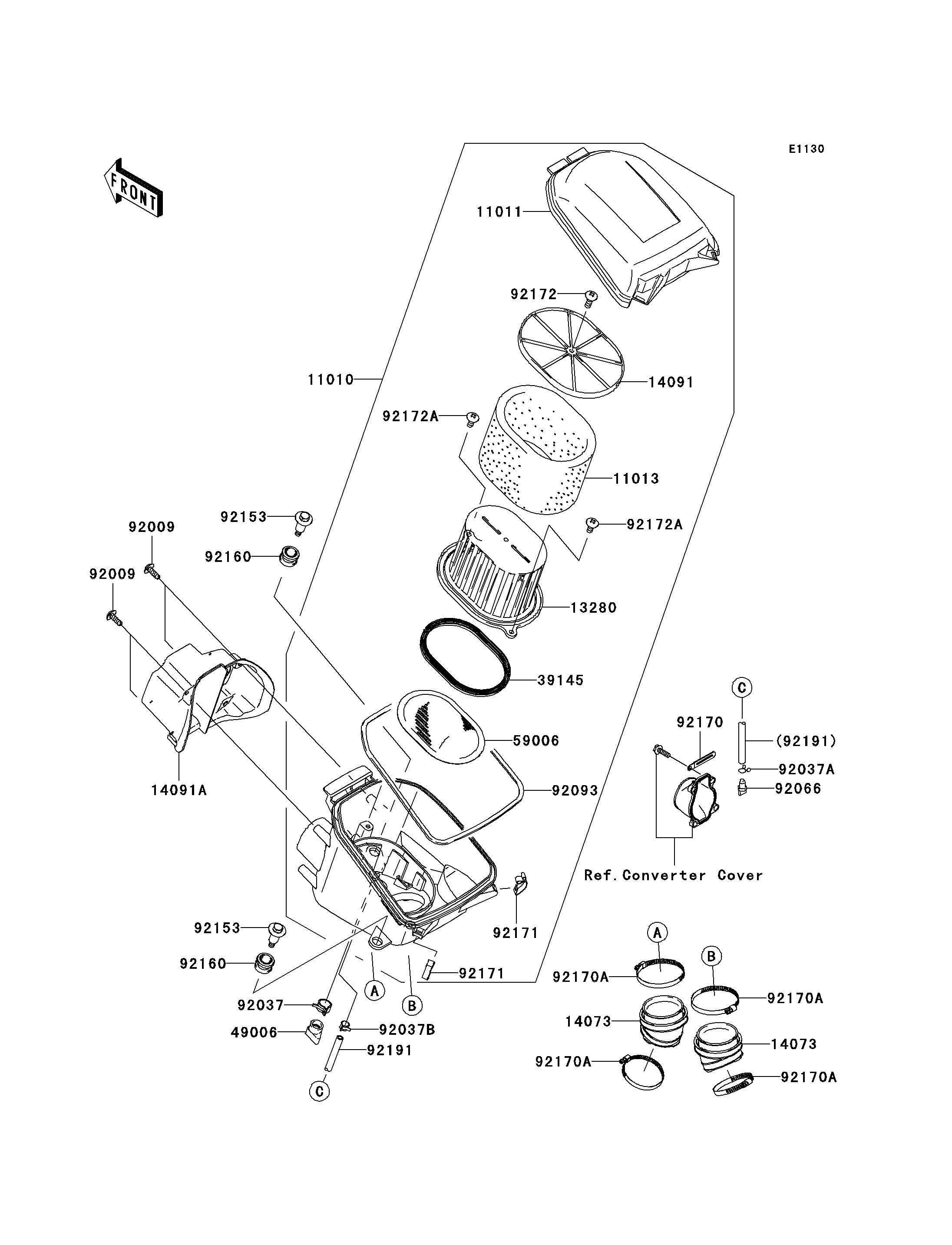

2009 Brute Force® 650 4x4i - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
13280
14073
14073
14091
14091A
39145
49006
59006
92009
92009
92037
92037A
92037B
92066
92093
92153
92153
92160
92160
92170
92170A
92170A
92170A
92170A
92171
92171
92172
92172A
92172A
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR,F.BLACK 11010 11010-0144-6Z 1
CASE-AIR FILTER,UPP,F.BLACK 11011 11011-0017-6Z 1
ELEMENT-AIR FILTER 11013 11013-0021 1
HOLDER 13280 13280-0048 1
DUCT,JOINT 14073 14073-0030 2
COVER,ELEMENT 14091 14091-0163 1
COVER,FR 14091A 14091-0164 1
TRIM-SEAL 39145 39145-0001 1
BOOT 49006 49006-1292 1
ARRESTER-FLAME 59006 59006-0002 1
SCREW,TAPPING 92009 92009-1113 4
CLAMP,HOSE CLIP 92037 92037-1460 1
CLAMP,TUBE 92037A 92037-147 1
CLAMP,TUBE 92037B 92037-1505 1
PLUG,DRAIN 92066 92066-1211 1
SEAL 92093 92093-0083 1
BOLT,FLANGED,6X28.7 92153 92153-1052 2
DAMPER 92160 92160-1594 2
CLAMP 92170 92170-1514 1
CLAMP 92170A 92170-1763 4
CLAMP 92171 92171-0225 2
SCREW,6X18 92172 92172-0130 1
SCREW,6X14 92172A 92172-0131 2
TUBE,7X11X470 92191 92191-1531 1
