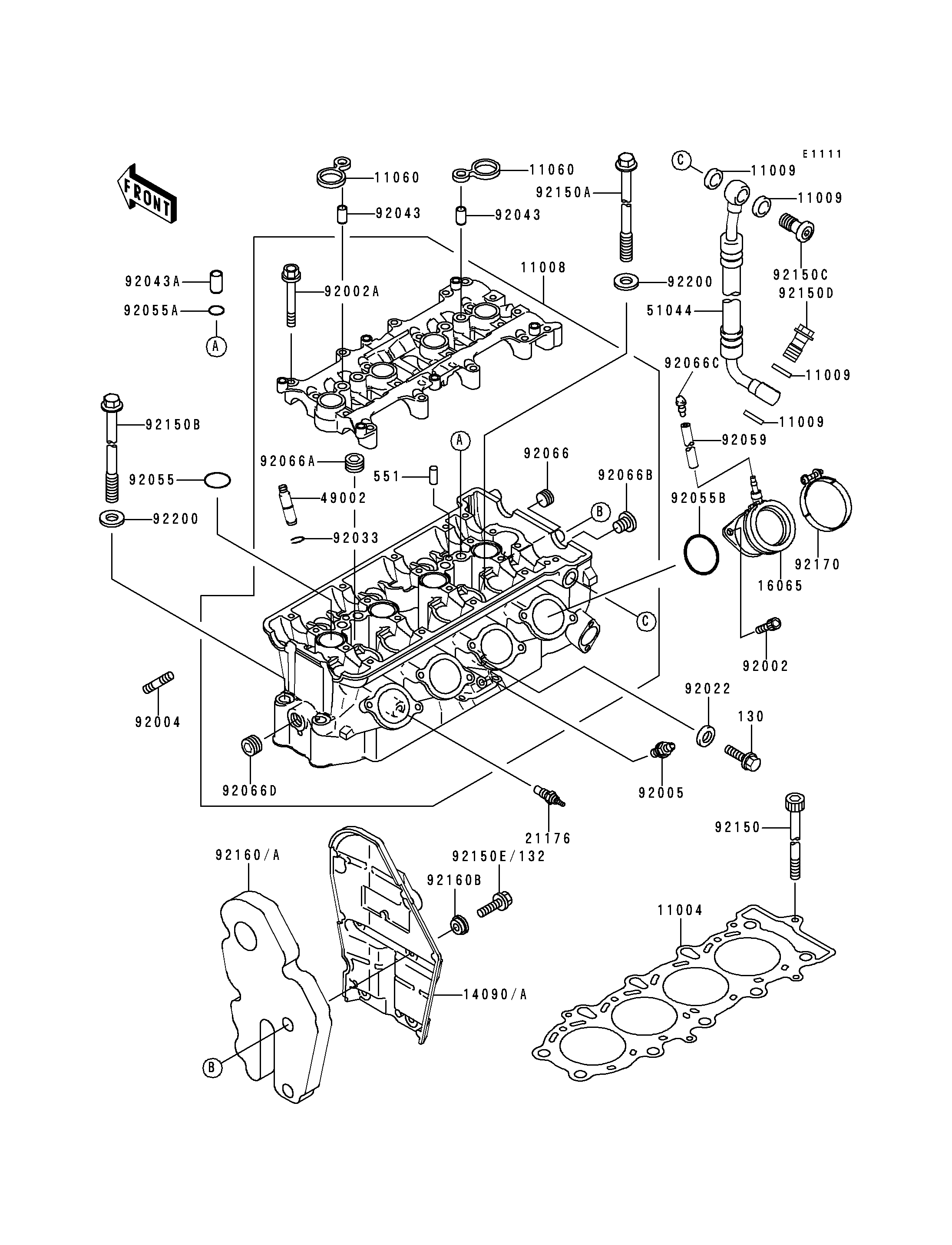

1997 Ninja® ZX™-6R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11004
11008
11008
11009
11009
11009
11009
11009
11009
11009
11009
11060
11060
11060
11060
14090A
14090A
16065
16065
21176
21176
49002
49002
51044
51044
92002
92002
92002A
92002A
92004
92004
92005
92005
92022
92022
92033
92033
92043
92043
92043
92043
92043A
92043A
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92066A
92066A
92066B
92066B
92066D
92066D
92150
92150
92150A
92150A
92150B
92150B
92150C
92150C
92150D
92150D
92150E
92150E
92160A
92160A
92160B
92160B
92170
92170
92200
92200
92200
92200
130
130
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1303 1
HEAD-COMP-CYLINDER 11008 11008-1293 1
GASKET,14X19.5X1.4 11009 11009-1461 4
GASKET,BEARING CAP 11060 11060-1861 4
COVER 14090A 14090-1657 1
HOLDER-CARBURETOR 16065 16065-1305 4
SENSOR,WATER 21176 21176-1054 1
GUIDE-VALVE 49002 49002-1128 AR
TUBE-ASSY,OIL 51044 51044-1179 1
BOLT,SOCKET,6X14 92002 92002-1175 8
BOLT,6X40 92002A 92002-1756 20
STUD,8X18 92004 92004-1186 8
FITTING 92005 92005-1273 1
WASHER,6.2X11X1 92022 92022-304 1
RING-SNAP 92033 92033-1247 16
PIN,6.2X8X14 92043 92043-1263 4
PIN,8.2X10X14 92043A 92043-1264 4
RING-O,25.5X2 92055 92055-1403 4
RING-O,11.5X1.5 92055A 92055-1469 4
RING-O,42X1.9 92055B 92055-1536 4
PLUG,OIL LINE,1/8X7 92066 92066-1227 1
PLUG 92066A 92066-1253 4
PLUG 92066B 92066-1260 1
PLUG 92066D 92066-1420 1
BOLT,SOCKET,6X92 92150 92150-1928 1
BOLT,L=148 92150A 92150-1934 8
BOLT,L=140 92150B 92150-1935 2
BOLT 92150C 92150-1944 1
BOLT 92150D 92150-1945 1
BOLT 92150E 92150-1981 6
DAMPER 92160A 92160-1680 1
DAMPER 92160B 92160-1681 6
CLAMP 92170 92170-1908 4
WASHER,10.5X19X2.3 92200 92200-1042 10
BOLT-FLANGED 130 130Y0610 1
PIN-DOWEL,6X12 551 551A0612 2
TUBE,4X9X100 92059 92059-1058 1
PLUG 92066C 92066-1347 1
