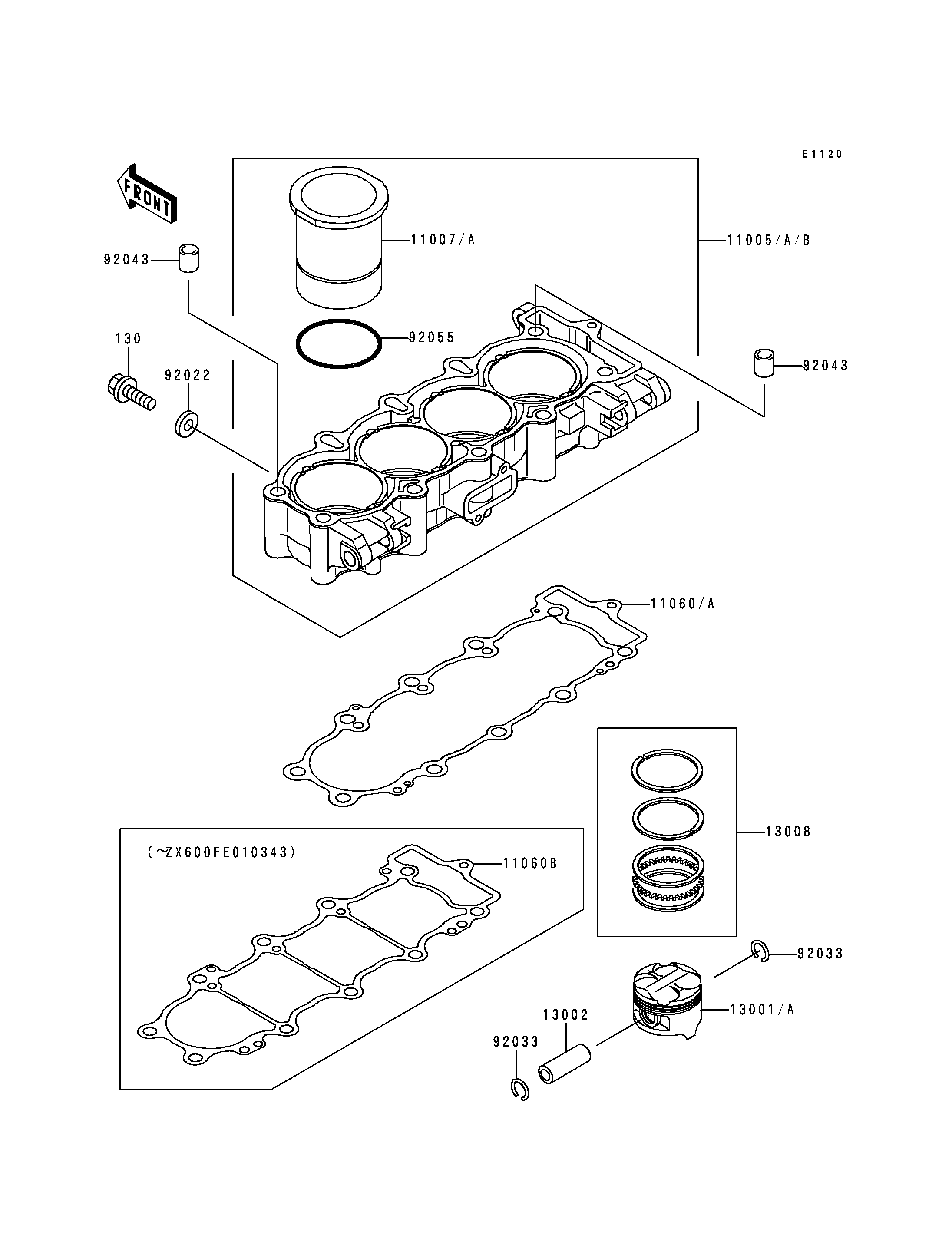

130
11005
11005B
11007
11007A
11060A
11060B
13001
13002
13008
92022
92033
92033
92043
92043
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 2
CYLINDER-ENGINE 11005 11005-1796 1 ( - ZX600FE010343)
CYLINDER-ENGINE 11005B 11005-1798 1 ( ZX600FE010344 - )
LINER-CYLINDER 11007 11007-1138 4 ( - ZX600FE010343)
LINER-CYLINDER 11007A 11007-1142 4 ( ZX600FE010344 - )
GASKET,CYLINDER BASE 11060A 11060-1668 1 ( ZX600FE010344 - )
GASKET,CYLINDER BASE 11060B 11060-1701 1 ( - ZX600FE010343)
PISTON-ENGINE,STD 13001 13001-1432 4
PIN-PISTON 13002 13002-1105 4
RING-SET-PISTON,STD 13008 13008-1161 4
WASHER,6.2X11X1 92022 92022-304 2
RING-SNAP,PISTON PIN 92033 92033-1161 8
PIN,10.1X12X14 92043 92043-4009 2
RING-O,72X2.0 92055 92055-1534 4
