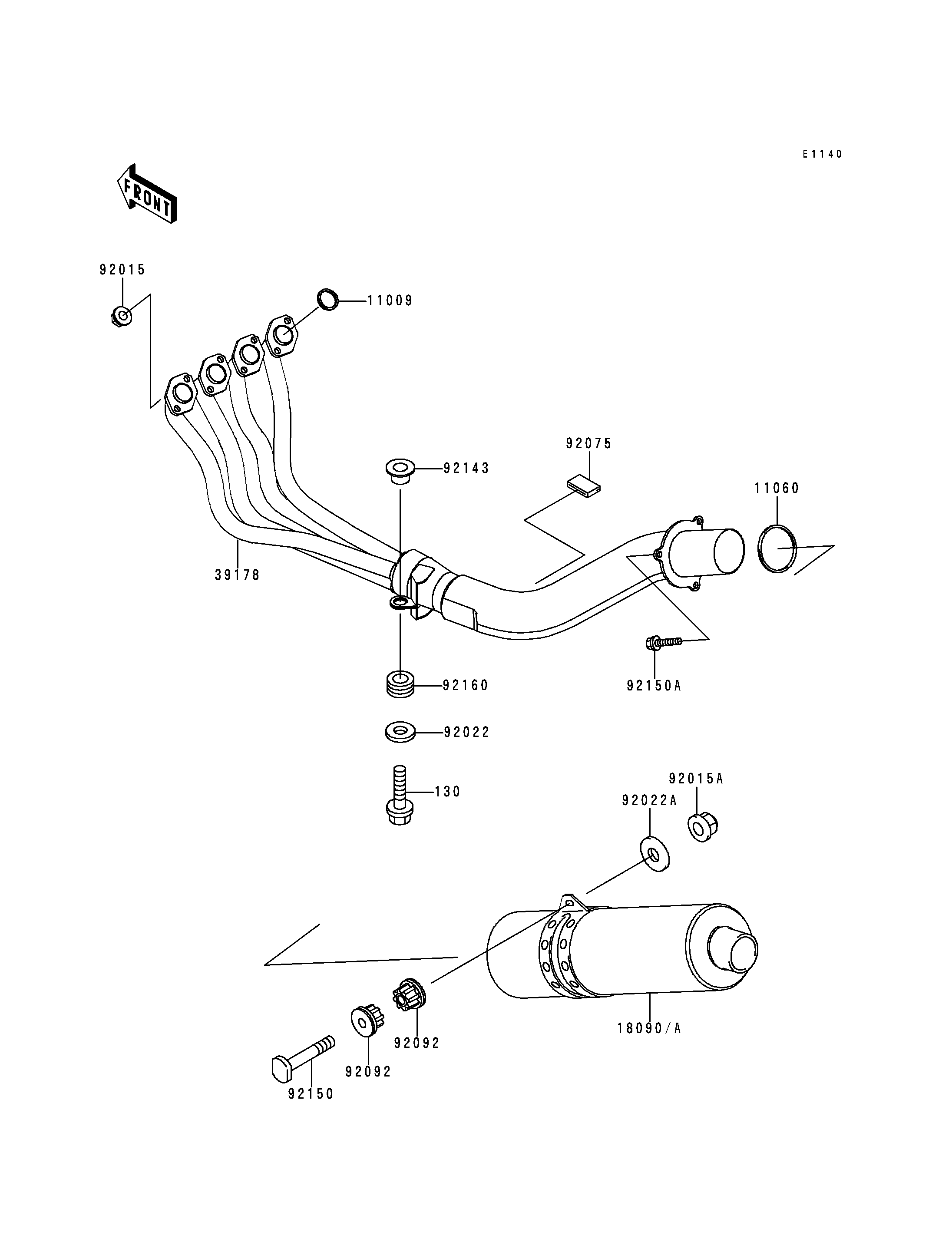

130
11009
11060
18090A
39178
92015
92015A
92022
92022A
92075
92092
92092
92143
92150
92150A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130S0835 1
GASKET,EXHAUST PIPE HOLDER 11009 11009-1856 4
GASKET,MUFFLER CONNECTING 11060 11060-1213 1
BODY-COMP-MUFFLER 18090A 18090-1488 1
MANIFOLD-COMP-EXHAUST 39178 39178-1253 1
NUT,CAP,8MM,BLACK 92015 92015-1174 8
NUT,10MM 92015A 92015-1649 1
WASHER,9X24X3.2 92022 92022-1295 1
WASHER,10.5X26X2.3 92022A 92022-246 1
DAMPER 92075 92075-1446 1
BUSHING-RUBBER,MUFFLER 92092 92092-1013 2
COLLAR 92143 92143-1709 1
BOLT,10X55 92150 92150-1792 1
BOLT,8X25 92150A 92150-1914 3
DAMPER,MUFFLER 92160 92160-1543 1
