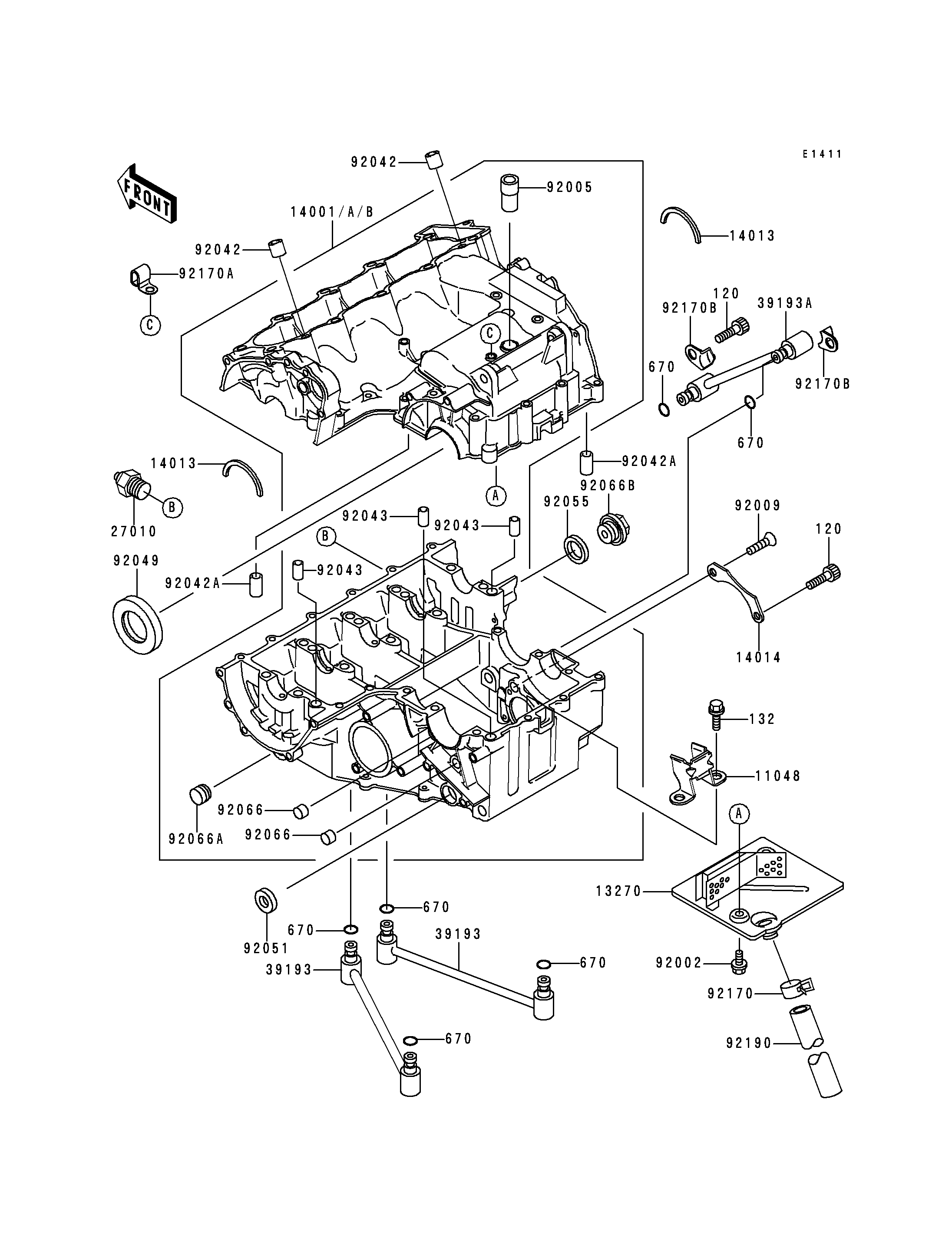

1995 Ninja® ZX™-6R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
670
670
670
670
670
670
11048
13270
14001
14001B
14013
14013
14014
27010
39193
39193
39193A
92002
92005
92009
92042
92042
92042A
92042A
92043
92043
92043
92049
92051
92055
92066
92066
92066A
92066B
92170
92170A
92170B
92170B
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120P0616 3
BOLT-FLANGED-SMALL 132 132H0612 2
O RING 670 670D1505 6
BRACKET 11048 11048-1851 1
PLATE,BREATHER 13270 13270-1349 1
SET-CRANKCASE 14001 14001-1102 1 ( - ZX600FE010343)
SET-CRANKCASE 14001B 14001-1210 1 ( ZX600FE010344 - )
RING-POSITION 14013 14013-004 2
PLATE-POSITION 14014 14014-1123 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE-OIL,MAIN-INPUT 39193 39193-1019 2
PIPE-OIL 39193A 39193-1020 1
BOLT,6X10 92002 92002-1449 2
FITTING,BREATHER 92005 92005-1238 1
SCREW,6X16 92009 92009-1360 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,DOWEL,6X16 92042A 92042-016 2
PIN 92043 92043-1506 3
SEAL-OIL,TC32528 92049 92049-1307 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-1146 1
PLUG 92066 92066-1110 2
PLUG 92066A 92066-1252 1
PLUG 92066B 92066-1394 1
CLAMP 92170 92170-1167 1
CLAMP 92170A 92170-1514 1
CLAMP 92170B 92170-1578 2
TUBE,9X12X180 92190 92190-1580 1
