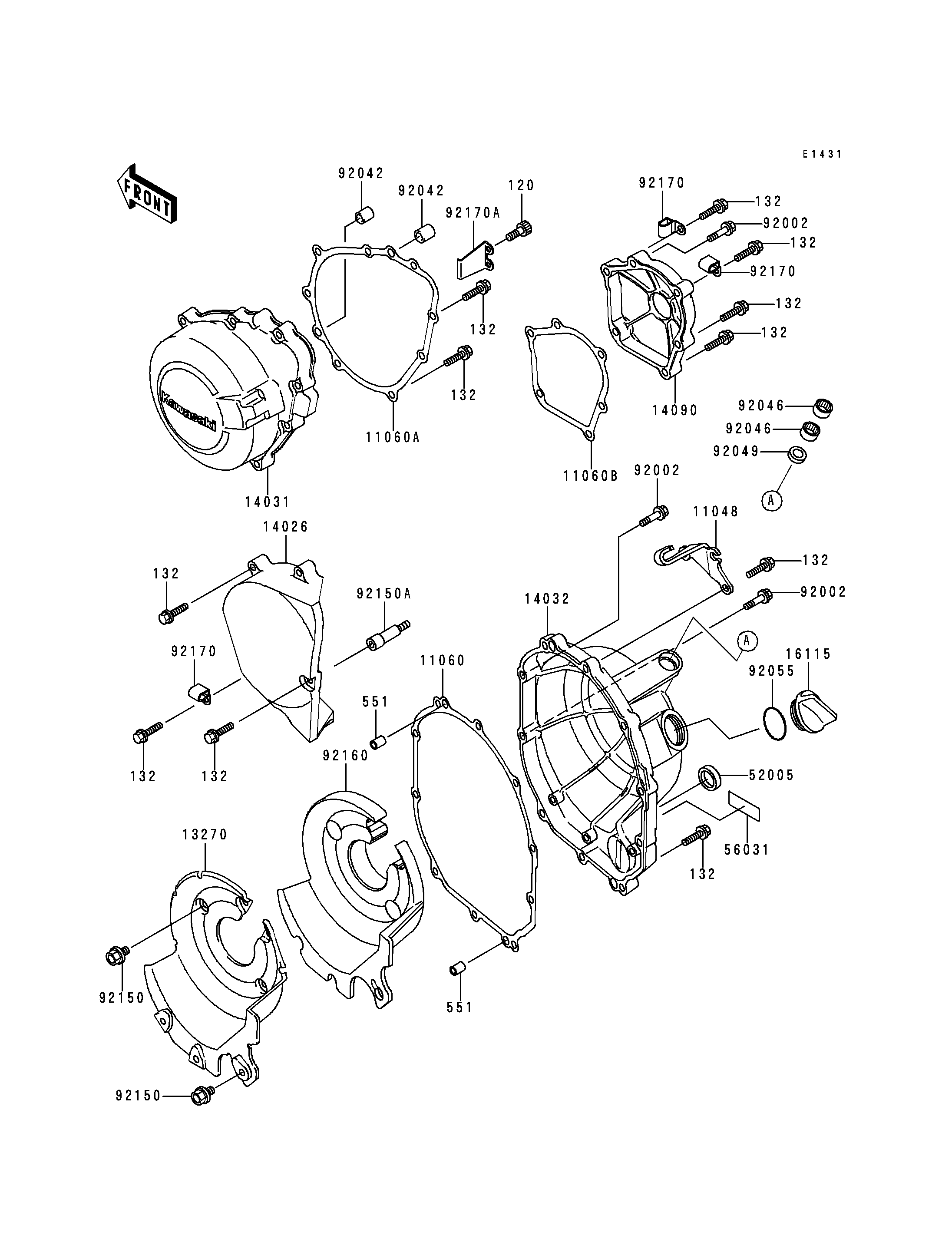

1997 Ninja® ZX™-6R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
132
132
132
132
132
132
132
132
132
132
132
551
551
11048
11060
11060A
11060B
13270
14026
14031
14032
14090
16115
52005
56031
92002
92002
92002
92042
92042
92046
92046
92049
92055
92150
92150
92150A
92160
92170
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0512 2
BOLT-FLANGED-SMALL 132 132J0630 26
PIN-DOWEL,8X14 551 551A0814 2
BRACKET,CLUTCH COVER 11048 11048-1852 1
GASKET 11060 11060-1672 1
GASKET,GENERATOR COVER 11060A 11060-1673 1
GASKET,PULSING COVER 11060B 11060-1674 1
PLATE,CLUTCH COVER 13270 13270-1350 1
COVER-CHAIN 14026 14026-1234 1
COVER-GENERATOR 14031 14031-1307 1
COVER-CLUTCH 14032 14032-1400 1
COVER,PULSING 14090 14090-1521 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1057 1
LABEL-MANUAL,OIL CAPACITY 56031 56031-1895 1
BOLT,6X30 92002 92002-1534 3
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
RING-O,31.5X2.6 92055 92055-049 1
BOLT,5X8 92150 92150-1406 7
BOLT 92150A 92150-1889 1
DAMPER,CLUTCH COVER 92160 92160-1554 1
CLAMP 92170 92170-1577 3
CLAMP 92170A 92170-1579 1
