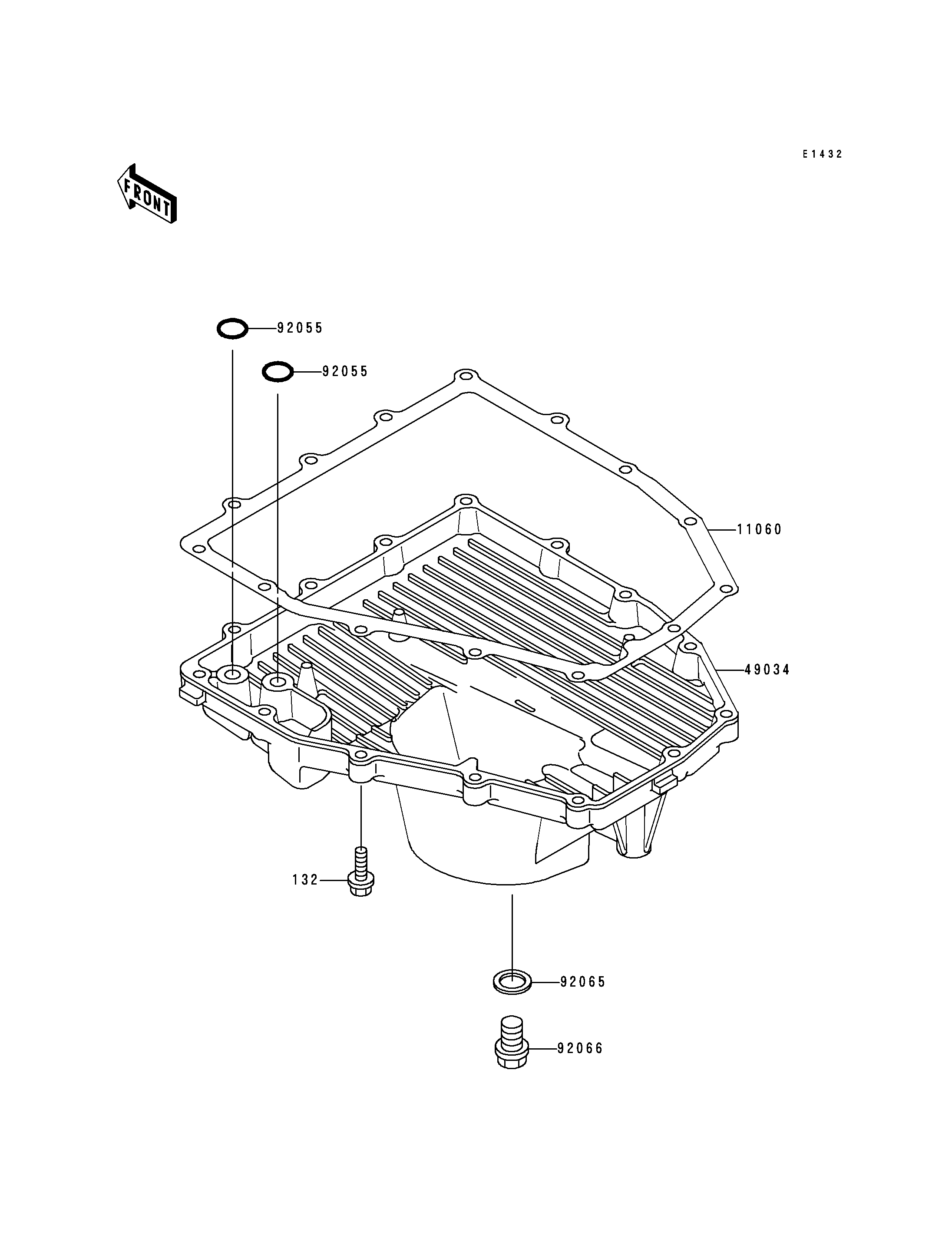

1996 Ninja® ZX-6R - Breather Cover/Oil Pan

132
11060
49034
92055
92055
92065
92066
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0630 14
GASKET,OIL PAN 11060 11060-1671 1
PAN-OIL 49034 49034-1111 1
RING-O,10X1.5 92055 92055-061 2
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
